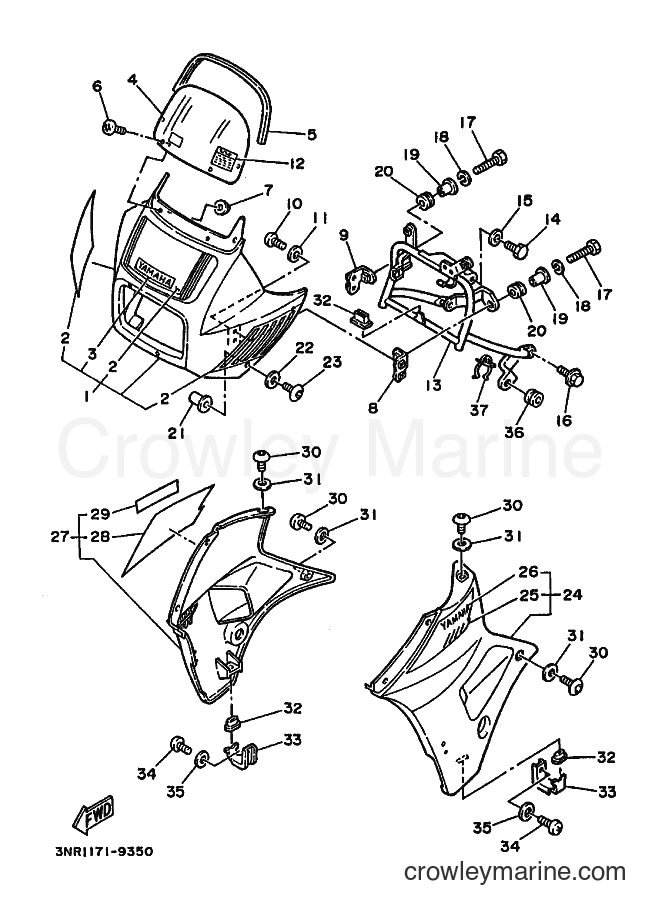

1989 Dirt Bike TDR250 - TDR250 (3NR1) [010] COWLING 1 diagram
![Yamaha Motors TDR250 (3NR1) [010] - COWLING 1](https://cdn.crowleymarine.com/yamaha/IejLAPbb.png)
1
Yamaha Motors
BODY, front upper 23CK-W283J-00
Required: 1
BODY, front upper 2
Price unavailable
2
Yamaha Motors
.GRAPHIC SET, cowling2YK-28390-00
Required: 1
.GRAPHIC SET, cowling
Price unavailable
-10%
3
Yamaha Motors
YAMAHA EMBLEM99241-00080-00
Required: 1
.EMBLEM, yamaha
Supersedes: 99231-00020-00
$13.94
You save $1.55
4
Yamaha Motors
SCREEN3NR-2837U-00
Required: 1
SCREEN
Price unavailable
-10%
5
Yamaha Motors
Mold36Y-28348-00-00
Required: 1
MOLE 1
Supersedes: 29L-28345-00-00
$31.49
You save $3.50
-10%
6
Yamaha Motors
ROUND HEAD SCREW90150-05020-00
Required: 4
SCREW, round head
$9.44
You save $1.05
-10%
7
Yamaha Motors
Flange Nut95707-05500-00
Required: 4
NUT, flange
Supersedes: 95706-05500-00
$8.54
You save $0.95
8
Yamaha Motors
STAY, guide 12YK-2831E-00
Required: 1
STAY, guide 1
Price unavailable
9
Yamaha Motors
STAY, guide 22YK-2831F-00
Required: 1
STAY, guide 2
Price unavailable
-10%
10
Yamaha Motors
98516-05012-0098506-05012-00
Required: 4
SCREW, pan head
No longer availableSearch Nationwide Inventory
$1.13
You save $0.13
11
Yamaha Motors
Plate Washer92907-05600-00
Required: 4
WASHER, plate
Supersedes: 92906-05600-00
$1.98
-10%
12
Yamaha Motors
Caution Label3CK-2835Y-00-00
Required: 1
LABEL, caution
No longer availableSearch Nationwide Inventory
$10.79
You save $1.20
13
Yamaha Motors
STAY 12YK-28356-00
Required: 1
STAY 1
Price unavailable
-10%
$3.65
You save $0.41
-10%
15
Yamaha Motors
Plate Washer92907-06600-00
Required: 1
WASHER, plate
Supersedes: 92906-06600-00
$0.90
You save $0.10
-15%
16
Yamaha Motors
Flange Bolt95817-06012-00
Required: 2
BOLT, flange
Supersedes: 95811-06012-00
In stock
Only 2 remaining
$1.66
You save $0.29
-10%
No longer availableSearch Nationwide Inventory
$1.04
You save $0.11
-50%
18
Yamaha Motors
Spring Washer92907-06100-00
Required: 2
WASHER, spring
Supersedes: 92906-06100-00
In stock
Only 1 remaining
$0.65
You save $0.65
-10%
$9.44
You save $1.05
-10%
$8.54
You save $0.95
-20%
In stock
Only 5 remaining
$5.99
You save $1.50
-10%
22
Yamaha Motors
Plate Washer90202-06113-00
Required: 4
WASHER, plate
$4.94
You save $0.55
-20%
23
Yamaha Motors
SCREW (3YF)90149-05299-00
Required: 4
SCREW
Supersedes: 90149-05224-00
In stock
5+ in stock
$3.56
You save $0.89
24
Yamaha Motors
PANEL ASSEMBLY 13NR-Y283U-00
Required: 1
PANEL ASSEMBLY 1
Price unavailable
25
Yamaha Motors
.GRAPHIC 72YK-2839A-00
Required: 1
.GRAPHIC 7
Price unavailable
-10%
26
Yamaha Motors
YAMAHA EMBLEM99241-00080-00
Required: 1
.EMBLEM, yamaha
Supersedes: 99231-00020-00
$13.94
You save $1.55
27
Yamaha Motors
PANEL ASSEMBLY 23NR-Y283V-00
Required: 1
PANEL ASSEMBLY 2
Price unavailable
28
Yamaha Motors
.GRAPHIC 82YK-2839E-00
Required: 1
.GRAPHIC 8
Price unavailable
-10%
29
Yamaha Motors
YAMAHA EMBLEM99241-00080-00
Required: 1
.EMBLEM, yamaha
Supersedes: 99231-00020-00
$13.94
You save $1.55
-10%
30
Yamaha Motors
BOLT,HEX. SOCKET BUTTON90111-05059-00
Required: 4
BOLT, hexagon socket head
Supersedes: 90110-05079-00
$2.52
You save $0.28
-10%
31
Yamaha Motors
Plate Washer90202-06113-00
Required: 4
WASHER, plate
$4.94
You save $0.55
-10%
$9.89
You save $1.10
33
Yamaha Motors
STAY, leg shield2YK-28322-00
Required: 2
STAY, leg shield
Price unavailable
-10%
34
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, pan head
Supersedes: 92501-06012-00
$3.69
You save $0.41
-15%
35
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, plate
Supersedes: 92901-06600-00
In stock
5+ in stock
$2.51
You save $0.44
-10%
No longer availableSearch Nationwide Inventory
$4.94
You save $0.55
-10%
No longer availableSearch Nationwide Inventory
$1.71
You save $0.19
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
