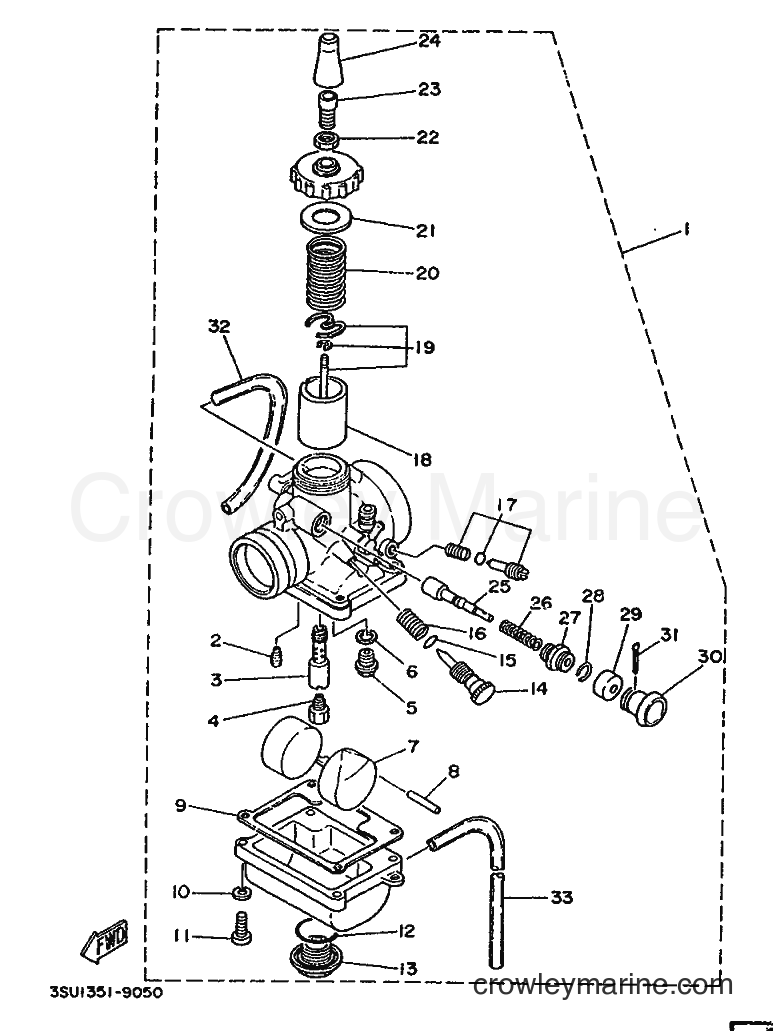

1989 Dirt Bike TY125 - TY125 (3SU1) [999] CARBURETOR diagram
![Yamaha Motors TY125 (3SU1) [999] - CARBURETOR](https://cdn.crowleymarine.com/yamaha/PvNSF1ER.png)
1
Yamaha Motors
CARBURETOR ASSY 11K6-14101-00
Required: 1
CARBURETOR ASSY 1
Price unavailable
-10%
2
Yamaha Motors
PILOT JET (#25)260-14142-25-00
Required: 1
. JET, PILOT (# 25)
$9.89
You save $1.10
-10%
3
Yamaha Motors
Main Nozzle558-14141-30-00
Required: 1
. NOZZLE, MAIN
No longer availableSearch Nationwide Inventory
$14.84
You save $1.65
-10%
4
Yamaha Motors
MAIN JET #100137-14143-20-00
Required: 1
. JET, MAIN (#100)
$7.64
You save $0.85
-10%
4
Yamaha Motors
MAIN JET #110137-14143-22-A0
Required: 1
. JET, MAIN (#110)
No longer availableSearch Nationwide Inventory
$8.99
You save $1.00
-10%
4
Yamaha Motors
MAIN JET #90137-14143-18-00
Required: 1
. JET, MAIN (# 90)
No longer availableSearch Nationwide Inventory
$3.69
You save $0.41
-10%
5
Yamaha Motors
NEEDLE VALVE ASSEMBLY353-14190-18-00
Required: 1
. NEEDLE VALVE ASSY
$39.59
You save $4.40
-10%
6
Yamaha Motors
Needle Valve Washer127-14195-00-00
Required: 1
. WASHER, NEEDLE VALVE
$7.64
You save $0.85
-10%
No longer availableSearch Nationwide Inventory
$25.19
You save $2.80
-10%
$6.29
You save $0.70
-10%
9
Yamaha Motors
Float Chamber Gasket304-14184-00-00
Required: 1
. GASKET, FLOAT CHAMBER
$13.94
You save $1.55
-15%
10
Yamaha Motors
Spring Washer92990-04100-00
Required: 4
. WASHER, SPRING
Supersedes: 92901-04100-00
In stock
5+ in stock
$0.81
You save $0.14
-10%
11
Yamaha Motors
Pan Head Screw98517-04016-00
Required: 4
. SCREW, PAN HEAD
Supersedes: 98511-04016-00
$8.54
You save $0.95
-10%
$9.89
You save $1.10
-10%
13
Yamaha Motors
Screw Plug500-14115-00-00
Required: 1
. PLUG, SCREW
$29.69
You save $3.30
-10%
14
Yamaha Motors
Throttle Screw493-14122-00-00
Required: 1
. SCREW, THROTTLE
No longer availableSearch Nationwide Inventory
$44.09
You save $4.90
-10%
$7.64
You save $0.85
-10%
16
Yamaha Motors
Throttle Stop Spring493-14133-00-00
Required: 1
. SPRING, THROTTLE STOP
No longer availableSearch Nationwide Inventory
$11.24
You save $1.25
-10%
17
Yamaha Motors
Air Screw Kit10W-14104-00-00
Required: 1
. AIR SCREW SET
$14.84
You save $1.65
-10%
18
Yamaha Motors
THROTTLE VALVE304-14112-30-00
Required: 1
. VALVE, THROTTLE 1
No longer availableSearch Nationwide Inventory
$15.07
You save $1.67
-10%
19
Yamaha Motors
Needle18L-1490J-00-00
Required: 1
. NEEDLE SET
$28.79
You save $3.20
-10%
20
Yamaha Motors
THROTTLE VALVE SPRING3X3-14131-00-00
Required: 1
. SPRING, THROTTLE VALVE
$13.94
You save $1.55
-10%
$5.39
You save $0.60
-10%
22
Yamaha Motors
CABLE ADJUSTMENT NUT802-14161-00-00
Required: 1
. NUT, CABLE ADJUSTING
$7.64
You save $0.85
-10%
23
Yamaha Motors
SCREW,CABLE ADJ360-14124-20-00
Required: 1
. SCREW, CABLE ADJUSTING
No longer availableSearch Nationwide Inventory
$11.24
You save $1.25
-10%
No longer availableSearch Nationwide Inventory
$3.56
You save $0.40
-10%
25
Yamaha Motors
STARTER PLUNGER304-14171-00-00
Required: 1
. PLUNGER, STARTER
No longer availableSearch Nationwide Inventory
$37.79
You save $4.20
-10%
26
Yamaha Motors
Plunger Spring156-14135-00-00
Required: 1
. COIL, SPRING
$8.54
You save $0.95
-10%
27
Yamaha Motors
PLUNGER CAP152-14174-00-00
Required: 1
. CAP, PLUNGER
$32.39
You save $3.60
-10%
28
Yamaha Motors
PLUNGER CLIP152-14138-00-00
Required: 1
. CLIP, PLUNGER
No longer availableSearch Nationwide Inventory
$7.64
You save $0.85
-10%
29
Yamaha Motors
PLUNGER CAP COVER132-14173-00-00
Required: 1
. COVER, PLUNGER CAP
$9.89
You save $1.10
-10%
$40.49
You save $4.50
-10%
31
Yamaha Motors
Cotter Pin91490-16020-00
Required: 1
. PIN, COTTER
Supersedes: 91401-16015-00
$6.29
You save $0.70
-10%
No longer availableSearch Nationwide Inventory
$4.36
You save $0.48
-10%
33
Yamaha Motors
Air Vent Pipe23F-14197-00-00
Required: 1
. PIPE, OVER FLOW 1
Supersedes: 183-14196-00-00
$27.89
You save $3.10
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
