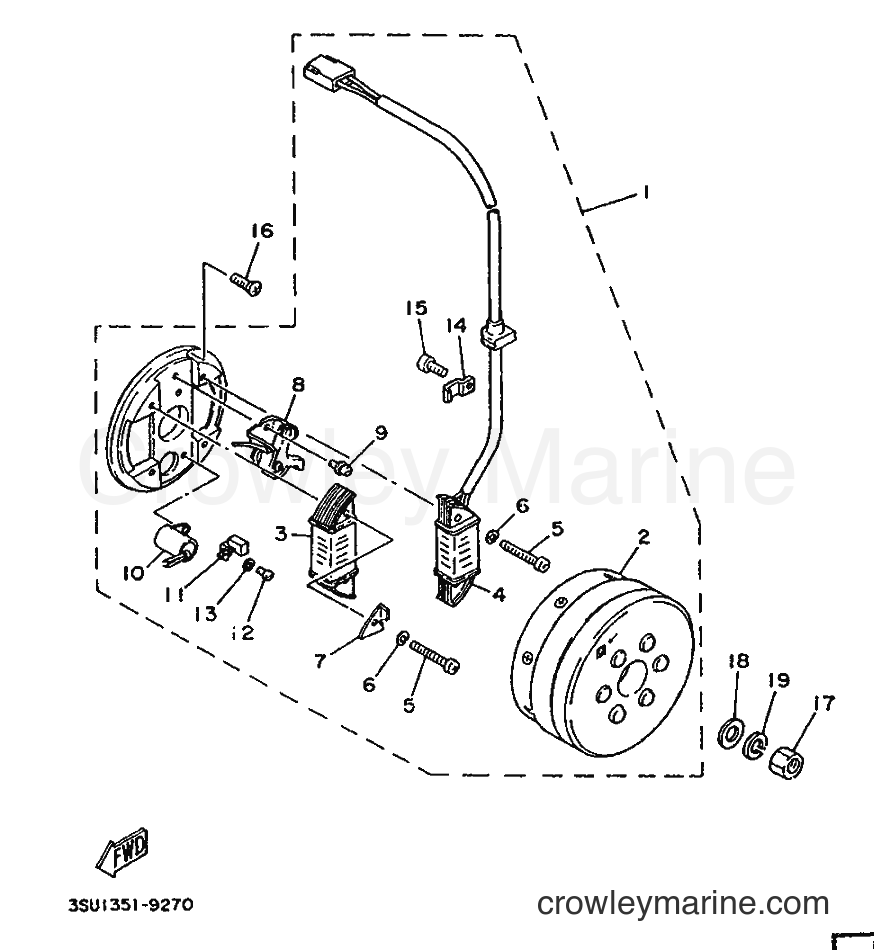

1989 Dirt Bike TY125 - TY125 (3SU1) [999] GENERATRICE diagram
![Yamaha Motors TY125 (3SU1) [999] - GENERATRICE](https://cdn.crowleymarine.com/yamaha/NWoc8y64.png)
1
Yamaha Motors
FLYWHEEL MAGNETO ASSY539-81300-10
Required: 1
FLYWHEEL MAGNETO ASSY
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$286.19
You save $31.80
-10%
3
Yamaha Motors
Source Coil461-81312-10-00
Required: 1
. COIL, SOURCE
No longer availableSearch Nationwide Inventory
$204.29
You save $22.70
4
Yamaha Motors
. COIL, LIGHTING 1539-81313-10
Required: 1
. COIL, LIGHTING 1
Price unavailable
-10%
5
Yamaha Motors
Pan Head Screw98507-05035-00
Required: 4
. SCREW, PAN HEAD
Supersedes: 98501-05035-00
$8.54
You save $0.95
-15%
6
Yamaha Motors
Spring Washer92990-05100-00
Required: 4
. WASHER, SPRING
Supersedes: 92901-05100-00
$0.30
You save $0.05
-10%
7
Yamaha Motors
PLATE,TIMING434-81332-10-00
Required: 1
. PLATE, TIMING
No longer availableSearch Nationwide Inventory
$1.24
You save $0.14
-10%
8
Yamaha Motors
Contact Breaker Assembly434-81321-10-00
Required: 1
. CONTACT BREAKER ASSY
No longer availableSearch Nationwide Inventory
$51.29
You save $5.70
-10%
9
Yamaha Motors
Pan Head Screw110-81346-21-00
Required: 1
. SCREW, PAN HEAD
$5.39
You save $0.60
-10%
10
Yamaha Motors
Condenser207-81326-90-00
Required: 1
. CONDENSER 2
No longer availableSearch Nationwide Inventory
$23.39
You save $2.60
-10%
No longer availableSearch Nationwide Inventory
$6.29
You save $0.70
-10%
12
Yamaha Motors
Screw98580-04008-00
Required: 1
. SCREW, PAN HEAD
Supersedes: 98501-04008-00
$5.84
You save $0.65
-15%
13
Yamaha Motors
Spring Washer92990-04100-00
Required: 1
. WASHER, SPRING
Supersedes: 92901-04100-00
In stock
5+ in stock
$0.81
You save $0.14
-10%
No longer availableSearch Nationwide Inventory
$8.54
You save $0.95
-10%
15
Yamaha Motors
Screw98580-04008-00
Required: 1
. SCREW, PAN HEAD
Supersedes: 98501-04008-00
$5.84
You save $0.65
-10%
16
Yamaha Motors
98701-06012-0092701-06012-00
Required: 2
SCREW, FLAT HEAD
No longer availableSearch Nationwide Inventory
$0.85
You save $0.09
-10%
$12.14
You save $1.35
-10%
18
Yamaha Motors
Plate Washer90201-12593-00
Required: 1
WASHER, PLATE
$9.44
You save $1.05
-10%
19
Yamaha Motors
Spring Washer92990-12100-00
Required: 1
WASHER, SPRING
Supersedes: 92901-12100-00
$8.54
You save $0.95
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
