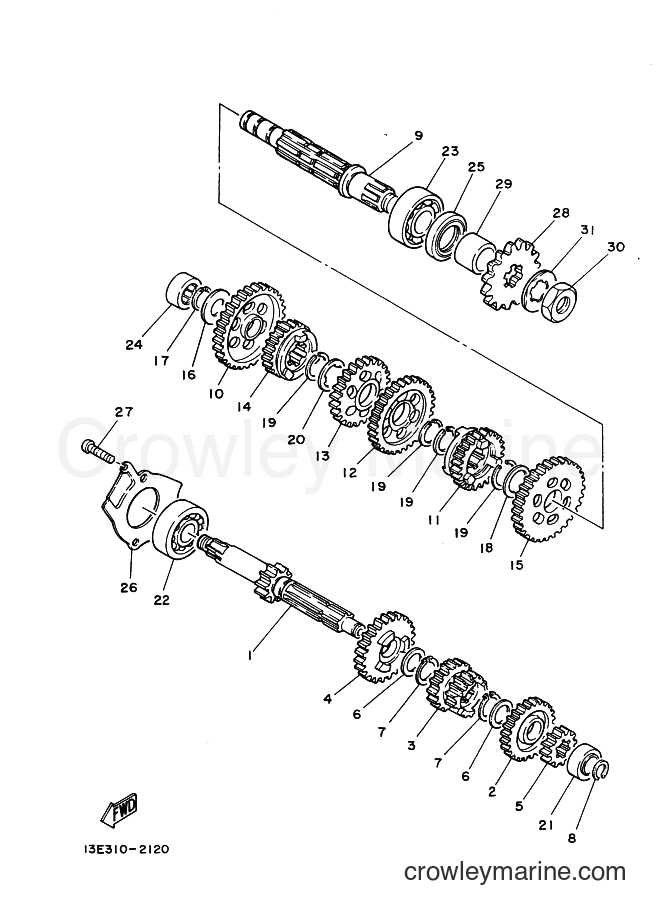

1989 Dirt Bike TY125 - TY125 (3SU1) [999] TRANSMISSION diagram
![Yamaha Motors TY125 (3SU1) [999] - TRANSMISSION](https://cdn.crowleymarine.com/yamaha/6KgyEHjH.png)
-10%
1
Yamaha Motors
Main Axle525-17411-00-00
Required: 1
AXLE, MAIN (11T)
No longer availableSearch Nationwide Inventory
$33.07
You save $3.67
-10%
2
Yamaha Motors
5th Pinion Gear525-17151-00-00
Required: 1
GEAR, 5TH PINION (23T)
No longer availableSearch Nationwide Inventory
$26.44
You save $2.94
-10%
3
Yamaha Motors
3rd Pinion Gear525-17131-00-00
Required: 1
GEAR, 3RD/4TH PINION (16T/19T)
No longer availableSearch Nationwide Inventory
$31.84
You save $3.54
-10%
4
Yamaha Motors
6th Pinion Gear525-17161-00-00
Required: 1
GEAR, 6TH PINION (26T)
No longer availableSearch Nationwide Inventory
$10.44
You save $1.16
-10%
5
Yamaha Motors
2nd Pinion Gear525-17121-00-00
Required: 1
GEAR, 2ND PINION (13T)
No longer availableSearch Nationwide Inventory
$9.54
You save $1.06
-10%
6
Yamaha Motors
Plate Washer90201-17545-00
Required: 2
WASHER, PLATE
$8.54
You save $0.95
-10%
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$0.63
You save $0.07
-10%
No longer availableSearch Nationwide Inventory
$42.34
You save $4.70
-10%
10
Yamaha Motors
1st Gear Wheel525-17211-00-00
Required: 1
GEAR, 1ST WHEEL (34T)
No longer availableSearch Nationwide Inventory
$26.44
You save $2.94
-10%
11
Yamaha Motors
5th Wheel Gear525-17251-00-00
Required: 1
GEAR, 5TH WHEEL (23T)
No longer availableSearch Nationwide Inventory
$14.87
You save $1.65
-10%
12
Yamaha Motors
3RD WHEEL GEAR525-17231-01-00
Required: 1
GEAR, 3RD WHEEL (30T)
No longer availableSearch Nationwide Inventory
$22.54
You save $2.50
-10%
13
Yamaha Motors
4TH WHEEL GEAR525-17241-01-00
Required: 1
GEAR, 4TH WHEEL (27T)
No longer availableSearch Nationwide Inventory
$16.02
You save $1.78
-10%
14
Yamaha Motors
6th Wheel Gear525-17261-00-00
Required: 1
GEAR, 6TH WHEEL (20T)
No longer availableSearch Nationwide Inventory
$24.79
You save $2.75
-10%
15
Yamaha Motors
2ND WHEEL GEAR525-17221-00-00
Required: 1
GEAR, 2ND WHEEL (32T)
No longer availableSearch Nationwide Inventory
$14.69
You save $1.63
-10%
16
Yamaha Motors
SHIM164-17427-00-06
Required: 1
SHIM 1 (T=0.6)
$5.39
You save $0.60
-10%
$8.54
You save $0.95
-10%
18
Yamaha Motors
Plate Washer90201-20266-00
Required: 1
WASHER, PLATE (T=1.0)
$9.44
You save $1.05
-10%
$3.65
You save $0.40
-10%
No longer availableSearch Nationwide Inventory
$4.50
You save $0.50
-10%
No longer availableSearch Nationwide Inventory
$17.93
You save $1.99
-10%
22
Yamaha Motors
BEARING (4HM)93306-30317-00
Required: 1
BEARING
Supersedes: 93306-30309-00
$39.59
You save $4.40
-10%
$43.19
You save $4.80
-10%
$59.39
You save $6.60
-10%
$5.84
You save $0.65
-10%
No longer availableSearch Nationwide Inventory
$13.04
You save $1.45
-10%
27
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 92501-06012-00
$3.69
You save $0.41
-10%
28
Yamaha Motors
DRIVE SPROCKET ASSEMBLY3TU-17460-00-00
Required: 1
SPROCKET,DRIVE 12T(1741746120)
Supersedes: 93822-12012-00
$22.49
You save $2.50
-10%
28
Yamaha Motors
Drive Sprocket93822-17117-00
Required: 1
SPROCKET,DRIVE 17T(1741746170)
No longer availableSearch Nationwide Inventory
$13.92
You save $1.55
-10%
$21.59
You save $2.40
-10%
$14.84
You save $1.65
-10%
31
Yamaha Motors
LOCK WASHER90215-16127-00
Required: 1
WASHER, LOCK
Supersedes: 90215-16020-00
$9.44
You save $1.05
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
