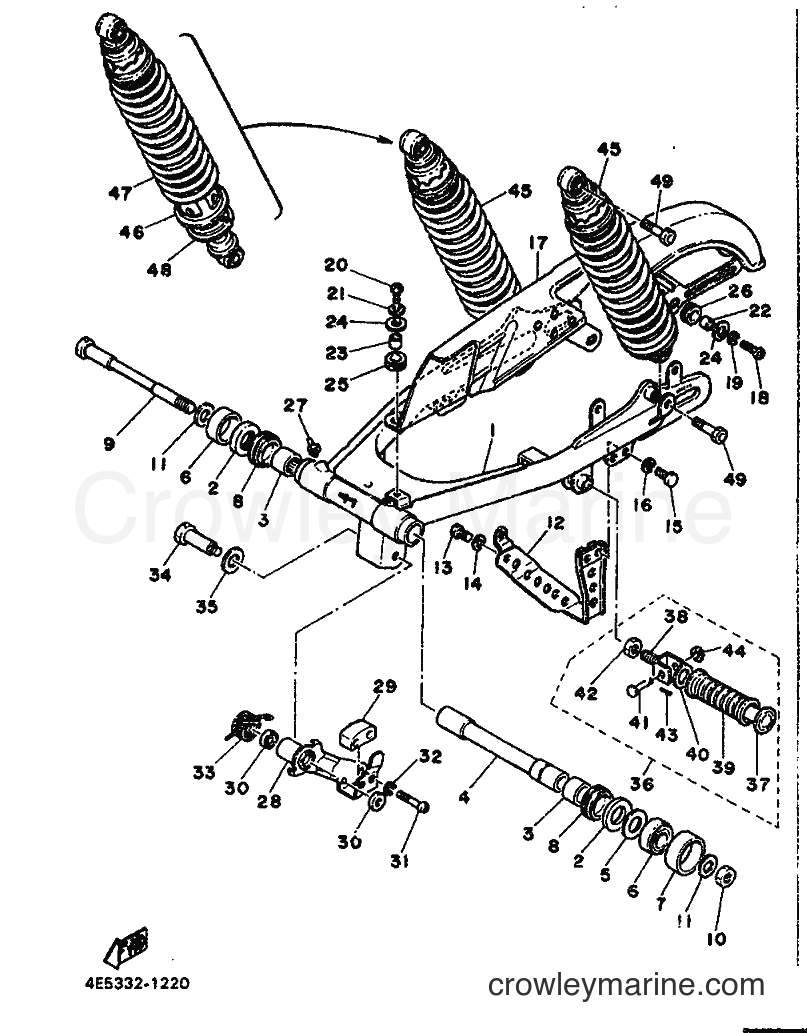

1989 Dirt Bike XT500 - XT500 (3ST1) [999] BRAS ARRIERE diagram
![Yamaha Motors XT500 (3ST1) [999] - BRAS ARRIERE](https://cdn.crowleymarine.com/yamaha/TOwF9ZxQ.png)
-10%
1
Yamaha Motors
REAR ARM3H7-22110-00-33
Required: 1
REAR ARM COMP.
No longer availableSearch Nationwide Inventory
$172.79
You save $19.20
-10%
$69.29
You save $7.70
-10%
$45.89
You save $5.10
-10%
No longer availableSearch Nationwide Inventory
$88.19
You save $9.80
-10%
5
Yamaha Motors
Shim90201-22284-04
Required: 1
SHIM (0.3T)
Supersedes: 648-45533-00-03
$2.75
You save $0.30
-10%
6
Yamaha Motors
THRUST COVER2K8-22129-00-00
Required: 2
COVER, THRUST 2
$37.79
You save $4.20
-10%
$27.89
You save $3.10
-10%
8
Yamaha Motors
OSO-Type Oil Seal93108-35004-00
Required: 2
OIL SEAL (35-41-8)
$15.74
You save $1.75
-10%
No longer availableSearch Nationwide Inventory
$34.19
You save $3.80
-10%
10
Yamaha Motors
95617-16100-0095607-16100-00
Required: 1
NUT, U
Supersedes: 95601-16100-00
No longer availableSearch Nationwide Inventory
$12.59
You save $1.40
-50%
11
Yamaha Motors
Conical Spring Washer90208-16019-00
Required: 2
WASHER, CONICAL SPRING
In stock
Only 1 remaining
$4.75
You save $4.75
-10%
No longer availableSearch Nationwide Inventory
$30.59
You save $3.40
-50%
In stock
Only 3 remaining
$0.63
You save $0.63
-15%
14
Yamaha Motors
Spring Washer92990-08100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$4.76
You save $0.84
-15%
In stock
Only 5 remaining
$2.35
You save $0.41
-15%
16
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-10%
No longer availableSearch Nationwide Inventory
$76.49
You save $8.50
-50%
18
Yamaha Motors
Pan Head Screw98507-05016-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98501-05016-00
In stock
Only 4 remaining
$0.90
You save $0.90
-15%
19
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
WASHER, SPRING
Supersedes: 92901-05100-00
$0.30
You save $0.05
-10%
20
Yamaha Motors
Pan Head Screw (4MY)98507-05018-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98501-05018-00
$3.19
You save $0.35
-15%
21
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
WASHER, SPRING
Supersedes: 92901-05100-00
$0.30
You save $0.05
-10%
$4.32
You save $0.48
-10%
$9.44
You save $1.05
-10%
24
Yamaha Motors
Plate Washer90201-06747-00
Required: 4
WASHER, PLATE
Supersedes: 90201-06407-00
$8.54
You save $0.95
-10%
25
Yamaha Motors
Grommet (JG1)90480-12529-00
Required: 2
GROMMET
Supersedes: 90480-12188-00
$2.75
You save $0.30
-10%
$4.94
You save $0.55
-15%
27
Yamaha Motors
Grease Nipple93700-06M03-00
Required: 1
NIPPLE, GREASE
Supersedes: 93700-06004-00
In stock
5+ in stock
$7.22
You save $1.27
-10%
28
Yamaha Motors
Tensioner Arm2Y0-22179-00-00
Required: 1
ARM, TENSIONER
No longer availableSearch Nationwide Inventory
$78.29
You save $8.70
-10%
$19.79
You save $2.20
-10%
No longer availableSearch Nationwide Inventory
$7.19
You save $0.80
-10%
31
Yamaha Motors
Pan Head Screw98507-05040-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98501-05040-00
$8.54
You save $0.95
-15%
32
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
WASHER, SPRING
Supersedes: 92901-05100-00
$0.30
You save $0.05
33
Yamaha Motors
SPRING, TORSION90508-36387
Required: 1
SPRING, TORSION
Price unavailable
-10%
$9.44
You save $1.05
-10%
35
Yamaha Motors
Plate Washer90201-15797-00
Required: 1
WASHER, PLATE
Supersedes: 90201-14218-00
$9.44
You save $1.05
-10%
36
Yamaha Motors
Rear Footrest Assembly120-27430-02-00
Required: 2
REAR FOOTREST ASSY 1
$29.69
You save $3.30
-10%
37
Yamaha Motors
Footrest2GV-27431-00-00
Required: 1
. FOOTREST, REAR 1
Supersedes: 120-27431-00-00
$33.29
You save $3.70
-10%
No longer availableSearch Nationwide Inventory
$6.74
You save $0.75
-10%
39
Yamaha Motors
RR FOOTREST COVER120-27433-00-00
Required: 1
. COVER, REAR FOOTREST
$8.54
You save $0.95
-10%
40
Yamaha Motors
Plate Washer90201-20279-00
Required: 1
. WASHER, PLATE
$8.54
You save $0.95
-10%
41
Yamaha Motors
CLEVIS PIN90240-06052-00
Required: 1
. PIN, CLEVIS
No longer availableSearch Nationwide Inventory
$0.98
You save $0.11
-10%
42
Yamaha Motors
Nut95317-12700-00
Required: 1
. NUT
Supersedes: 95301-12700-00
$8.54
You save $0.95
-15%
43
Yamaha Motors
Cotter Pin91490-20015-00
Required: 1
. PIN, COTTER
Supersedes: 91401-20015-00
In stock
5+ in stock
$1.87
You save $0.33
-15%
44
Yamaha Motors
Plate Washer90201-06049-00
Required: 1
. WASHER, PLATE
Supersedes: 90201-062G3-00
In stock
Only 1 remaining
$3.19
You save $0.56
-10%
45
Yamaha Motors
REAR SHOCK ABSORBER ASSEMBLY3H7-22210-00-00
Required: 2
SHOCK ABSORBER ASSY, REAR
No longer availableSearch Nationwide Inventory
$477.89
You save $53.10
-10%
46
Yamaha Motors
OIL OUTLET COVER1T1-22211-00-00
Required: 1
. GUIDE, SPRING
No longer availableSearch Nationwide Inventory
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$39.59
You save $4.40
-10%
48
Yamaha Motors
Spring Guide583-22214-00-00
Required: 1
. SEAT, SPRING
No longer availableSearch Nationwide Inventory
$8.99
You save $1.00
-10%
$9.44
You save $1.05
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
