1989 Dirt Bike XT600 - XT600 (3PW1) [999] ALTERNATE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

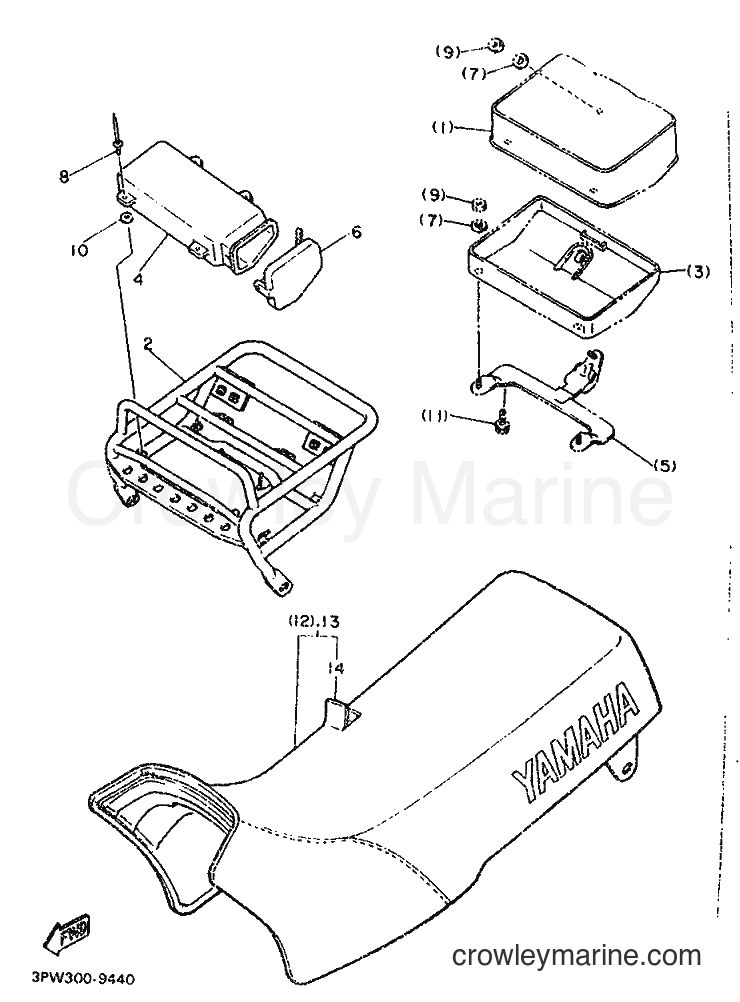

Yamaha Motors XT600 (3PW1) [999] - ALTERNATE
Change View:
SUB CARRIER ASSY
2
Yamaha Motors
SUB CARRIER ASSY2KF-24830-00
Required: 1
SUB CARRIER ASSY
Price unavailable
BOX COMP.
4
Yamaha Motors
BOX COMP.34L-21170-00
Required: 1
BOX COMP.
Price unavailable
LID
6
Yamaha Motors
LID34L-28185-00
Required: 1
LID
Price unavailable
-10%
Plate Washer
7
Yamaha Motors
Plate Washer90201-061A5-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
BLIND RIVET
8
Yamaha Motors
BLIND RIVET90267-32070-00
Required: 4
RIVET, BLIND
Cross Ship
Leaves in 2-5 days
$4.35
$3.92
You save $0.44
More details
-10%
Bolt with Washer
11
Yamaha Motors
Bolt with Washer90119-06117-00
Required: 1
BOLT, WITH WASHER
Supersedes: 90119-06042-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.94
You save $0.55
More details
SEMI-DOUBLE SEAT ASSY
12
Yamaha Motors
SEMI-DOUBLE SEAT ASSY2KF-24770-50
Required: 1
SEMI-DOUBLE SEAT ASSY
Price unavailable
SEMI-DOUBLE SEAT ASSY
13
Yamaha Motors
SEMI-DOUBLE SEAT ASSY2KF-24770-40
Required: 1
SEMI-DOUBLE SEAT ASSY
Price unavailable
. COVER, SEAT
14
Yamaha Motors
. COVER, SEAT2KF-24731-20
Required: 1
. COVER, SEAT
Price unavailable
