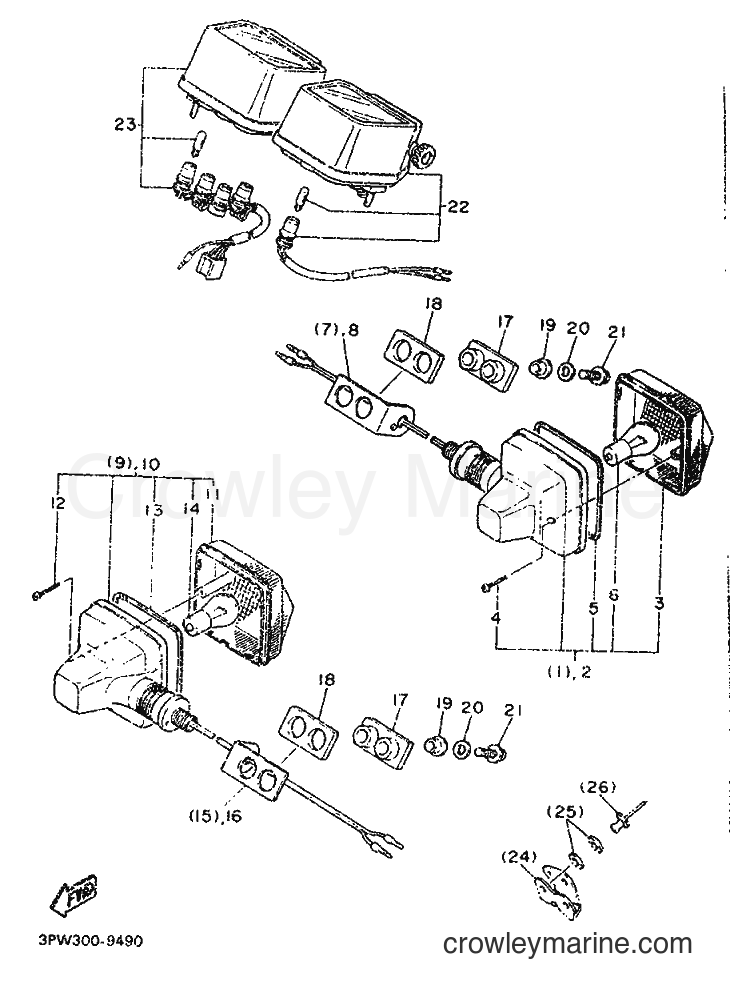

1989 Dirt Bike XT600 - XT600 (3PW1) [999] ALTERNATE diagram
![Yamaha Motors XT600 (3PW1) [999] - ALTERNATE](https://cdn.crowleymarine.com/yamaha/4XBWUNSo.png)
1
Yamaha Motors
REAR FLASHER LIGHT ASSY 12KF-83330-00
Required: 1
REAR FLASHER LIGHT ASSY 1
Price unavailable
2
Yamaha Motors
REAR FLASHER LIGHT ASSY 12KF-83330-10
Required: 1
REAR FLASHER LIGHT ASSY 1
Price unavailable
3
Yamaha Motors
. LENS, FLASHER2KF-83332-00
Required: 1
. LENS, FLASHER
Price unavailable
-10%
4
Yamaha Motors
Pan Head Tap Screw97707-40520-00
Required: 1
. SCREW, TAPPING
Supersedes: 97706-40620-00
$9.44
You save $1.05
5
Yamaha Motors
. GASKET, FLASHER LENS47J-83313-00
Required: 1
. GASKET, FLASHER LENS
Price unavailable
-10%
6
Yamaha Motors
BULB (12V-21W)306-83311-40-00
Required: 1
. BULB, FLASHER
$13.04
You save $1.45
-10%
7
Yamaha Motors
FLASHER STAY15A-83368-00-00
Required: 1
STAY, FLASHER 1
No longer availableSearch Nationwide Inventory
$14.39
You save $1.60
8
Yamaha Motors
STAY, FLASHER 12KF-83368-00
Required: 1
STAY, FLASHER 1
Price unavailable
9
Yamaha Motors
FLASHER LIGHT ASSY 22KF-83340-00
Required: 1
FLASHER LIGHT ASSY 2
Price unavailable
10
Yamaha Motors
FLASHER LIGHT ASSY 22KF-83340-10
Required: 1
FLASHER LIGHT ASSY 2
Price unavailable
-10%
11
Yamaha Motors
FLASHER LENS2KF-83342-00-00
Required: 1
. LENS, FLASHER 2
No longer availableSearch Nationwide Inventory
$2.49
You save $0.28
-10%
12
Yamaha Motors
Pan Head Tap Screw97707-40520-00
Required: 1
. SCREW, TAPPING
Supersedes: 97706-40620-00
$9.44
You save $1.05
13
Yamaha Motors
. GASKET, FLASHER LENS47J-83313-00
Required: 1
. GASKET, FLASHER LENS
Price unavailable
-10%
14
Yamaha Motors
BULB (12V-21W)306-83311-40-00
Required: 1
. BULB, FLASHER
$13.04
You save $1.45
-10%
15
Yamaha Motors
FLASHER STAY15A-83369-00-00
Required: 1
STAY, FLASHER 2
No longer availableSearch Nationwide Inventory
$14.84
You save $1.65
16
Yamaha Motors
STAY, FLASHER 22KF-83369-00
Required: 1
STAY, FLASHER 2
Price unavailable
17
Yamaha Motors
DAMPER, LOCATING 147X-24181-00
Required: 2
DAMPER, LOCATING 1
Price unavailable
-10%
18
Yamaha Motors
LOCATING DAMPER 347X-24183-00-00
Required: 2
DAMPER, LOCATING 3
No longer availableSearch Nationwide Inventory
$5.39
You save $0.60
-50%
In stock
Only 1 remaining
$5.25
You save $5.25
-10%
20
Yamaha Motors
Plate Washer90201-06697-00
Required: 4
WASHER, PLATE
Supersedes: 90201-066F3-00
$8.54
You save $0.95
-10%
21
Yamaha Motors
Flange Bolt95811-06025-00
Required: 4
BOLT, FLANGE
Supersedes: 95806-06025-00
No longer availableSearch Nationwide Inventory
$1.53
You save $0.17
22
Yamaha Motors
SPEEDOMETER ASSY34L-83570-F1
Required: 1
SPEEDOMETER ASSY
Price unavailable
23
Yamaha Motors
TACHOMETER ASSY1VJ-83540-41
Required: 1
TACHOMETER ASSY
Price unavailable
-10%
24
Yamaha Motors
33G-85132-02-0033G-85132-01-00
Required: 1
BRACKET, REFLECTOR 1
Supersedes: 33G-85132-00-00
No longer availableSearch Nationwide Inventory
$6.74
You save $0.75
-10%
25
Yamaha Motors
Plate Washer90201-044H9-00
Required: 1
WASHER, PLATE
Supersedes: 90201-044A2-00
$8.54
You save $0.95
-10%
$4.00
You save $0.45
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
