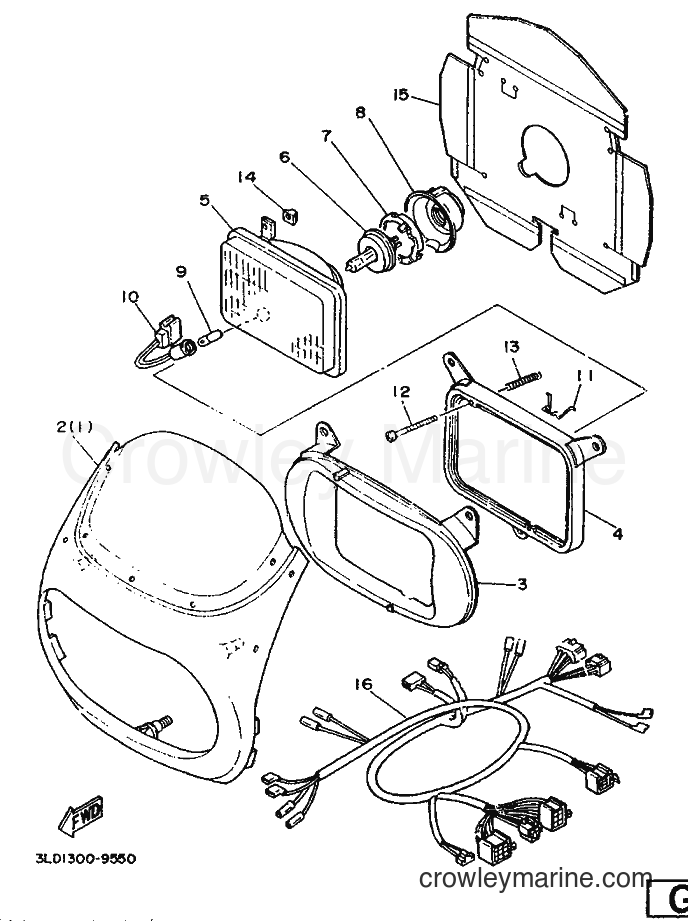

1989 Dirt Bike XTZ750 - XTZ750 (3LD1) [999] ALTERNATE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XTZ750 (3LD1) [999] - ALTERNATE
Change View:
BODY, COWLING
1
Yamaha Motors
BODY, COWLING3LD-28351-00-GE
Required: 1
BODY, COWLING
Price unavailable
BODY, COWLING
2
Yamaha Motors
BODY, COWLING3TA-28351-00-GE
Required: 1
BODY, COWLING
Price unavailable
PLATE
3
Yamaha Motors
PLATE3TD-28336-00
Required: 1
PLATE
Price unavailable
RIM, HEADLIGHT
4
Yamaha Motors
RIM, HEADLIGHT3TD-84315-00
Required: 1
RIM, HEADLIGHT
Price unavailable
LENS ASSY
5
Yamaha Motors
LENS ASSY11U-84321-G0
Required: 1
LENS ASSY
Price unavailable
-10%
BULB FITTING PLATE
7
Yamaha Motors
BULB FITTING PLATE2F9-84375-00-00
Required: 1
FITTING PLATE, BULB
Cross Ship
Leaves in 2-5 days
$14.99
$13.49
You save $1.50
More details
-10%
Socket Cover
8
Yamaha Motors
Socket Cover2F9-84397-01-00
Required: 1
COVER, SOCKET
Cross Ship
Leaves in 2-5 days
$33.99
$30.59
You save $3.40
More details
BULB
9
Yamaha Motors
BULB4E2-84347-00
Required: 1
BULB
Price unavailable
HOLDER, SOCKET
10
Yamaha Motors
HOLDER, SOCKET2LF-84312-00
Required: 1
HOLDER, SOCKET
Price unavailable
-10%
Spring Set
11
Yamaha Motors
Spring Set55X-84124-00-00
Required: 1
SPRING, REFLECTOR
Supersedes: 5G2-84324-A0-00
Cross Ship
Leaves in 2-5 days
$12.99
$11.69
You save $1.30
More details
-10%
RIM ADJUSTER SCREW
12
Yamaha Motors
RIM ADJUSTER SCREW43F-84131-00-00
Required: 2
SCREW, RIM ADJUSTER
Cross Ship
Leaves in 2-5 days
$10.99
$9.89
You save $1.10
More details
-10%
Screw Spring
13
Yamaha Motors
Screw Spring341-84332-60-00
Required: 2
SPRING, SCREW
Supersedes: 5G2-84332-60-00
Cross Ship
Leaves in 2-5 days
$10.99
$9.89
You save $1.10
More details
-10%
Adjusting Nut
14
Yamaha Motors
Adjusting Nut198-84334-60-00
Required: 2
NUT, ADJUSTING
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
COVER
15
Yamaha Motors
COVER3TD-84396-00
Required: 1
COVER
Price unavailable
CORD, HEADLIGHT
16
Yamaha Motors
CORD, HEADLIGHT3TD-84359-01
Required: 1
CORD, HEADLIGHT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
