1989 Dirt Bike XTZ750 - XTZ750 (3SC1) [999] SIDE COVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

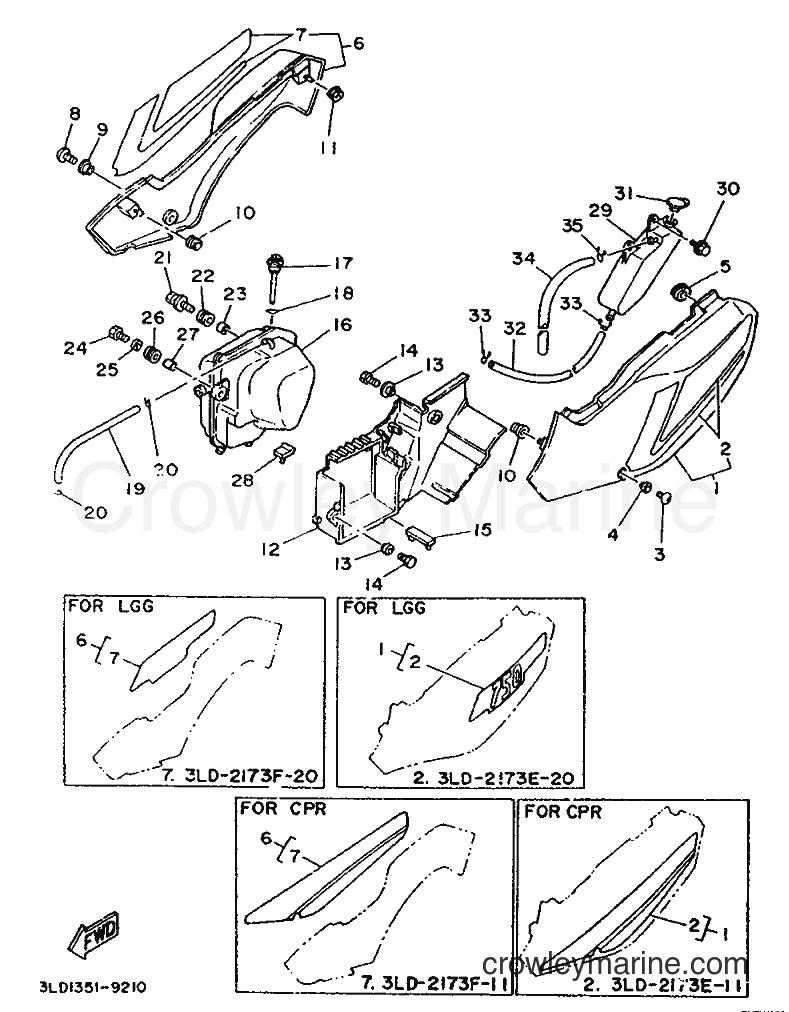

Yamaha Motors XTZ750 (3SC1) [999] - SIDE COVER
Change View:
COVER, SIDE 1
1
Yamaha Motors
COVER, SIDE 13LD-Y2171-10-GE
Required: 1
COVER, SIDE 1
Price unavailable
COVER, SIDE 1
1
Yamaha Motors
COVER, SIDE 13LD-Y2171-20
Required: 1
COVER, SIDE 1
Price unavailable
COVER, SIDE 1
1
Yamaha Motors
COVER, SIDE 13LD-Y2171-00-NJ
Required: 1
COVER, SIDE 1
Price unavailable
. GRAPHIC 1
2
Yamaha Motors
. GRAPHIC 13LD-2173E-11
Required: 1
. GRAPHIC 1
Price unavailable
. GRAPHIC SET 1
2
Yamaha Motors
. GRAPHIC SET 13LD-2173L-01
Required: 1
. GRAPHIC SET 1
Price unavailable
. GRAPHIC 1
2
Yamaha Motors
. GRAPHIC 13LD-2173E-20
Required: 1
. GRAPHIC 1
Price unavailable
-10%
SPECIAL SHAPE SCREW
3
Yamaha Motors
SPECIAL SHAPE SCREW90149-06280-00
Required: 1
SCREW
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
-10%
COLLAR
4
Yamaha Motors
COLLAR90387-06107-00
Required: 1
COLLAR
Supersedes: 90387-064J1-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Grommet
5
Yamaha Motors
Grommet90480-01401-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
COVER, SIDE 2
6
Yamaha Motors
COVER, SIDE 23LD-Y2172-20
Required: 1
COVER, SIDE 2
Price unavailable
COVER, SIDE 2
6
Yamaha Motors
COVER, SIDE 23LD-Y2172-00-NJ
Required: 1
COVER, SIDE 2
Price unavailable
COVER, SIDE 2
6
Yamaha Motors
COVER, SIDE 23LD-Y2172-10-GE
Required: 1
COVER, SIDE 2
Price unavailable
. GRAPHIC 2
7
Yamaha Motors
. GRAPHIC 23LD-2173F-11
Required: 1
. GRAPHIC 2
Price unavailable
. COVER, SIDE 2
7
Yamaha Motors
. COVER, SIDE 23LD-Y2172-20
Required: 1
. COVER, SIDE 2
Price unavailable
. GRAPHIC SET 2
7
Yamaha Motors
. GRAPHIC SET 23LD-2174L-01
Required: 1
. GRAPHIC SET 2
Price unavailable
-10%
SPECIAL SHAPE SCREW
8
Yamaha Motors
SPECIAL SHAPE SCREW90149-06280-00
Required: 1
SCREW
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
-10%
COLLAR
9
Yamaha Motors
COLLAR90387-06107-00
Required: 1
COLLAR
Supersedes: 90387-064J1-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Grommet
10
Yamaha Motors
Grommet90480-13567-00
Required: 1
GROMMET
Supersedes: 90480-13426-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.94
You save $0.55
More details
-10%
Grommet
11
Yamaha Motors
Grommet90480-01401-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
BOX, BATTERY
12
Yamaha Motors
BOX, BATTERY3LD-2177G-00
Required: 1
BOX, BATTERY
Price unavailable
-10%
COLLAR
13
Yamaha Motors
COLLAR90387-06500-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
OIL TANK ASSY
16
Yamaha Motors
OIL TANK ASSY3LD-21750-00
Required: 1
OIL TANK ASSY
Price unavailable
GAUGE, LEVEL
17
Yamaha Motors
GAUGE, LEVEL3LD-21761-00
Required: 1
GAUGE, LEVEL
Price unavailable
-10%
O-Ring
18
Yamaha Motors
O-Ring93210-21190-00
Required: 1
O-RING
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
HOSE (L460)
19
Yamaha Motors
HOSE (L460)90445-112G6
Required: 1
HOSE (L460)
Price unavailable
-10%
Clip
20
Yamaha Motors
Clip90467-100A1-00
Required: 2
CLIP
Supersedes: 90467-10008-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
Bolt With Washer
21
Yamaha Motors
Bolt With Washer90119-06063-00
Required: 1
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
GROMMET, WATER TUBE (UPPER)
22
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-16233-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
GROMMET, WATER TUBE (UPPER)
26
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-18549-00
Required: 1
GROMMET
Supersedes: 90480-18354-00
Cross Ship
Leaves in 2-5 days
$11.49
$10.34
You save $1.15
More details
DAMPER
28
Yamaha Motors
DAMPER3LD-21747-00
Required: 1
DAMPER
Price unavailable
-10%
RECOVERY TANK
29
Yamaha Motors
RECOVERY TANK3LD-21871-00-00
Required: 1
TANK, RECOVERY
Cross Ship
Leaves in 2-5 days
$74.99
$67.49
You save $7.50
More details
-10%
Bolt with Washer
30
Yamaha Motors
Bolt with Washer90119-06152-00
Required: 1
BOLT, WITH WASHER
Supersedes: 90119-06056-00
Cross Ship
Leaves in 2-5 days
$3.55
$3.19
You save $0.35
More details
-10%
Cap
31
Yamaha Motors
Cap10V-21875-00-00
Required: 1
CAP
Cross Ship
Leaves in 2-5 days
$23.99
$21.59
You save $2.40
More details
-10%
Hose
32
Yamaha Motors
Hose90445-090F6-00
Required: 1
HOSE (L1080)
Supersedes: 90445-093F7-00
Cross Ship
Leaves in 2-5 days
$34.99
$31.49
You save $3.50
More details
-10%
Scissor Clip
33
Yamaha Motors
Scissor Clip90467-08017-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$11.49
$10.34
You save $1.15
More details
-10%
Hose
34
Yamaha Motors
Hose90445-090F6-00
Required: 1
HOSE (L1500)
Cross Ship
Leaves in 2-5 days
$34.99
$31.49
You save $3.50
More details
-10%
Scissor Clip
35
Yamaha Motors
Scissor Clip90467-08017-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$11.49
$10.34
You save $1.15
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
