1990 Dirt Bike DT125R - DT125R (3NC2) [999] CRANKSHAFT & PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

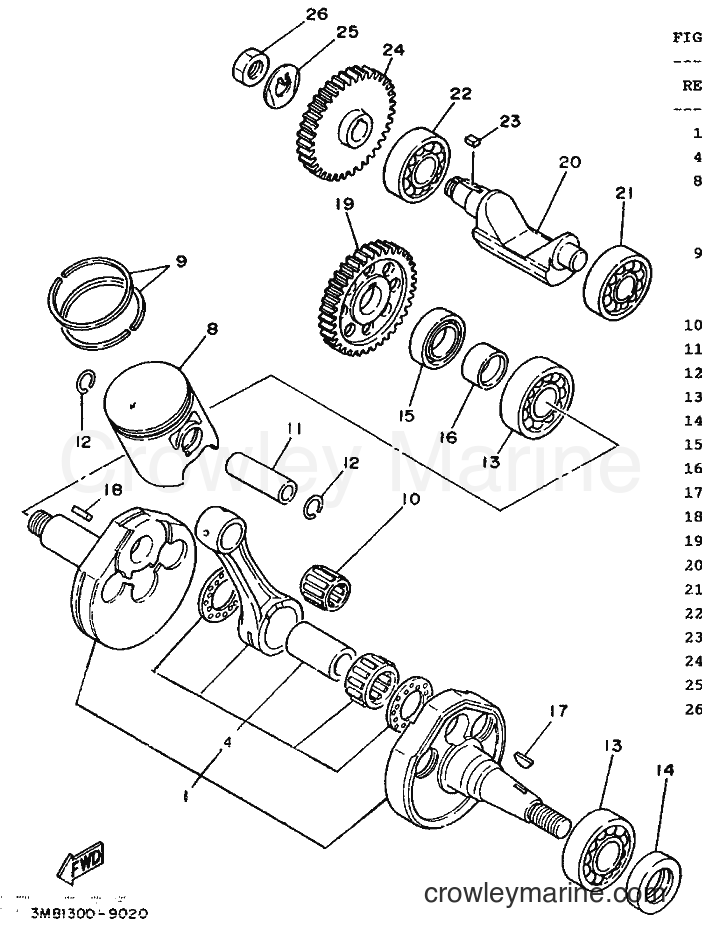

Yamaha Motors DT125R (3NC2) [999] - CRANKSHAFT & PISTON
Change View:
CRANKSHAFT ASSY
1
Yamaha Motors
CRANKSHAFT ASSY3NC-E1400-00
Required: 1
CRANKSHAFT ASSY
Price unavailable
ROD, CONNECTING
4
Yamaha Motors
ROD, CONNECTING2VR-E1651-00
Required: 1
ROD, CONNECTING
Price unavailable
PISTON (STD)
8
Yamaha Motors
PISTON (STD)3MB-11631-00-95
Required: 1
PISTON (STD)
Price unavailable
PISTON (0.25MM O/S)
8
Yamaha Motors
PISTON (0.25MM O/S)3MB-11635-00
Required: 1
PISTON (0.25MM O/S)
Price unavailable
PISTON (0.50MM O/S)
8
Yamaha Motors
PISTON (0.50MM O/S)3MB-11636-00
Required: 1
PISTON (0.50MM O/S)
Price unavailable
PISTON RING SET (STD)
9
Yamaha Motors
PISTON RING SET (STD)3MB-11610-00
Required: 1
PISTON RING SET (STD)
Price unavailable
PISTON RING SET (0.50MM O/S)
9
Yamaha Motors
PISTON RING SET (0.50MM O/S)3MB-11610-20
Required: 1
PISTON RING SET (0.50MM O/S)
Price unavailable
PISTON RING SET (0.25MM O/S)
9
Yamaha Motors
PISTON RING SET (0.25MM O/S)3MB-11610-10
Required: 1
PISTON RING SET (0.25MM O/S)
Price unavailable
BEARING
10
Yamaha Motors
BEARING93310-316B4
Required: 1
BEARING
Price unavailable
PIN, PISTON
11
Yamaha Motors
PIN, PISTON3NC-E1633-00
Required: 1
PIN, PISTON
Price unavailable
CLIP, PISTON PIN
12
Yamaha Motors
CLIP, PISTON PIN2VR-E1634-00
Required: 2
CLIP, PISTON PIN
Price unavailable
BEARING
13
Yamaha Motors
BEARING93306-305Y5
Required: 2
BEARING
Price unavailable
-10%
SW-TYPE OIL SEAL
15
Yamaha Motors
SW-TYPE OIL SEAL93103-32183-00
Required: 1
OIL SEAL
Supersedes: 93103-32099-00
Cross Ship
Leaves in 2-5 days
$38.99
$35.09
You save $3.90
More details
-10%
COLLAR
16
Yamaha Motors
COLLAR90387-202T9-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$39.99
$35.99
You save $4.00
More details
-10%
Woodruff Key
17
Yamaha Motors
Woodruff Key90280-03017-00
Required: 1
KEY, WOODRUFF
Supersedes: 90280-03045-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
Straight Key
18
Yamaha Motors
Straight Key90282-05047-00
Required: 1
KEY, STRAIGHT
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
GEAR, DRIVE
19
Yamaha Motors
GEAR, DRIVE2AH-E1536-00
Required: 1
GEAR, DRIVE
Price unavailable
WEIGHT 1
20
Yamaha Motors
WEIGHT 12VR-E1454-00
Required: 1
WEIGHT 1
Price unavailable
BEARING
21
Yamaha Motors
BEARING93306-302Y9
Required: 1
BEARING
Price unavailable
BEARING
22
Yamaha Motors
BEARING93306-203Y9
Required: 1
BEARING
Price unavailable
-10%
STRAIGHT KEY
23
Yamaha Motors
STRAIGHT KEY90282-05058-00
Required: 1
KEY, STRAIGHT
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
BALANCER WEIGHT GEAR COMP.
24
Yamaha Motors
BALANCER WEIGHT GEAR COMP.2VR-E1530-00
Required: 1
BALANCER WEIGHT GEAR COMP.
Price unavailable
-10%
LOCK WASHER
25
Yamaha Motors
LOCK WASHER90215-12272-00
Required: 1
WASHER, LOCK
Cross Ship
Leaves in 2-5 days
$14.49
$13.04
You save $1.45
More details
-10%
Hexagon Nut
26
Yamaha Motors
Hexagon Nut90170-12370-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$22.99
$20.69
You save $2.30
More details
