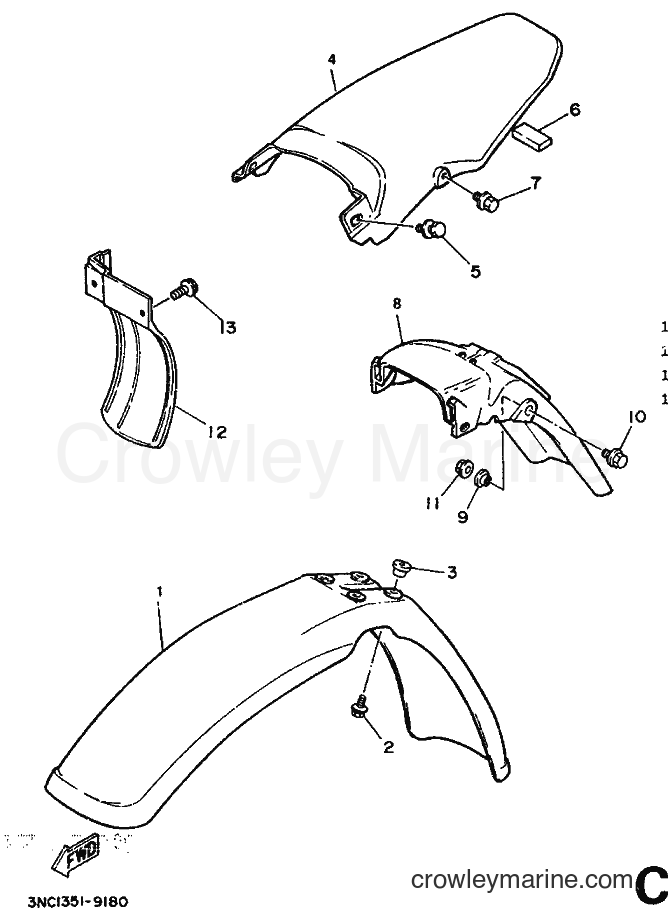

1990 Dirt Bike DT125R - DT125R (3NC2) [999] GARDE BOUE diagram
![Yamaha Motors DT125R (3NC2) [999] - GARDE BOUE](https://cdn.crowleymarine.com/yamaha/2ZauiAZg.png)
1
Yamaha Motors
FENDER, FRONT3NC-F1511-30
Required: 1
FENDER, FRONT
Price unavailable
1
Yamaha Motors
FENDER, FRONT3NC-F1511-00
Required: 1
FENDER, FRONT
Price unavailable
1
Yamaha Motors
FENDER, FRONT3NC-F1511-10
Required: 1
FENDER, FRONT
Price unavailable
-10%
2
Yamaha Motors
Bolt With Washer90119-06172-00
Required: 4
BOLT, WITH WASHER
Supersedes: 90119-06097-00
$10.34
You save $1.15
-10%
$4.19
You save $0.46
4
Yamaha Motors
FENDER, REAR3NC-F1611-00
Required: 1
FENDER, REAR
Price unavailable
4
Yamaha Motors
FENDER, REAR3NC-F1611-10
Required: 1
FENDER, REAR
Price unavailable
4
Yamaha Motors
FENDER, REAR3NC-F1611-30
Required: 1
FENDER, REAR
Price unavailable
-10%
5
Yamaha Motors
Bolt with Washer90119-06117-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06042-00
$4.94
You save $0.55
6
Yamaha Motors
DAMPER 23BN-21639-00
Required: 1
DAMPER 2
Price unavailable
-15%
7
Yamaha Motors
Flange Bolt95817-06012-00
Required: 2
BOLT, FLANGE
Supersedes: 95811-06012-00
In stock
Only 2 remaining
$1.66
You save $0.29
8
Yamaha Motors
BRACKET, LICENSE3NC-F1685-00
Required: 1
BRACKET, LICENSE
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$0.99
You save $0.11
-50%
10
Yamaha Motors
Flange Bolt95817-08020-00
Required: 2
BOLT, FLANGE
Supersedes: 95816-08020-00
In stock
Only 1 remaining
$5.25
You save $5.25
-50%
11
Yamaha Motors
Flange Nut95704-08500-00
Required: 2
NUT, WITH WASHER
Supersedes: 95701-08500-00
In stock
Only 5 remaining
$4.75
You save $4.75
12
Yamaha Motors
GUARD, FLAP3BN-21642-00
Required: 1
GUARD, FLAP
Price unavailable
-10%
13
Yamaha Motors
Bolt with Washer90119-06117-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06194-00
$4.94
You save $0.55
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
