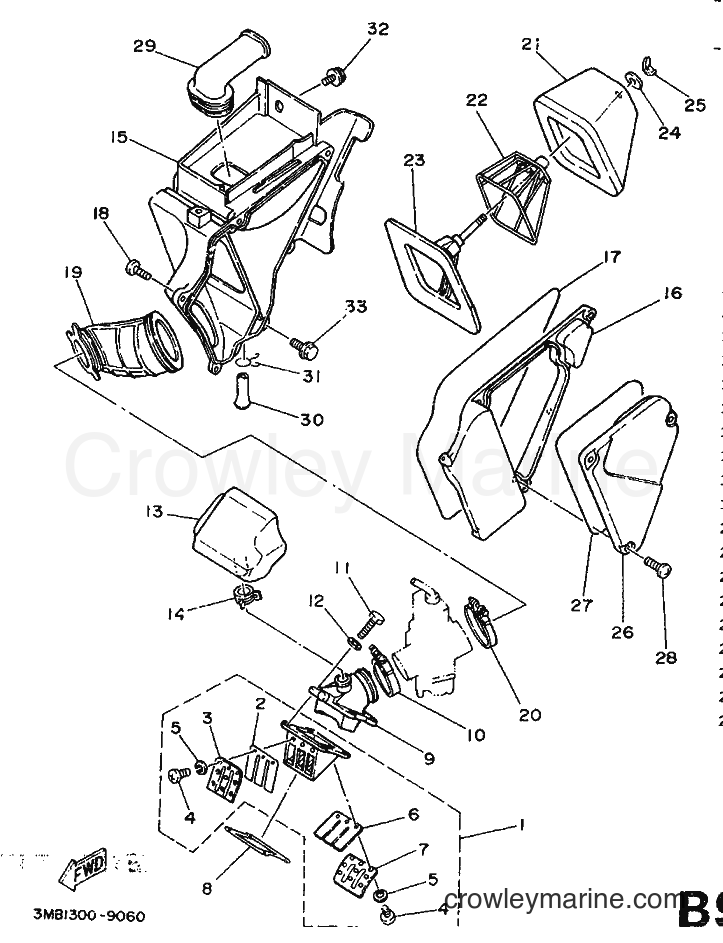

1990 Dirt Bike DT125R - DT125R (3NC2) [999] INTAKE diagram
![Yamaha Motors DT125R (3NC2) [999] - INTAKE](https://cdn.crowleymarine.com/yamaha/N89ZruFN.png)
1
Yamaha Motors
REED VALVE ASSY3MB-13610-00
Required: 1
REED VALVE ASSY
Price unavailable
2
Yamaha Motors
. REED, VALVE2TV-13613-00
Required: 3
. REED, VALVE
Price unavailable
3
Yamaha Motors
. STOPPER, REED VALVE3BN-13616-00
Required: 2
. STOPPER, REED VALVE
Price unavailable
-10%
4
Yamaha Motors
92501-06008-0092503-06008-00
Required: 6
. SCREW, PAN HEAD
Supersedes: 98501-06008-00
No longer availableSearch Nationwide Inventory
$1.04
You save $0.11
-10%
5
Yamaha Motors
Spring Washer92990-03100-00
Required: 6
. WASHER, SPRING
$8.54
You save $0.95
6
Yamaha Motors
REED, VALVE3MB-13613-00
Required: 1
REED, VALVE
Price unavailable
7
Yamaha Motors
STOPPER, REED VALVE3MB-13616-00
Required: 1
STOPPER, REED VALVE
Price unavailable
8
Yamaha Motors
GASKET, VALVE SEAT2VR-E3621-00
Required: 1
GASKET, VALVE SEAT
Price unavailable
9
Yamaha Motors
JOINT, CARBURETOR3ET-13565-00
Required: 1
JOINT, CARBURETOR
Price unavailable
-10%
10
Yamaha Motors
Hose Clamp Assembly90450-44046-00
Required: 1
HOSE CLAMP ASSY
$16.64
You save $1.85
-10%
No longer availableSearch Nationwide Inventory
$0.85
You save $0.09
-10%
12
Yamaha Motors
Plate Washer92907-06600-00
Required: 4
WASHER, PLATE
Supersedes: 92906-06600-00
$0.90
You save $0.10
13
Yamaha Motors
CHAMBER, AIR3ET-13581-00
Required: 1
CHAMBER, AIR
Price unavailable
-10%
$4.94
You save $0.55
15
Yamaha Motors
CASE, AIR CLEANER 13BN-14411-00
Required: 1
CASE, AIR CLEANER 1
Price unavailable
16
Yamaha Motors
CASE, AIR CLEANER 23BN-14421-00
Required: 1
CASE, AIR CLEANER 2
Price unavailable
17
Yamaha Motors
SEAL3BN-14452-00
Required: 1
SEAL
Price unavailable
-10%
18
Yamaha Motors
Tapping Screw97707-50520-00
Required: 6
SCREW, TAPPING
Supersedes: 97706-50520-00
No longer availableSearch Nationwide Inventory
$0.99
You save $0.11
19
Yamaha Motors
JOINT, AIR CLEANER 13MB-14453-00
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
-10%
$9.44
You save $1.05
21
Yamaha Motors
ELEMENT, AIR CLEANER3BN-14451-00
Required: 1
ELEMENT, AIR CLEANER
Price unavailable
22
Yamaha Motors
GUIDE3BN-14458-00
Required: 1
GUIDE
Price unavailable
23
Yamaha Motors
HOLDER, GUIDE3BN-14459-00
Required: 1
HOLDER, GUIDE
Price unavailable
-10%
$9.44
You save $1.05
-10%
25
Yamaha Motors
Wing Nut90175-06008-00
Required: 1
NUT, WING
Supersedes: 90175-06012-00
In stock
Only 2 remaining
$2.48
You save $0.27
26
Yamaha Motors
CAP, CLEANER CASE 13BN-14412-00
Required: 1
CAP, CLEANER CASE 1
Price unavailable
27
Yamaha Motors
SEAL3BN-14467-00
Required: 1
SEAL
Price unavailable
-50%
28
Yamaha Motors
Binding Screw90154-05011-00
Required: 3
SCREW, BINDING
In stock
Only 3 remaining
$2.48
You save $2.48
29
Yamaha Motors
DUCT3ET-14437-00
Required: 1
DUCT
Price unavailable
-10%
$7.64
You save $0.85
-10%
31
Yamaha Motors
Clip90467-11106-00
Required: 1
CLIP
Supersedes: 90467-11102-00
$3.65
You save $0.40
-10%
32
Yamaha Motors
Bolt with Washer90119-06152-00
Required: 1
BOLT, WITH WASHER
Supersedes: 90119-06056-00
$3.19
You save $0.35
-10%
33
Yamaha Motors
Bolt With Washer90119-06123-00
Required: 1
BOLT, WITH WASHER
$7.64
You save $0.85
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
