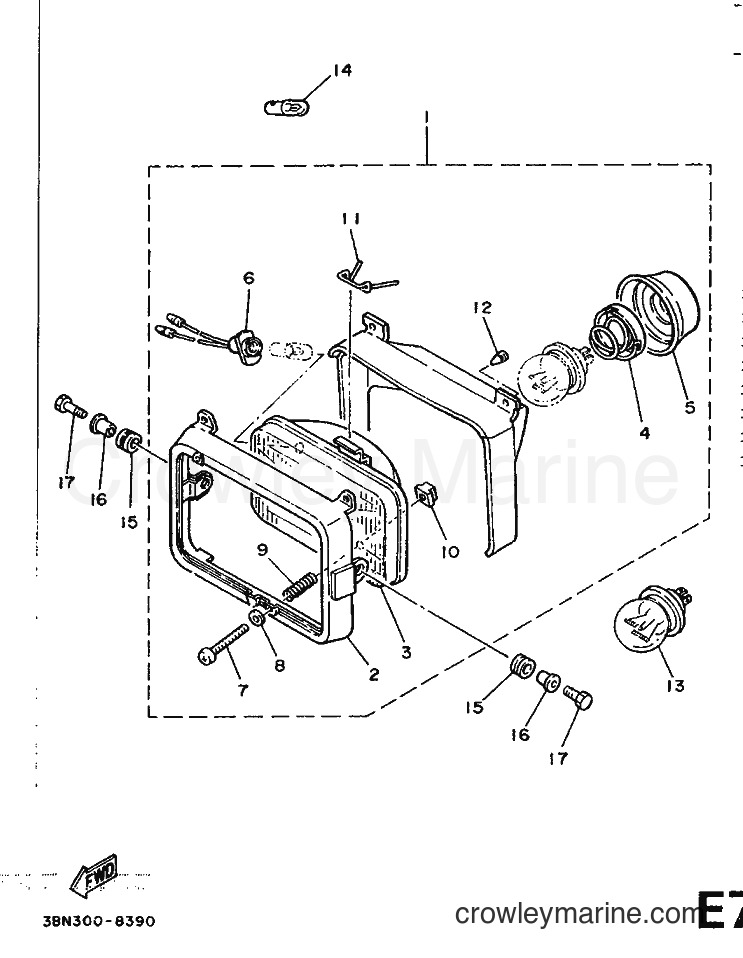

1990 Dirt Bike DT125R - DT125R (3NC2) [999] PHARE diagram
![Yamaha Motors DT125R (3NC2) [999] - PHARE](https://cdn.crowleymarine.com/yamaha/p4LJEBOh.png)
1
Yamaha Motors
HEADLIGHT UNIT ASSY34Y-84310-40
Required: 1
HEADLIGHT UNIT ASSY
Price unavailable
-10%
2
Yamaha Motors
HEADLIGHT RIM47J-84115-00-00
Required: 1
RIM, HEADLIGHT
$144.89
You save $16.10
3
Yamaha Motors
LENS ASSY10W-84321-20
Required: 1
LENS ASSY
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$19.79
You save $2.20
-10%
No longer availableSearch Nationwide Inventory
$21.59
You save $2.40
6
Yamaha Motors
SOCKET, PILOT LIGHT34L-84346-00
Required: 1
SOCKET, PILOT LIGHT
Price unavailable
-10%
7
Yamaha Motors
RIM ADJUSTER SCREW43F-84131-00-00
Required: 2
SCREW, RIM ADJUSTER
$9.89
You save $1.10
-10%
8
Yamaha Motors
Special Washer233-84127-60-00
Required: 2
WASHER, SPECIAL
$3.60
You save $0.40
-10%
9
Yamaha Motors
Screw Spring341-84332-60-00
Required: 2
SPRING, SCREW
$9.89
You save $1.10
-10%
10
Yamaha Motors
Adjusting Nut198-84334-60-00
Required: 2
NUT, ADJUSTING
$7.64
You save $0.85
-10%
11
Yamaha Motors
Spring Set55X-84124-00-00
Required: 1
SPRING, REFLECTOR
Supersedes: 5G2-84324-A0-00
$11.69
You save $1.30
-10%
12
Yamaha Motors
COVER FITTING CLIP10V-84198-00-00
Required: 2
CLIP, COVER FITTING
$5.39
You save $0.60
13
Yamaha Motors
BULB, HEADLIGHT(12V 45/40W)341-84314-20
Required: 1
BULB, HEADLIGHT(12V 45/40W)
Price unavailable
14
Yamaha Motors
BULB (12V-4W)4E2-84347-00
Required: 1
BULB (12V-4W)
Price unavailable
-10%
$7.64
You save $0.85
-10%
16
Yamaha Motors
COLLAR90387-06158-00
Required: 2
COLLAR
Supersedes: 90387-06388-00
$8.54
You save $0.95
-10%
17
Yamaha Motors
BOLT97011-06020-00
Required: 2
BOLT
Supersedes: 97001-06020-00
No longer availableSearch Nationwide Inventory
$0.85
You save $0.09
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
