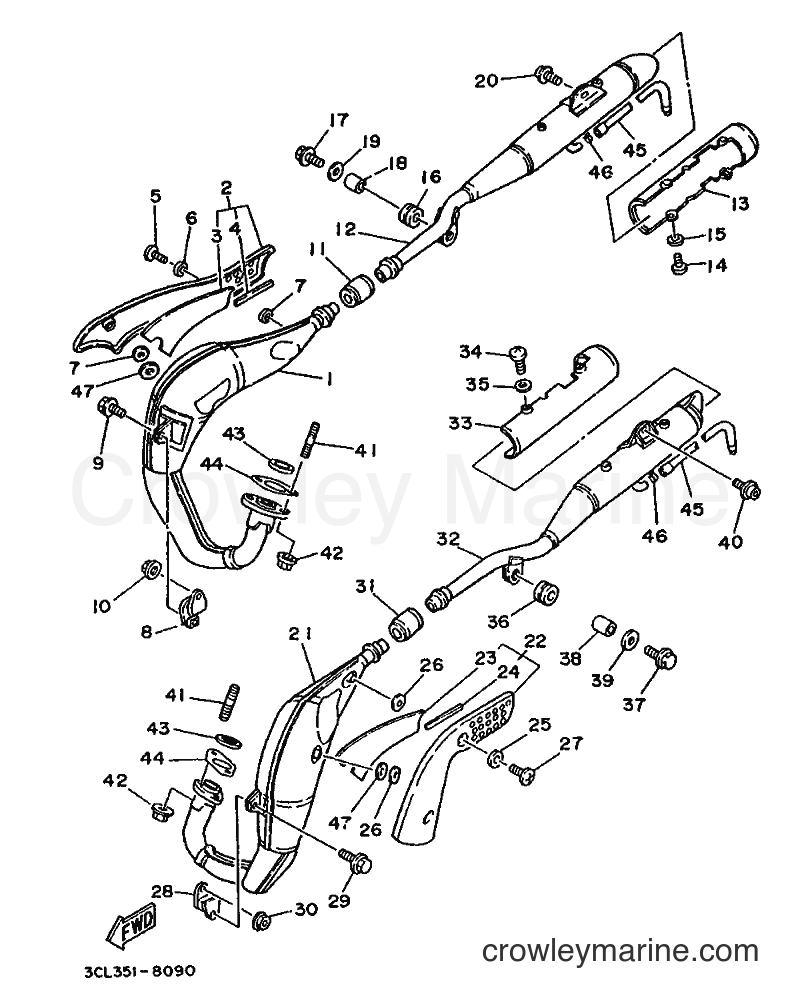

1990 Dirt Bike TDR240 - TDR240 (3CL2) [999] EXHAUST diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TDR240 (3CL2) [999] - EXHAUST
Change View:
EXHAUST PIPE ASSY 1
1
Yamaha Motors
EXHAUST PIPE ASSY 12YK-14610-00
Required: 1
EXHAUST PIPE ASSY 1
Price unavailable
PROTECTOR, MUFFLER 1
2
Yamaha Motors
PROTECTOR, MUFFLER 12YK-W1473-00
Required: 1
PROTECTOR, MUFFLER 1
Price unavailable
. DAMPER, MUFFLER
3
Yamaha Motors
. DAMPER, MUFFLER2YK-14737-00
Required: 1
. DAMPER, MUFFLER
Price unavailable
. DAMPER, MUFFLER
4
Yamaha Motors
. DAMPER, MUFFLER2YK-14747-00
Required: 1
. DAMPER, MUFFLER
Price unavailable
-10%
PROTECTOR WASHER
7
Yamaha Motors
PROTECTOR WASHER3HK-14766-02-00
Required: 2
WASHER, PROTECTOR
Supersedes: 52W-14766-00-00
Cross Ship
Leaves in 2-5 days
$4.50
$4.05
You save $0.45
More details
-10%
Muffler Stay
8
Yamaha Motors
Muffler Stay565-14771-01-00
Required: 1
STAY, MUFFLER 1
Supersedes: 565-14771-00-00
Cross Ship
Leaves in 2-5 days
$19.99
$17.99
You save $2.00
More details
-10%
Flange Nut
10
Yamaha Motors
Flange Nut95707-06500-00
Required: 1
NUT, WITH WASHER
Supersedes: 95706-06500-00
Cross Ship
Leaves in 2-5 days
$1.00
$0.90
You save $0.10
More details
GASKET, MUFFLER
11
Yamaha Motors
GASKET, MUFFLER2YK-14714-00
Required: 1
GASKET, MUFFLER
Price unavailable
CHAMBER 1
12
Yamaha Motors
CHAMBER 12YK-14731-01
Required: 1
CHAMBER 1
Price unavailable
PROTECTOR, SILENCER
13
Yamaha Motors
PROTECTOR, SILENCER2YK-14758-01
Required: 1
PROTECTOR, SILENCER
Price unavailable
-10%
GROMMET, WATER TUBE (UPPER)
16
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-18411-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$12.49
$11.24
You save $1.25
More details
-10%
Flange Bolt
17
Yamaha Motors
Flange Bolt95817-06030-00
Required: 1
BOLT, FLANGE
Supersedes: 95826-06030-00
Cross Ship
Leaves in 2-5 days
$4.65
$4.19
You save $0.46
More details
COLLAR
18
Yamaha Motors
COLLAR90387-075V3
Required: 1
COLLAR
Price unavailable
-10%
Plain Washer
19
Yamaha Motors
Plain Washer90201-06086-00
Required: 1
WASHER, PLATE
Supersedes: 90201-060A3-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
BOLT
20
Yamaha Motors
BOLT90109-085E2-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
EXHAUST PIPE ASSY 2
21
Yamaha Motors
EXHAUST PIPE ASSY 22YK-14620-00
Required: 1
EXHAUST PIPE ASSY 2
Price unavailable
PROTECTOR, MUFFLER 2
22
Yamaha Motors
PROTECTOR, MUFFLER 22YK-W1474-00
Required: 1
PROTECTOR, MUFFLER 2
Price unavailable
DAMPER, MUFFLER 2
23
Yamaha Motors
DAMPER, MUFFLER 22YK-14757-00
Required: 1
DAMPER, MUFFLER 2
Price unavailable
DAMPER, MUFFLER
24
Yamaha Motors
DAMPER, MUFFLER2YK-14747-00
Required: 1
DAMPER, MUFFLER
Price unavailable
-10%
PROTECTOR WASHER
26
Yamaha Motors
PROTECTOR WASHER3HK-14766-02-00
Required: 2
WASHER, PROTECTOR
Supersedes: 52W-14766-00-00
Cross Ship
Leaves in 2-5 days
$4.50
$4.05
You save $0.45
More details
CAP, CARBURETOR
28
Yamaha Motors
CAP, CARBURETOR565-14471-00
Required: 1
CAP, CARBURETOR
Price unavailable
-10%
Flange Nut
30
Yamaha Motors
Flange Nut95707-06500-00
Required: 1
NUT, WITH WASHER
Supersedes: 95706-06500-00
Cross Ship
Leaves in 2-5 days
$1.00
$0.90
You save $0.10
More details
GASKET, MUFFLER
31
Yamaha Motors
GASKET, MUFFLER2YK-14714-00
Required: 1
GASKET, MUFFLER
Price unavailable
CHAMBER, 2
32
Yamaha Motors
CHAMBER, 22YK-14732-01
Required: 1
CHAMBER, 2
Price unavailable
PROTECTOR, SILENCER
33
Yamaha Motors
PROTECTOR, SILENCER2YK-14758-01
Required: 1
PROTECTOR, SILENCER
Price unavailable
-10%
GROMMET, WATER TUBE (UPPER)
36
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-18411-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$12.49
$11.24
You save $1.25
More details
-10%
Flange Bolt
37
Yamaha Motors
Flange Bolt95817-06030-00
Required: 1
BOLT, FLANGE
Supersedes: 95826-06030-00
Cross Ship
Leaves in 2-5 days
$4.65
$4.19
You save $0.46
More details
COLLAR
38
Yamaha Motors
COLLAR90387-075V3
Required: 1
COLLAR
Price unavailable
-10%
Plain Washer
39
Yamaha Motors
Plain Washer90201-06086-00
Required: 1
WASHER, PLATE
Supersedes: 90201-060A3-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
BOLT
40
Yamaha Motors
BOLT90109-085E2-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
Stud Bolt
41
Yamaha Motors
Stud Bolt90116-08365-00
Required: 4
BOLT, STUD
Cross Ship
Leaves in 2-5 days
$21.99
$19.79
You save $2.20
More details
-10%
Self-Locking Nut
42
Yamaha Motors
Self-Locking Nut90185-08146-00
Required: 4
NUT,SELF-LOCKING
Supersedes: 90185-08097-00
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
EXHAUST PIPE GASKET
43
Yamaha Motors
EXHAUST PIPE GASKET29L-14613-00-00
Required: 2
GASKET, EXHAUST PIPE
Cross Ship
Leaves in 2-5 days
$32.99
$29.69
You save $3.30
More details
GASKET 3
44
Yamaha Motors
GASKET 32YK-14643-00
Required: 2
GASKET 3
Price unavailable
PIPE 2-1
45
Yamaha Motors
PIPE 2-12YK-1479W-01
Required: 2
PIPE 2-1
Price unavailable
-10%
Scissor Clip
46
Yamaha Motors
Scissor Clip90467-11028-00
Required: 2
CLIP
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
