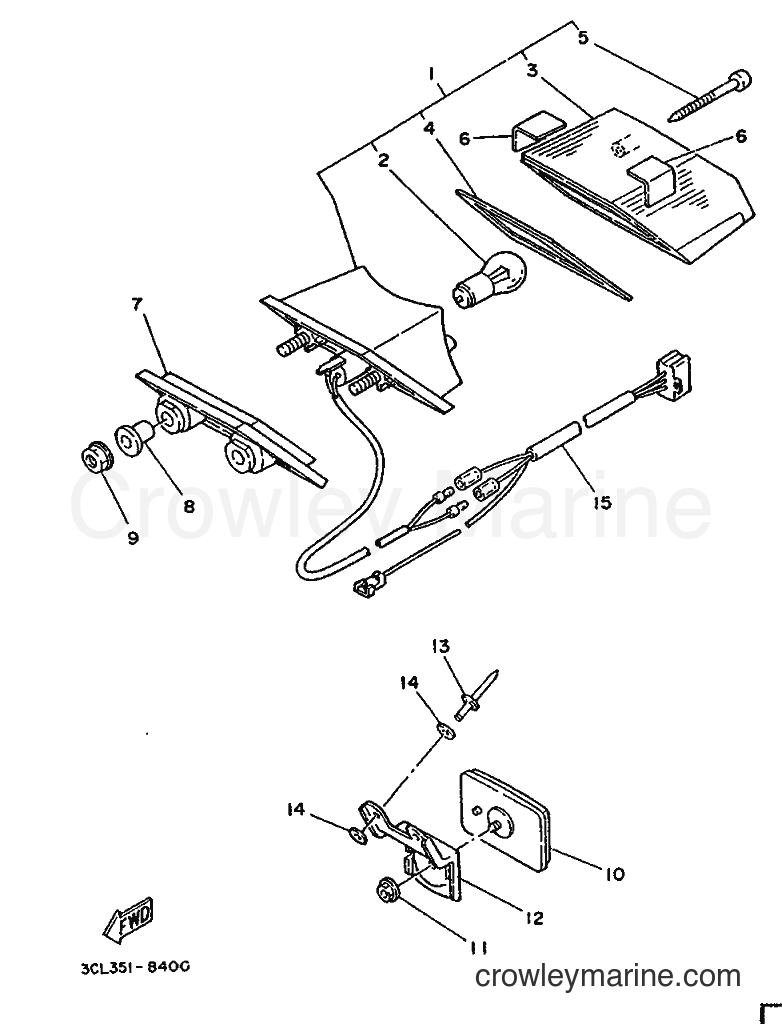

1990 Dirt Bike TDR240 - TDR240 (3CL2) [999] FEU ARRIERE diagram
![Yamaha Motors TDR240 (3CL2) [999] - FEU ARRIERE](https://cdn.crowleymarine.com/yamaha/JibCRzyL.png)
1
Yamaha Motors
TAILLIGHT UNIT ASSY34Y-84710-E1
Required: 1
TAILLIGHT UNIT ASSY
Price unavailable
-50%
2
Yamaha Motors
Bulb1A2-84714-50-00
Required: 1
. BULB (12V-21/5W)
Supersedes: 31L-84714-00-00
In stock
Only 3 remaining
$7.74
You save $7.74
3
Yamaha Motors
. LENS, TAILLIGHT34Y-84721-E0
Required: 1
. LENS, TAILLIGHT
Price unavailable
4
Yamaha Motors
. GASKET, TAIL LENS34Y-84723-E0
Required: 1
. GASKET, TAIL LENS
Price unavailable
-10%
5
Yamaha Motors
Tapping Screw97707-40630-00
Required: 2
. SCREW, TAPPING
Supersedes: 97706-40530-00
$8.54
You save $0.95
-10%
$11.69
You save $1.30
-10%
No longer availableSearch Nationwide Inventory
$10.34
You save $1.15
-10%
8
Yamaha Motors
COLLAR90387-06158-00
Required: 2
COLLAR
Supersedes: 90387-06388-00
$8.54
You save $0.95
-10%
9
Yamaha Motors
NUT WITH WASHER95701-06500-00
Required: 2
NUT, WITH WASHER
No longer availableSearch Nationwide Inventory
$2.12
You save $0.23
-10%
10
Yamaha Motors
4KM-85130-00-003G1-85130-01-00
Required: 1
REAR REFLECTOR ASSY
No longer availableSearch Nationwide Inventory
$11.69
You save $1.30
-10%
11
Yamaha Motors
95707-05500-0095701-05500-00
Required: 1
NUT, WITH WASHER
No longer availableSearch Nationwide Inventory
$2.48
You save $0.27
-10%
12
Yamaha Motors
Reflect Bracket47M-85132-00-00
Required: 1
BRACKET, REFLECTOR 1
No longer availableSearch Nationwide Inventory
$12.59
You save $1.40
-10%
13
Yamaha Motors
RIVET90267-32146-00
Required: 2
RIVET, BLIND
$7.64
You save $0.85
-10%
14
Yamaha Motors
Plate Washer90201-033H3-00
Required: 4
WASHER, PLATE
No longer availableSearch Nationwide Inventory
$2.02
You save $0.23
15
Yamaha Motors
CORD, TAILLIGHT2KF-84717-00
Required: 1
CORD, TAILLIGHT
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
