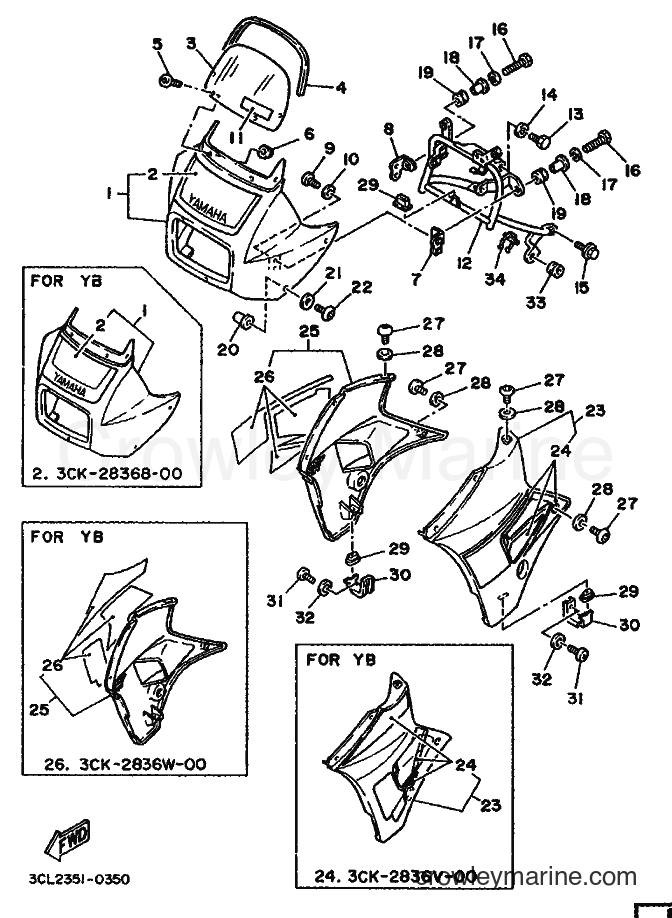

1990 Dirt Bike TDR250 - TDR250 (3CK2) [999] COWLING 1 diagram
![Yamaha Motors TDR250 (3CK2) [999] - COWLING 1](https://cdn.crowleymarine.com/yamaha/8Y6Tnj2u.png)
1
Yamaha Motors
BODY, FRONT UPPER 23CK-W283J-20
Required: 1
BODY, FRONT UPPER 2
Price unavailable
1
Yamaha Motors
BODY, FRONT UPPER 23CK-W283J-30
Required: 1
BODY, FRONT UPPER 2
Price unavailable
2
Yamaha Motors
. EMBLEM3NR-28368-00
Required: 1
. EMBLEM
Price unavailable
2
Yamaha Motors
. EMBLEM3CK-28368-00
Required: 1
. EMBLEM
Price unavailable
3
Yamaha Motors
SCREEN3CK-2837U-00
Required: 1
SCREEN
Price unavailable
-10%
4
Yamaha Motors
Mold36Y-28348-00-00
Required: 1
MOLE 1
Supersedes: 29L-28345-00-00
$31.49
You save $3.50
-10%
5
Yamaha Motors
ROUND HEAD SCREW90150-05020-00
Required: 4
SCREW, ROUND HEAD
$9.44
You save $1.05
-10%
6
Yamaha Motors
Flange Nut95707-05500-00
Required: 4
NUT, FLANGE
Supersedes: 95706-05500-00
$8.54
You save $0.95
7
Yamaha Motors
STAY, GUIDE 12YK-2831E-00
Required: 1
STAY, GUIDE 1
Price unavailable
8
Yamaha Motors
STAY, GUIDE 22YK-2831F-00
Required: 1
STAY, GUIDE 2
Price unavailable
9
Yamaha Motors
SCREW, PAN HEAD98506-05600
Required: 4
SCREW, PAN HEAD
Price unavailable
10
Yamaha Motors
Plate Washer92907-05600-00
Required: 4
WASHER, PLATE
Supersedes: 92906-05600-00
$1.98
-10%
11
Yamaha Motors
Caution Label3JJ-2835Y-00-00
Required: 1
LABEL, CAUTION
No longer availableSearch Nationwide Inventory
$15.74
You save $1.75
-10%
11
Yamaha Motors
Caution Label3JJ-2835Y-10-00
Required: 1
LABEL, CAUTION
No longer availableSearch Nationwide Inventory
$4.86
You save $0.54
12
Yamaha Motors
STAY 12YK-28356-00
Required: 1
STAY 1
Price unavailable
-10%
$3.65
You save $0.41
-10%
14
Yamaha Motors
Plate Washer92907-06600-00
Required: 1
WASHER, PLATE
Supersedes: 92906-06600-00
$0.90
You save $0.10
-15%
15
Yamaha Motors
Flange Bolt95817-06012-00
Required: 2
BOLT, FLANGE
Supersedes: 95811-06012-00
In stock
Only 2 remaining
$1.66
You save $0.29
-10%
No longer availableSearch Nationwide Inventory
$1.04
You save $0.11
-50%
17
Yamaha Motors
Spring Washer92907-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92906-06100-00
In stock
Only 1 remaining
$0.65
You save $0.65
-10%
$9.44
You save $1.05
-10%
$8.54
You save $0.95
-20%
In stock
Only 5 remaining
$5.99
You save $1.50
-10%
21
Yamaha Motors
Plate Washer90202-06113-00
Required: 4
WASHER, PLATE
$4.94
You save $0.55
-20%
22
Yamaha Motors
SCREW (3YF)90149-05299-00
Required: 4
SCREW
Supersedes: 90149-05224-00
In stock
5+ in stock
$3.56
You save $0.89
23
Yamaha Motors
PANEL ASSEMBLY 13CK-Y283U-40
Required: 1
PANEL ASSEMBLY 1
Price unavailable
24
Yamaha Motors
. GRAPHIC SET 3, COWLING3NR-2836V-00
Required: 1
. GRAPHIC SET 3, COWLING
Price unavailable
24
Yamaha Motors
. GRAPHIC SET 3, COWLING3CK-2836V-00
Required: 1
. GRAPHIC SET 3, COWLING
Price unavailable
25
Yamaha Motors
PANEL ASSEMBLY 23CK-Y283V-50
Required: 1
PANEL ASSEMBLY 2
Price unavailable
25
Yamaha Motors
PANEL ASSEMBLY 23CK-Y283V-40
Required: 1
PANEL ASSEMBLY 2
Price unavailable
26
Yamaha Motors
. GRAPHIC SET 4, COWLING3CK-2836W-00
Required: 1
. GRAPHIC SET 4, COWLING
Price unavailable
26
Yamaha Motors
. GRAPHIC SET 4, COWLING3NR-2836W-00
Required: 1
. GRAPHIC SET 4, COWLING
Price unavailable
-10%
27
Yamaha Motors
BOLT,HEX. SOCKET BUTTON90111-05059-00
Required: 4
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-05079-00
$2.52
You save $0.28
-10%
28
Yamaha Motors
Plate Washer90202-06113-00
Required: 4
WASHER, PLATE
$4.94
You save $0.55
-10%
$9.89
You save $1.10
30
Yamaha Motors
STAY 22YK-28322-00
Required: 2
STAY 2
Price unavailable
-10%
31
Yamaha Motors
Pan Head Screw98511-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98501-06012-00
No longer availableSearch Nationwide Inventory
$2.07
You save $0.23
-15%
32
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
Supersedes: 92901-06600-00
In stock
5+ in stock
$2.51
You save $0.44
-10%
No longer availableSearch Nationwide Inventory
$4.94
You save $0.55
-10%
No longer availableSearch Nationwide Inventory
$1.71
You save $0.19
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
