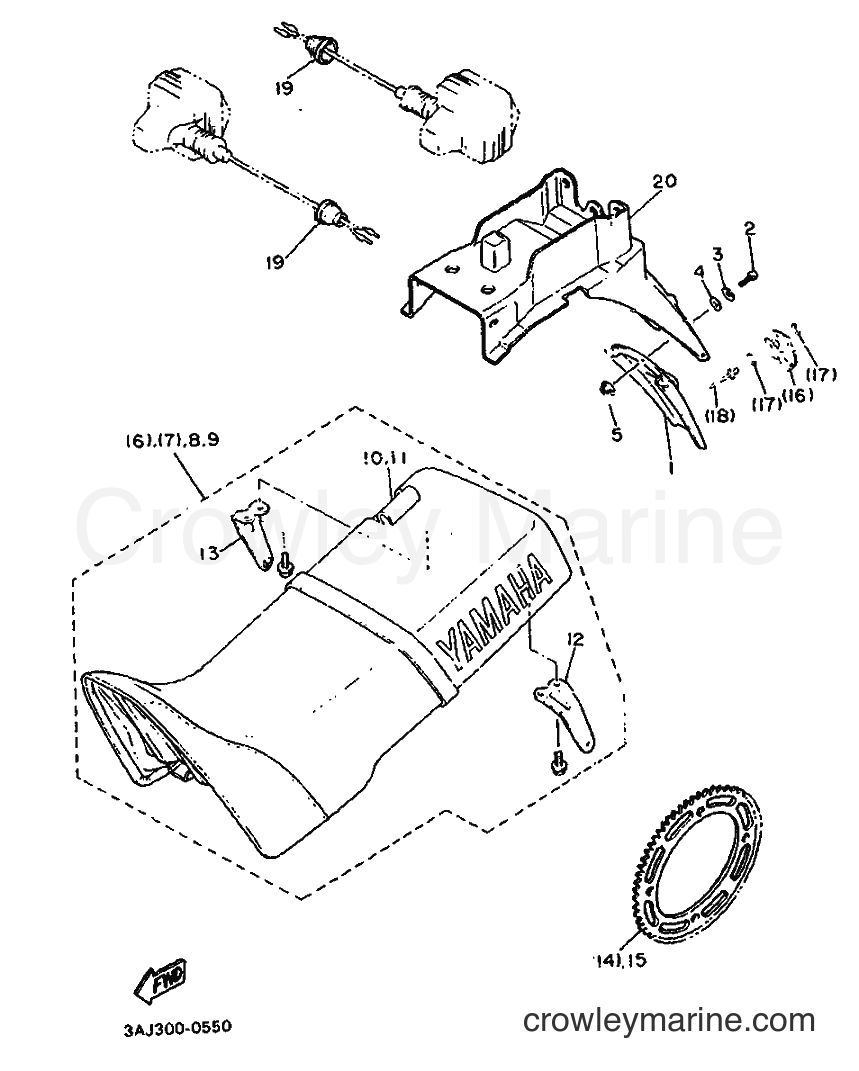

1990 Dirt Bike XT600Z - XT600Z (3DS3) [999] ALTERNATE FOR CHASSIS diagram
![Yamaha Motors XT600Z (3DS3) [999] - ALTERNATE FOR CHASSIS](https://cdn.crowleymarine.com/yamaha/DkNrWl6U.png)
1
Yamaha Motors
FLAP1VJ-21621-00
Required: 1
FLAP
Price unavailable
-10%
2
Yamaha Motors
98507-04018-0098506-04018-00
Required: 3
SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
$0.72
You save $0.08
-10%
3
Yamaha Motors
WASHER92907-04100-00
Required: 3
WASHER, SPRING
Supersedes: 92906-04100-00
$8.54
You save $0.95
-10%
4
Yamaha Motors
Washer92907-04600-00
Required: 3
WASHER, PLATE
Supersedes: 92906-04600-00
$1.67
You save $0.19
-10%
5
Yamaha Motors
Flange Nut95701-04500-00
Required: 3
NUT, FLANGE
Supersedes: 95702-04500-00
No longer availableSearch Nationwide Inventory
$0.99
You save $0.11
6
Yamaha Motors
SEMI-DOUBLE SEAT ASSY3AJ-24770-00
Required: 1
SEMI-DOUBLE SEAT ASSY
Price unavailable
7
Yamaha Motors
SEMI-DOUBLE SEAT ASSY3AJ-24770-10
Required: 1
SEMI-DOUBLE SEAT ASSY
Price unavailable
8
Yamaha Motors
SEMI-DOUBLE SEAT ASSY3DS-24770-00
Required: 1
SEMI-DOUBLE SEAT ASSY
Price unavailable
9
Yamaha Motors
SEMI-DOUBLE SEAT ASSY3DS-24770-10
Required: 1
SEMI-DOUBLE SEAT ASSY
Price unavailable
10
Yamaha Motors
. COVER, SEAT1VK-24731-10
Required: 1
. COVER, SEAT
Price unavailable
11
Yamaha Motors
. COVER, SEAT1VK-24731-00
Required: 1
. COVER, SEAT
Price unavailable
12
Yamaha Motors
. BRACKET, SEAT3AJ-24738-00
Required: 1
. BRACKET, SEAT
Price unavailable
13
Yamaha Motors
. BRACKET, SEAT3AJ-24748-00
Required: 1
. BRACKET, SEAT
Price unavailable
-10%
14
Yamaha Motors
Driven Sprocket (45 Teeth)4DN-25445-30-00
Required: 1
SPROCKET, DRIVEN
Supersedes: 2UJ-25445-50-33
$45.89
You save $5.10
15
Yamaha Motors
SPROCKET, DRIVEN3DS-25443-50-33
Required: 1
SPROCKET, DRIVEN
Price unavailable
-10%
16
Yamaha Motors
33G-85132-02-0033G-85132-01-00
Required: 1
BRACKET, REFLECTOR 1
Supersedes: 33G-85132-00-00
No longer availableSearch Nationwide Inventory
$6.74
You save $0.75
-10%
17
Yamaha Motors
Plate Washer90201-044H9-00
Required: 1
WASHER, PLATE
Supersedes: 90201-044A2-00
$8.54
You save $0.95
-10%
$8.54
You save $0.95
-10%
$19.79
You save $2.20
20
Yamaha Motors
BRACKET, LICENSE1VJ-21685-11
Required: 1
BRACKET, LICENSE
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
