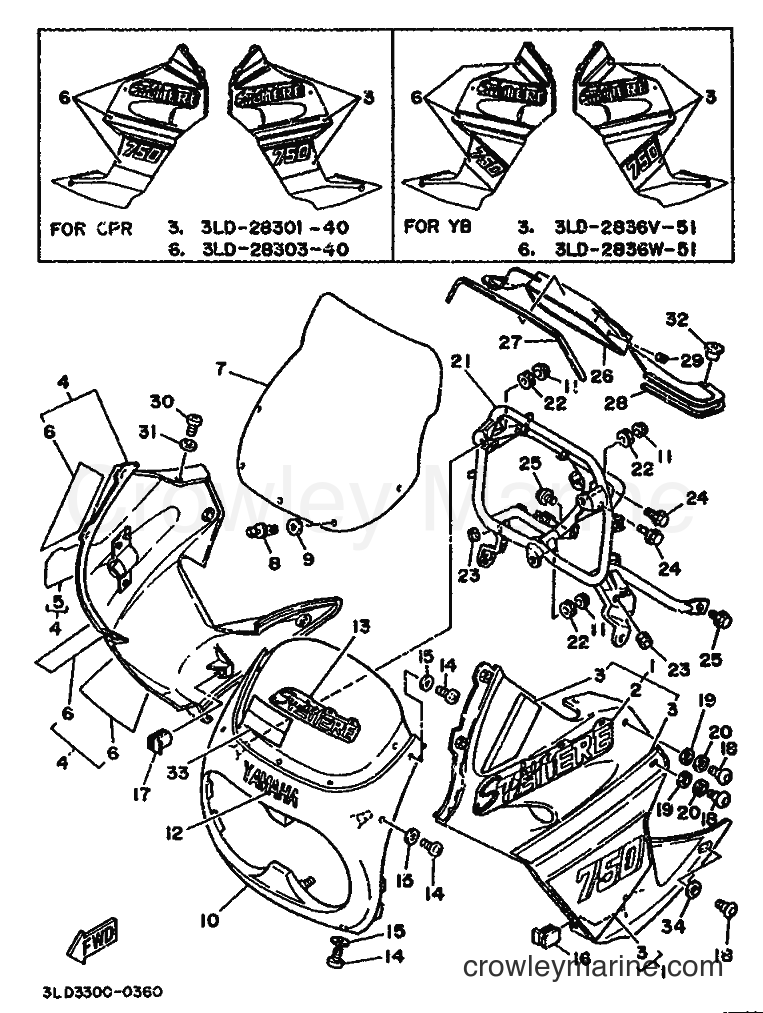

1990 Dirt Bike XTZ750 - XTZ750 (3TD2) [999] COWLING 1 diagram
![Yamaha Motors XTZ750 (3TD2) [999] - COWLING 1](https://cdn.crowleymarine.com/yamaha/TZ7dCXDY.png)
1
Yamaha Motors
PANEL ASSEMBLY 13LD-Y283U-40-4X
Required: 1
PANEL ASSEMBLY 1
Price unavailable
1
Yamaha Motors
PANEL ASSEMBLY 13LD-Y283U-52-GE
Required: 1
PANEL ASSEMBLY 1
Price unavailable
1
Yamaha Motors
PANEL ASSEMBLY 13LD-Y283U-30-33
Required: 1
PANEL ASSEMBLY 1
Price unavailable
2
Yamaha Motors
. EMBLEM3LD-28328-51
Required: 1
. EMBLEM
Price unavailable
2
Yamaha Motors
. EMBLEM3LD-28328-40
Required: 1
. EMBLEM
Price unavailable
2
Yamaha Motors
. EMBLEM3LD-28328-30
Required: 1
. EMBLEM
Price unavailable
3
Yamaha Motors
. GRAPHIC SET 3, COWLING3LD-2836V-51
Required: 1
. GRAPHIC SET 3, COWLING
Price unavailable
3
Yamaha Motors
. GRAPHIC SET, LOWER COVER 13LD-28301-40
Required: 1
. GRAPHIC SET, LOWER COVER 1
Price unavailable
3
Yamaha Motors
. GRAPHIC SET, LOWER COVER 13LD-28301-30
Required: 1
. GRAPHIC SET, LOWER COVER 1
Price unavailable
4
Yamaha Motors
PANEL ASSEMBLY 23LD-Y283V-52-GE
Required: 1
PANEL ASSEMBLY 2
Price unavailable
4
Yamaha Motors
PANEL ASSEMBLY 23LD-Y283V-40-4X
Required: 1
PANEL ASSEMBLY 2
Price unavailable
4
Yamaha Motors
PANEL ASSEMBLY 23LD-Y283V-30-33
Required: 1
PANEL ASSEMBLY 2
Price unavailable
5
Yamaha Motors
. EMBLEM3LD-28328-51
Required: 1
. EMBLEM
Price unavailable
5
Yamaha Motors
. EMBLEM3LD-28328-30
Required: 1
. EMBLEM
Price unavailable
5
Yamaha Motors
. EMBLEM3LD-28328-40
Required: 1
. EMBLEM
Price unavailable
6
Yamaha Motors
. GRAPHIC SET, LOWER COVER 23LD-28303-40
Required: 1
. GRAPHIC SET, LOWER COVER 2
Price unavailable
6
Yamaha Motors
. GRAPHIC SET 4, COWLING3LD-2836W-51
Required: 1
. GRAPHIC SET 4, COWLING
Price unavailable
6
Yamaha Motors
. GRAPHIC SET, LOWER COVER 23LD-28303-30
Required: 1
. GRAPHIC SET, LOWER COVER 2
Price unavailable
7
Yamaha Motors
WINDSHIELD3LD-28381-00
Required: 1
WINDSHIELD
Price unavailable
-10%
$2.66
You save $0.29
9
Yamaha Motors
Plate Washer92907-05600-00
Required: 5
WASHER, PLATE
Supersedes: 92906-05600-00
$1.98
10
Yamaha Motors
BODY, COWLING3LD-28351-00-VA
Required: 1
BODY, COWLING
Price unavailable
10
Yamaha Motors
BODY, COWLING3LD-28351-00-33
Required: 1
BODY, COWLING
Price unavailable
10
Yamaha Motors
BODY, COWLING3LD-28351-00-GE
Required: 1
BODY, COWLING
Price unavailable
-10%
$6.29
You save $0.70
-10%
12
Yamaha Motors
99246-00100-0099236-00100-00
Required: 1
EMBLEM, YAMAHA
Supersedes: 99236-00025-00
No longer availableSearch Nationwide Inventory
$9.44
You save $1.05
-10%
12
Yamaha Motors
YAMAHA EMBLEM99244-00100-00
Required: 1
EMBLEM, YAMAHA
Supersedes: 99234-00025-00
$20.69
You save $2.30
-10%
12
Yamaha Motors
YAMAHA EMBLEM99241-00100-00
Required: 1
EMBLEM, YAMAHA
Supersedes: 99231-00025-00
$4.05
You save $0.45
13
Yamaha Motors
EMBLEM3LD-28315-51
Required: 1
EMBLEM
Price unavailable
13
Yamaha Motors
EMBLEM3LD-28315-30
Required: 1
EMBLEM
Price unavailable
13
Yamaha Motors
EMBLEM3LD-28315-40
Required: 1
EMBLEM
Price unavailable
-20%
14
Yamaha Motors
SCREW (3YF)90149-05299-00
Required: 6
SCREW
Supersedes: 90149-05224-00
In stock
5+ in stock
$3.56
You save $0.89
-10%
15
Yamaha Motors
Plate Washer90202-05180-00
Required: 6
WASHER, PLATE
$10.34
You save $1.15
16
Yamaha Motors
GROMMET90480-16515
Required: 1
GROMMET
Price unavailable
17
Yamaha Motors
GROMMET90480-16515
Required: 1
GROMMET
Price unavailable
18
Yamaha Motors
BOLT, LEG SHIELD3LD-28331-00
Required: 6
BOLT, LEG SHIELD
Price unavailable
19
Yamaha Motors
WASHER3LD-28319-00
Required: 4
WASHER
Price unavailable
-15%
20
Yamaha Motors
Plate Washer92990-08600-00
Required: 4
WASHER, PLATE
Supersedes: 92901-08600-00
In stock
5+ in stock
$2.38
You save $0.42
21
Yamaha Motors
STAY 13LD-28356-01
Required: 1
STAY 1
Price unavailable
-10%
$8.54
You save $0.95
-10%
$7.19
You save $0.80
24
Yamaha Motors
BOLT, FLANGE91026-08030
Required: 2
BOLT, FLANGE
Price unavailable
25
Yamaha Motors
BOLT, FLANGE91026-08012
Required: 2
BOLT, FLANGE
Price unavailable
26
Yamaha Motors
PANEL, CONSOLE 23LD-2837M-00
Required: 1
PANEL, CONSOLE 2
Price unavailable
27
Yamaha Motors
DAMPER3LD-28371-00
Required: 1
DAMPER
Price unavailable
28
Yamaha Motors
MOLE 13LD-28345-00
Required: 2
MOLE 1
Price unavailable
-10%
29
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-13014-00
Required: 2
GROMMET
Supersedes: 90480-13398-00
$8.54
You save $0.95
-20%
30
Yamaha Motors
SCREW (3YF)90149-05299-00
Required: 2
SCREW
Supersedes: 90149-05224-00
In stock
5+ in stock
$3.56
You save $0.89
-10%
31
Yamaha Motors
Plate Washer90202-05180-00
Required: 2
WASHER, PLATE
$10.34
You save $1.15
-20%
In stock
Only 5 remaining
$5.99
You save $1.50
-10%
33
Yamaha Motors
Caution Label3JJ-2835Y-10-00
Required: 1
LABEL, CAUTION
No longer availableSearch Nationwide Inventory
$4.86
You save $0.54
-10%
33
Yamaha Motors
Caution Label3JJ-2835Y-00-00
Required: 1
LABEL, CAUTION
No longer availableSearch Nationwide Inventory
$15.74
You save $1.75
-10%
34
Yamaha Motors
Plate Washer90202-08146-00
Required: 2
WASHER, PLATE
$10.34
You save $1.15
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
