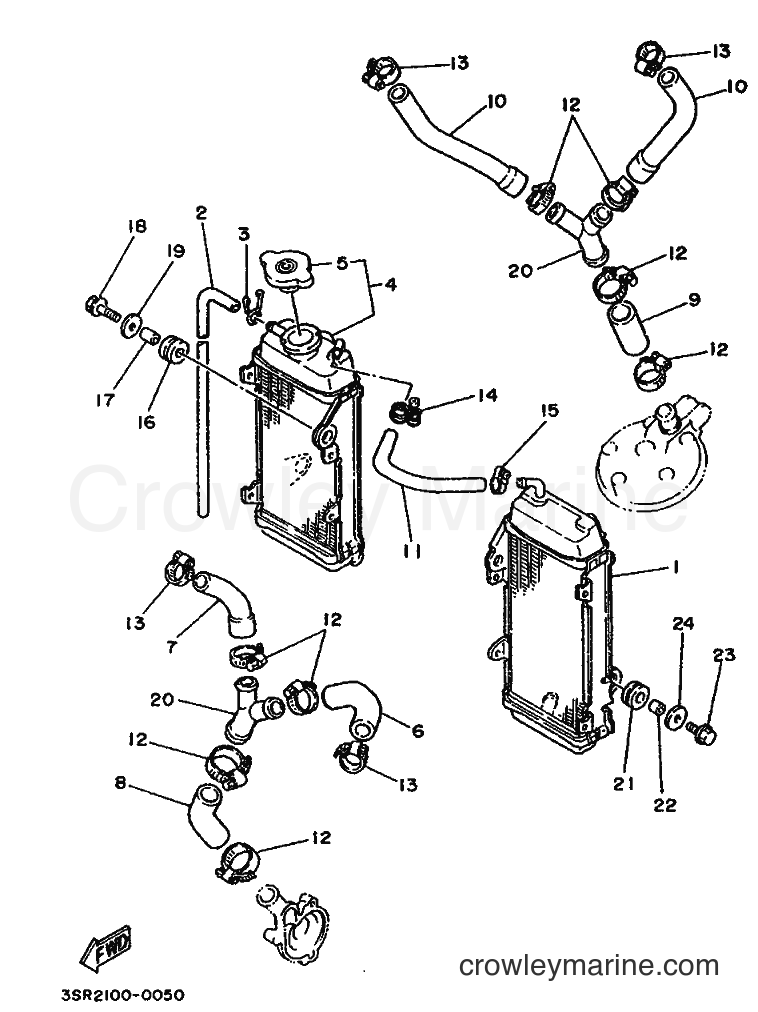

1990 Dirt Bike YZ125 - YZ125 (3SR3) [999] RADIATOR & HOSE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Yamaha Motors YZ125 (3SR3) [999] - RADIATOR & HOSE

Change View:

-10%

Yamaha Motors

Radiator Assembly3JD-1240A-00-00

Required: 1

RADIATOR ASSY

No longer availableSearch Nationwide Inventory

~~$939.99~~

$845.99

You save $94.00

More details

-10%

Yamaha Motors

91A20-05080-0091A20-05065-00

Required: 1

HOSE

Supersedes: 90446-09013-00

No longer availableSearch Nationwide Inventory

~~$7.99~~

$7.19

You save $0.80

-10%

CLIP

Supersedes: 90467-09006-00

~~$4.75~~

$4.28

You save $0.47

More details

-10%

Yamaha Motors

Radiator Assembly3XP-12461-00-00

Required: 1

RADIATOR ASSY

Supersedes: 1LX-1240A-00-00

No longer availableSearch Nationwide Inventory

~~$393.99~~

$354.59

You save $39.40

More details

-10%

Yamaha Motors

Radiator Cap4FL-12462-00-00

Required: 1

. CAP, RADIATOR

Supersedes: 22W-12462-00-00

~~$68.99~~

$62.09

You save $6.90

-10%

PIPE 1

No longer availableSearch Nationwide Inventory

~~$27.99~~

$25.19

You save $2.80

More details

-10%

Yamaha Motors

Pipe 23JD-12482-00-00

Required: 1

PIPE 2

No longer availableSearch Nationwide Inventory

~~$22.99~~

$20.69

You save $2.30

-10%

PIPE 3

No longer availableSearch Nationwide Inventory

~~$34.99~~

$31.49

You save $3.50

-10%

PIPE 5

Supersedes: 3JD-12485-00-00

No longer availableSearch Nationwide Inventory

~~$12.99~~

$11.69

You save $1.30

More details

-10%

Yamaha Motors

Pipe 63JD-12476-00-00

Required: 2

PIPE 6

No longer availableSearch Nationwide Inventory

~~$30.99~~

$27.89

You save $3.10

-10%

PIPE 8

Supersedes: 1LU-1248A-01-00

No longer availableSearch Nationwide Inventory

~~$13.99~~

$12.59

You save $1.40

More details

Yamaha Motors

HOSE CLAMP ASSY90450-18014

Required: 8

HOSE CLAMP ASSY

Price unavailable

-10%

Yamaha Motors

90450-22M14-0090450-25037-00

Required: 4

HOSE CLAMP ASSY

Supersedes: 90450-22017-00

No longer availableSearch Nationwide Inventory

~~$10.99~~

$9.89

You save $1.10

More details

-10%

Yamaha Motors

Hose Clamp Assembly90450-15041-00

Required: 1

HOSE CLAMP ASSY

No longer availableSearch Nationwide Inventory

~~$7.99~~

$7.19

You save $0.80

More details

-10%

Yamaha Motors

Hose Clamp Assembly90450-14M05-00

Required: 1

HOSE CLAMP ASSY

Supersedes: 90450-17036-00

~~$19.49~~

$17.54

You save $1.95

More details

-10%

Yamaha Motors

Grommet90480-15064-00

Required: 2

GROMMET

~~$10.49~~

$9.44

You save $1.05

-10%

COLLAR

~~$2.75~~

$2.48

You save $0.27

More details

-10%

Yamaha Motors

Flange Bolt95024-06030-00

Required: 2

BOLT, FLANGE

Supersedes: 95023-06030-00

~~$9.49~~

$8.54

You save $0.95

More details

-10%

Yamaha Motors

Plate Washer90201-06570-00

Required: 2

WASHER, PLATE

~~$11.49~~

$10.34

You save $1.15

-10%

JOINT 1

No longer availableSearch Nationwide Inventory

~~$22.99~~

$20.69

You save $2.30

More details

-10%

Yamaha Motors

GROMMET, WATER TUBE (UPPER)90480-18276-00

Required: 2

GROMMET

~~$9.49~~

$8.54

You save $0.95

-10%

COLLAR

~~$10.49~~

$9.44

You save $1.05

More details

-10%

Yamaha Motors

Flange Bolt95024-06020-00

Required: 2

BOLT, FLANGE

Supersedes: 95023-06020-00

~~$6.49~~

$5.84

You save $0.65

More details

-10%

Yamaha Motors

Plate Washer90201-06570-00

Required: 2

WASHER, PLATE

~~$11.49~~

$10.34

You save $1.15

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
