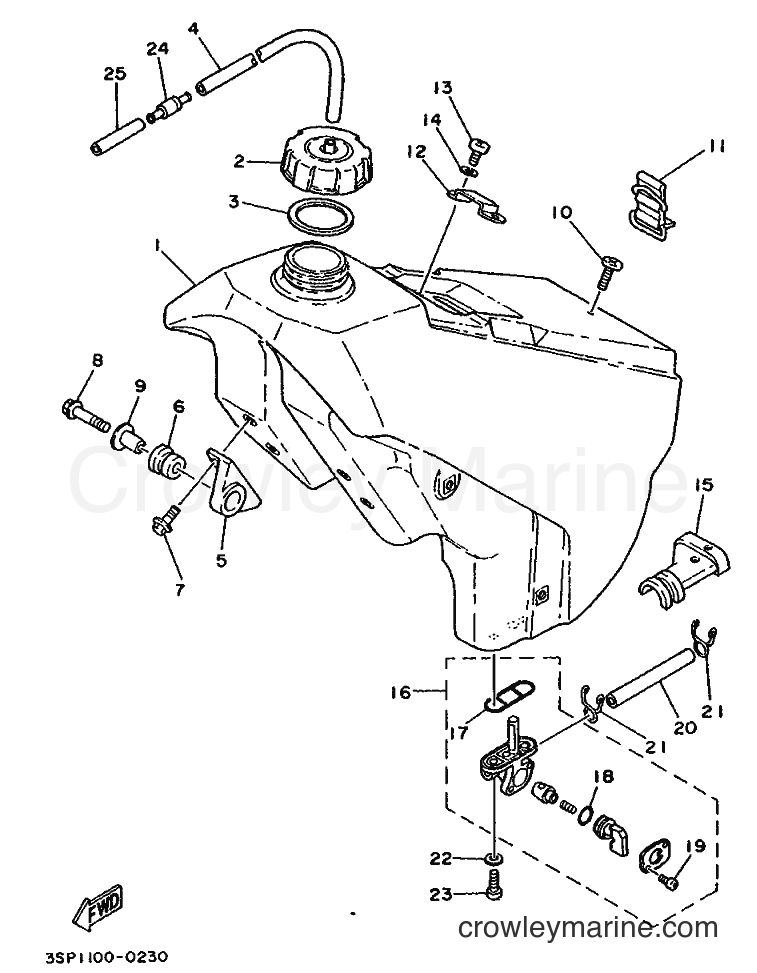

1990 Dirt Bike YZ250 - YZ250 (3SP2) [999] FUEL TANK diagram
![Yamaha Motors YZ250 (3SP2) [999] - FUEL TANK](https://cdn.crowleymarine.com/yamaha/u79cqMe4.png)
-10%
1
Yamaha Motors
Fuel Tank3SP-24110-00-00
Required: 1
FUEL TANK COMP.
No longer availableSearch Nationwide Inventory
$273.59
You save $30.40
-10%
No longer availableSearch Nationwide Inventory
$22.49
You save $2.50
-10%
$7.64
You save $0.85
-15%
4
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE
Supersedes: 90445-09100-00
In stock
Only 2 remaining
$10.62
You save $1.87
-10%
5
Yamaha Motors
Damper Holder5XE-24144-00-00
Required: 2
HOLDER, DAMPER
Supersedes: 24X-24144-00-00
$23.39
You save $2.60
-10%
$10.34
You save $1.15
-10%
No longer availableSearch Nationwide Inventory
$1.89
You save $0.21
-10%
8
Yamaha Motors
FLANGE BOLT 94BH)95024-06035-00
Required: 2
BOLT, FLANGE
Supersedes: 95023-06035-00
$9.44
You save $1.05
-10%
9
Yamaha Motors
Special Washer3JD-24186-00-00
Required: 2
WASHER, SPECIAL
$13.04
You save $1.45
-10%
$8.54
You save $0.95
-10%
11
Yamaha Motors
TANK FITTING BAND3SP-24173-00-00
Required: 1
BAND, TANK FITTING 1
$22.49
You save $2.50
-10%
No longer availableSearch Nationwide Inventory
$11.69
You save $1.30
-10%
13
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 92501-06012-00
$3.69
You save $0.41
-15%
14
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-10%
15
Yamaha Motors
Locating Damper1LX-24181-00-00
Required: 1
DAMPER, LOCATING 1
No longer availableSearch Nationwide Inventory
$31.49
You save $3.50
-20%
16
Yamaha Motors
Fuel Cock Assembly2VN-24500-02-00
Required: 1
FUEL COCK ASSY 1
Supersedes: 2VN-24500-00-00
In stock
Only 1 remaining
$47.19
You save $11.80
-10%
$8.54
You save $0.95
-50%
In stock
Only 1 remaining
$7.24
You save $7.24
-10%
19
Yamaha Motors
98501-03008-0098503-03008-00
Required: 2
. SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
$0.90
You save $0.10
-10%
20
Yamaha Motors
Hose90445-11293-00
Required: 1
HOSE
Supersedes: 90445-11708-00
$9.44
You save $1.05
-10%
21
Yamaha Motors
Clip90467-100A1-00
Required: 2
CLIP
Supersedes: 90467-10008-00
$7.64
You save $0.85
-20%
22
Yamaha Motors
Plate Washer90202-05187-00
Required: 2
WASHER, PLATE
Supersedes: 90202-06010-00
In stock
Only 4 remaining
$1.36
You save $0.34
-10%
24
Yamaha Motors
PIPE JOINT ASSEMBLY4A0-24380-00-00
Required: 1
PIPE JOINT ASSY
No longer availableSearch Nationwide Inventory
$54.89
You save $6.10
-10%
25
Yamaha Motors
Hose90445-09078-00
Required: 1
HOSE
Supersedes: 90445-09058-00
No longer availableSearch Nationwide Inventory
$7.19
You save $0.80
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
