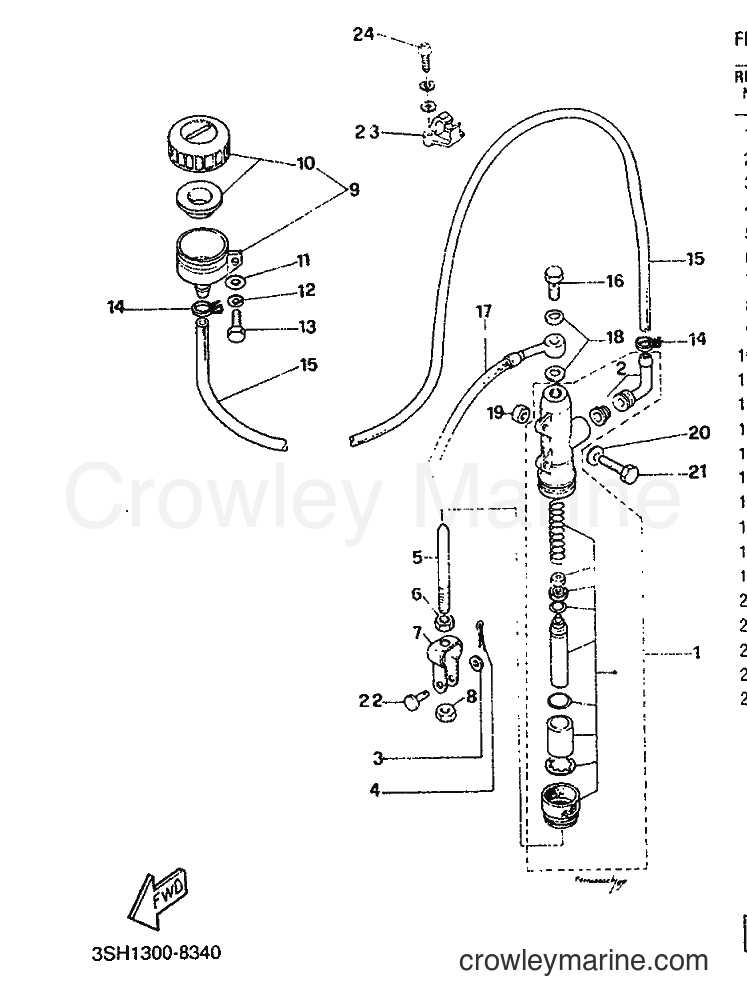

1991 Dirt Bike TDR125 - TDR125 (3XD1) [999] REAR MASTER CYLINDER diagram
![Yamaha Motors TDR125 (3XD1) [999] - REAR MASTER CYLINDER](https://cdn.crowleymarine.com/yamaha/yXwWwyGr.png)
1
Yamaha Motors
REAR MASTER CYLINDER ASSY3SH-F580E-00
Required: 1
REAR MASTER CYLINDER ASSY
Price unavailable
2
Yamaha Motors
. JOINT3SH-F582A-00
Required: 1
. JOINT
Price unavailable
-10%
3
Yamaha Motors
Plate Washer90201-08083-00
Required: 1
WASHER, PLATE
$9.44
You save $1.05
-10%
4
Yamaha Motors
Cotter Pin91490-16020-00
Required: 1
PIN, COTTER
Supersedes: 91401-16012-00
$6.29
You save $0.70
5
Yamaha Motors
ROD, BRAKE3SH-F7231-00
Required: 1
ROD, BRAKE
Price unavailable
-15%
6
Yamaha Motors
Nut95333-08600-00
Required: 1
NUT
Supersedes: 95303-08600-00
$3.23
You save $0.57
7
Yamaha Motors
JOINT3SH-F7222-00
Required: 1
JOINT
Price unavailable
-15%
8
Yamaha Motors
Nut95333-08600-00
Required: 1
NUT
Supersedes: 95303-08600-00
$3.23
You save $0.57
9
Yamaha Motors
CAP, RESERVOIR3SH-F5852-20
Required: 1
CAP, RESERVOIR
Price unavailable
10
Yamaha Motors
CAP, RESERVOIR3SH-F5852-50
Required: 1
CAP, RESERVOIR
Price unavailable
-15%
11
Yamaha Motors
Plain Washer92990-06200-00
Required: 2
WASHER
Supersedes: 92902-06200-00
In stock
5+ in stock
$0.85
You save $0.15
-15%
12
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
Supersedes: 92902-06100-00
In stock
5+ in stock
$3.02
You save $0.53
13
Yamaha Motors
SCREW, WITH WASHER90159-06020
Required: 1
SCREW, WITH WASHER
Price unavailable
-10%
$10.34
You save $1.15
15
Yamaha Motors
HOSE, RESERVOIR3SH-F5895-00
Required: 1
HOSE, RESERVOIR
Price unavailable
-10%
16
Yamaha Motors
Union Bolt (3GM)90401-10159-00
Required: 2
BOLT, UNION
Supersedes: 90401-10034-00
$11.24
You save $1.25
17
Yamaha Motors
HOSE, BRAKE 23SH-F5873-00
Required: 1
HOSE, BRAKE 2
Price unavailable
-20%
18
Yamaha Motors
Plate Washer90201-10118-00
Required: 4
WASHER, PLATE
In stock
Only 5 remaining
$3.04
You save $0.76
19
Yamaha Motors
NUT, FLANGE95712-06300
Required: 2
NUT, FLANGE
Price unavailable
-10%
20
Yamaha Motors
Plate Washer92907-06600-00
Required: 2
WASHER, PLATE
Supersedes: 92906-06600-00
$0.90
You save $0.10
-10%
21
Yamaha Motors
Button Bolt92017-06020-00
Required: 2
BOLT, BUTTON HEAD
Supersedes: 92011-06020-00
$3.65
You save $0.40
-10%
$7.64
You save $0.85
-10%
23
Yamaha Motors
Brake Hose Holder 23BN-25876-00-00
Required: 2
HOLDER, BRAKE HOSE 2
$6.74
You save $0.75
24
Yamaha Motors
SCREW, PAN HEAD WITH WASHER97601-05320
Required: 4
SCREW, PAN HEAD WITH WASHER
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
