1991 Dirt Bike TDR125 - TDR125 (3XD1) [999] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

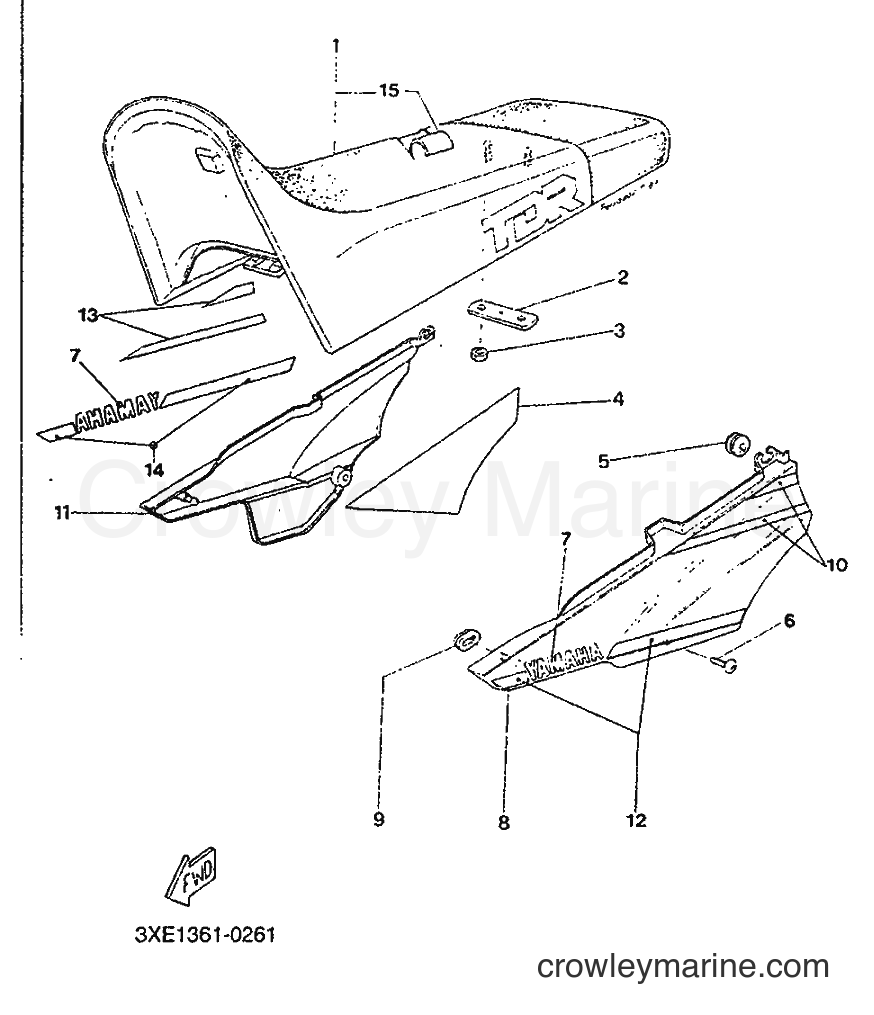

Yamaha Motors TDR125 (3XD1) [999] - SEAT
Change View:
DOUBLE SEAT ASSY
1
Yamaha Motors
DOUBLE SEAT ASSY3XE-F4730-10
Required: 1
DOUBLE SEAT ASSY
Price unavailable
. BRACKET
2
Yamaha Motors
. BRACKET3SH-F4740-00
Required: 1
. BRACKET
Price unavailable
NUT, FLANGE
3
Yamaha Motors
NUT, FLANGE95712-06300
Required: 2
NUT, FLANGE
Price unavailable
INSULATOR, SIDE COVER 2
4
Yamaha Motors
INSULATOR, SIDE COVER 23SH-F174T-00
Required: 1
INSULATOR, SIDE COVER 2
Price unavailable
-10%
GROMMET, WATER TUBE (UPPER)
5
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-12325-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
BOLT, HEXAGON SOCKET HEAD
6
Yamaha Motors
BOLT, HEXAGON SOCKET HEAD90110-06015
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
BRACKET 2
7
Yamaha Motors
BRACKET 23XE-F172L-10
Required: 2
BRACKET 2
Price unavailable
COVER, SIDE 1
8
Yamaha Motors
COVER, SIDE 13SH-F1711-00
Required: 1
COVER, SIDE 1
Price unavailable
GROMMET
9
Yamaha Motors
GROMMET90480-01141
Required: 2
GROMMET
Price unavailable
GRAPHIC SET 1
10
Yamaha Motors
GRAPHIC SET 13XE-F173L-00
Required: 1
GRAPHIC SET 1
Price unavailable
COVER, SIDE 2
11
Yamaha Motors
COVER, SIDE 23SH-F1721-00
Required: 1
COVER, SIDE 2
Price unavailable
COVER, TOP
12
Yamaha Motors
COVER, TOP3XE-F171A-00
Required: 1
COVER, TOP
Price unavailable
GRAPHIC SET 2
13
Yamaha Motors
GRAPHIC SET 23XE-F174L-00
Required: 1
GRAPHIC SET 2
Price unavailable
PANEL 1
14
Yamaha Motors
PANEL 13XE-F172A-00
Required: 1
PANEL 1
Price unavailable
COVER, SEAT
15
Yamaha Motors
COVER, SEAT3XE-F4731-10
Required: 1
COVER, SEAT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
