1991 Dirt Bike TDR125 - TDR125 (3XD1) [999] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

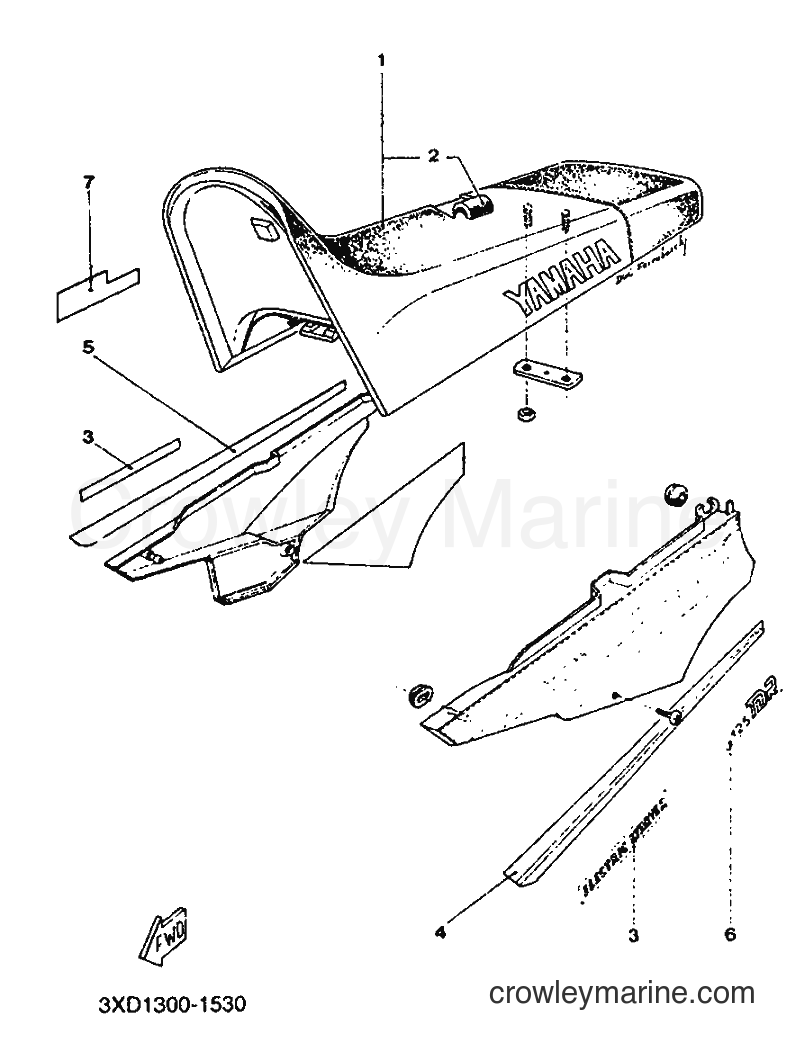

Yamaha Motors TDR125 (3XD1) [999] - SEAT
Change View:
DOUBLE SEAT ASSY
1
Yamaha Motors
DOUBLE SEAT ASSY3SH-F4730-40
Required: 1
DOUBLE SEAT ASSY
Price unavailable
. COVER, SEAT
2
Yamaha Motors
. COVER, SEAT3SH-F4731-40
Required: 1
. COVER, SEAT
Price unavailable
EMBLEM 3
3
Yamaha Motors
EMBLEM 33SH-F1783-10
Required: 2
EMBLEM 3
Price unavailable
COVER, TOP
4
Yamaha Motors
COVER, TOP3XD-F171A-00
Required: 1
COVER, TOP
Price unavailable
PANEL 1
5
Yamaha Motors
PANEL 13XD-F172A-00
Required: 1
PANEL 1
Price unavailable
EMBLEM 5
6
Yamaha Motors
EMBLEM 53SH-F1785-10
Required: 1
EMBLEM 5
Price unavailable
EMBLEM 6
7
Yamaha Motors
EMBLEM 63SH-F1786-10
Required: 1
EMBLEM 6
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
