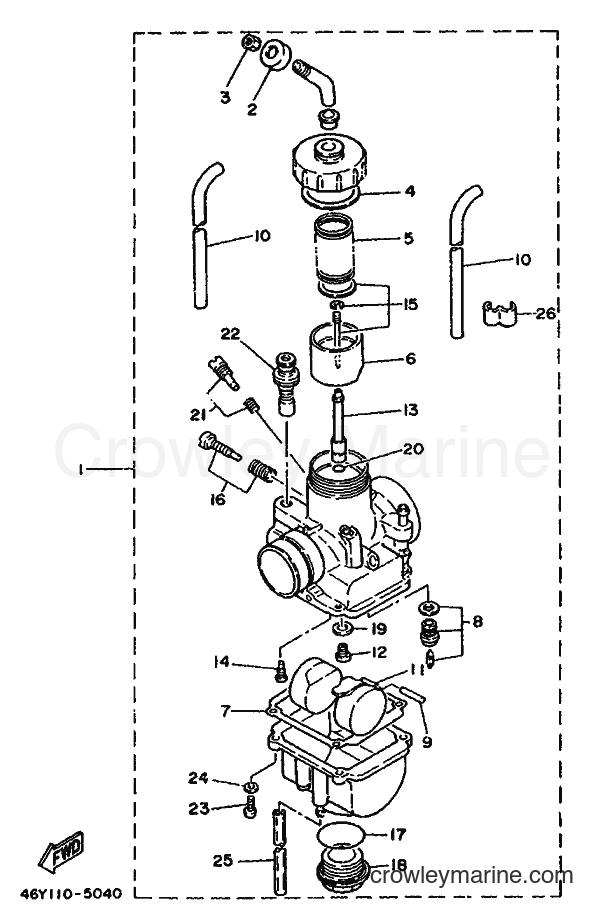

1991 Dirt Bike TY250R - TY250R (4AJ2) [999] CARBURETOR diagram
![Yamaha Motors TY250R (4AJ2) [999] - CARBURETOR](https://cdn.crowleymarine.com/yamaha/mMgFZNVW.png)
1
Yamaha Motors
CARBURETOR ASSY 13BB-14301-00
Required: 1
CARBURETOR ASSY 1
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$17.54
You save $1.95
-10%
3
Yamaha Motors
CABLE ADJUSTMENT NUT85L-14161-00-00
Required: 1
. NUT, CABLE ADJUSTING
Supersedes: 288-14161-00-00
No longer availableSearch Nationwide Inventory
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$5.45
You save $0.61
-10%
5
Yamaha Motors
THROTTLE VALVE SPRING434-14331-00-00
Required: 1
. SPRING, THROTTLE VALVE
No longer availableSearch Nationwide Inventory
$23.39
You save $2.60
-10%
6
Yamaha Motors
THROTTLE VALVE1LW-14312-25-00
Required: 1
. VALVE, THROTTLE 1
No longer availableSearch Nationwide Inventory
$85.49
You save $9.50
-10%
7
Yamaha Motors
Float Chamber Gasket4ML-14384-00-00
Required: 1
. GASKET, FLOAT CHAMBER
Supersedes: 434-14384-00-00
$17.99
You save $2.00
-10%
8
Yamaha Motors
Needle Valve Set46Y-14107-00-00
Required: 1
. NEEDLE VALVE ASSY
Supersedes: 38V-14390-20-00
$44.99
You save $5.00
-15%
9
Yamaha Motors
Float Pin647-14386-10-00
Required: 1
. PIN, FLOAT
Supersedes: 647-14386-00-00
In stock
Only 1 remaining
$1.74
You save $0.31
-10%
10
Yamaha Motors
367-14396-00-00367-14396-01-00
Required: 2
. PIPE
Supersedes: 4U1-14396-00-00
No longer availableSearch Nationwide Inventory
$3.60
You save $0.40
-10%
No longer availableSearch Nationwide Inventory
$6.17
You save $0.69
-10%
$11.69
You save $1.30
-10%
$10.79
You save $1.20
-10%
$10.79
You save $1.20
-10%
$10.79
You save $1.20
-10%
12
Yamaha Motors
Main Jet288-14329-75-00
Required: 1
. JET, MAIN
Supersedes: 288-14343-75-00
No longer availableSearch Nationwide Inventory
$5.84
You save $0.65
13
Yamaha Motors
. NOZZLE, MAIN53Y-14341-00
Required: 1
. NOZZLE, MAIN
Price unavailable
14
Yamaha Motors
. JET, PILOT38V-14342-21
Required: 1
. JET, PILOT
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$11.24
You save $1.25
-10%
16
Yamaha Motors
THROTTLE SCREW SET46Y-14103-00-00
Required: 1
. THROTTLE SCREW SET
No longer availableSearch Nationwide Inventory
$6.29
You save $0.70
-10%
$5.84
You save $0.65
-10%
18
Yamaha Motors
Drain Plug38V-14191-00-00
Required: 1
. PLUG, DRAIN
No longer availableSearch Nationwide Inventory
$16.19
You save $1.80
-10%
19
Yamaha Motors
MAIN JET WASHER38V-14153-00-00
Required: 1
. WASHER, MAIN JET
No longer availableSearch Nationwide Inventory
$6.29
You save $0.70
-10%
$9.89
You save $1.10
-10%
21
Yamaha Motors
Air Screw Kit46Y-14104-00-00
Required: 1
. AIR SCREW SET
$8.54
You save $0.95
-10%
22
Yamaha Motors
STARTER PLUNGER38V-14371-00-00
Required: 1
. PLUNGER, STARTER
No longer availableSearch Nationwide Inventory
$71.99
You save $8.00
-10%
23
Yamaha Motors
98580-04014-0098504-04014-00
Required: 4
. SCREW, PAN HEAD
Supersedes: 98503-04014-00
No longer availableSearch Nationwide Inventory
$1.80
You save $0.20
-15%
24
Yamaha Motors
Spring Washer92990-04100-00
Required: 4
. WASHER, SPRING
Supersedes: 92901-04100-00
In stock
5+ in stock
$0.81
You save $0.14
-10%
25
Yamaha Motors
367-14396-00-00367-14396-01-00
Required: 1
. PIPE
Supersedes: 38V-14396-01-00
No longer availableSearch Nationwide Inventory
$3.60
You save $0.40
-10%
$7.19
You save $0.80
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
