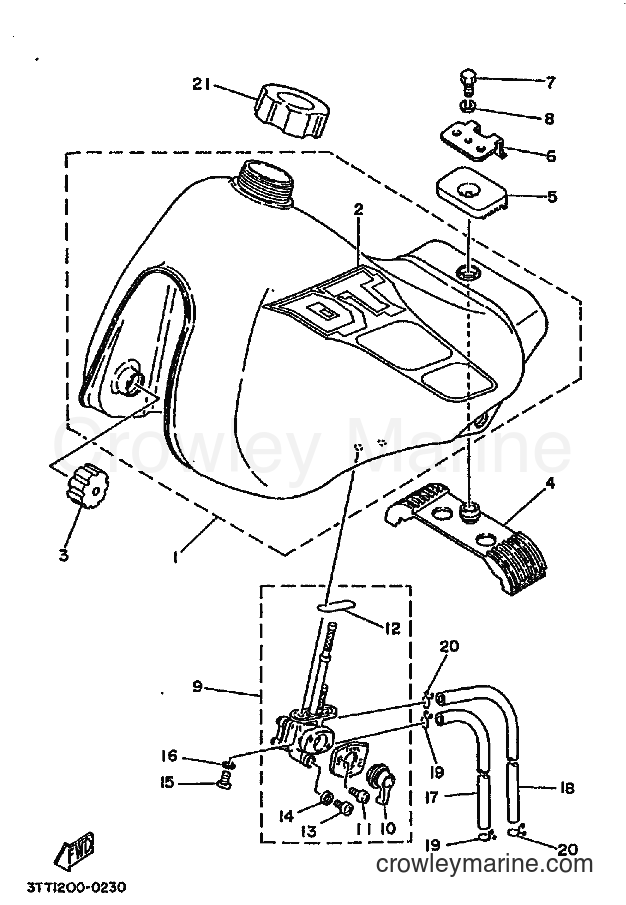

1992 Dirt Bike DT175 - DT175 (3FJ5) [010] FUEL TANK diagram
![Yamaha Motors DT175 (3FJ5) [010] - FUEL TANK](https://cdn.crowleymarine.com/yamaha/BKHEGUSo.png)
1
Yamaha Motors
FUEL TANK COMP (WHITE)18G-24110-00-W5
Required: 1
FUEL TANK COMP (WHITE)
Price unavailable
1
Yamaha Motors
FUEL TANK COMP (Y/BLACK)18G-24110-00-W4
Required: 1
FUEL TANK COMP (Y/BLACK)
Price unavailable
1
Yamaha Motors
FUEL TANK COMP (CHAPPY RED)18G-24110-00-W6
Required: 1
FUEL TANK COMP (CHAPPY RED)
Price unavailable
2
Yamaha Motors
GRAPHIC SET3TL-24240-00
Required: 2
GRAPHIC SET
Price unavailable
2
Yamaha Motors
GRAPHIC SET3TL-24240-20
Required: 2
GRAPHIC SET
Price unavailable
2
Yamaha Motors
GRAPHIC SET3TL-24240-10
Required: 2
GRAPHIC SET
Price unavailable
-10%
3
Yamaha Motors
Locating Damper3TB-24181-00-00
Required: 2
DAMPER, LOCATING 1
Supersedes: 278-24181-00-00
$13.94
You save $1.55
4
Yamaha Motors
DAMPER, LOCATING 218G-24182-00
Required: 1
DAMPER, LOCATING 2
Price unavailable
5
Yamaha Motors
DAMPER, LOCATING 318G-24183-01
Required: 1
DAMPER, LOCATING 3
Price unavailable
6
Yamaha Motors
WASHER, SPECIAL18G-24186-01
Required: 1
WASHER, SPECIAL
Price unavailable
-50%
7
Yamaha Motors
Bolt97013-06012-00
Required: 1
BOLT,KT100S/J RECOIL STARTER
Supersedes: 97003-06012-00
In stock
Only 3 remaining
$3.25
You save $3.25
-15%
8
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
C62 WASHER,SPRING P58
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
9
Yamaha Motors
FUEL COCK ASSY18G-24500-02
Required: 1
FUEL COCK ASSY
Price unavailable
-10%
10
Yamaha Motors
FUEL COCK VALVE SET10L-W0092-00-00
Required: 1
FUEL TAP,ROUND VALVE+2 O/RINGS
$29.69
You save $3.30
-10%
11
Yamaha Motors
Pan Head Screw98580-03008-00
Required: 2
SCREW, PAN HEAD 488
$3.46
You save $0.38
-15%
$7.22
You save $1.27
-10%
13
Yamaha Motors
98580-06008-0092501-06008-00
Required: 1
SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
$1.04
You save $0.11
-10%
$6.74
You save $0.75
-20%
16
Yamaha Motors
Plate Washer90202-05187-00
Required: 2
WASHER, PLATE(3GM)
Supersedes: 90202-05193-00
In stock
Only 4 remaining
$1.36
You save $0.34
-15%
17
Yamaha Motors
Hose90445-092K1-00
Required: 1
462 HOSE 132243110000
Supersedes: 90445-09078-00
In stock
Only 2 remaining
$10.62
You save $1.87
-10%
18
Yamaha Motors
Hose90445-07176-00
Required: 1
HOSE 395243170000
$7.19
You save $0.80
-10%
19
Yamaha Motors
Scissor Clip90467-08003-00
Required: 2
P95 CLIP 101235600 PE91002
$10.34
You save $1.15
-10%
$2.34
You save $0.26
-10%
No longer availableSearch Nationwide Inventory
$39.59
You save $4.40
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
