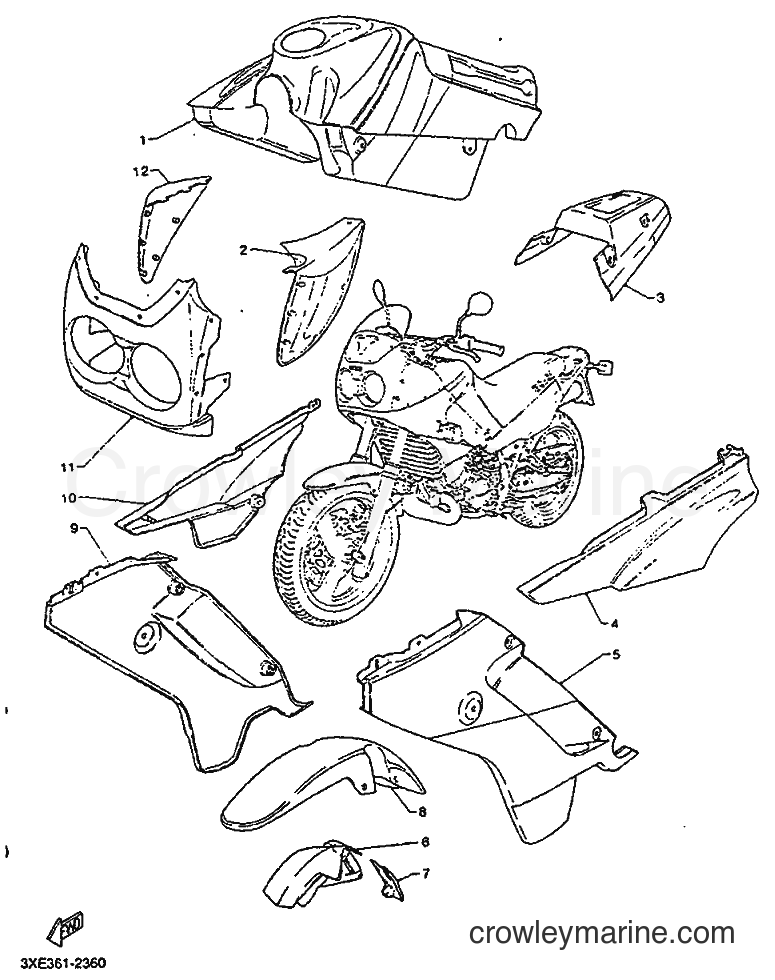

1992 Dirt Bike TDR125 - TDR125 (3XE2) [999] COLORED PARTS diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Yamaha Motors TDR125 (3XE2) [999] - COLORED PARTS

Change View:

Yamaha Motors

FUEL TANK COMP.3XE-F4110-00-KH

Required: 1

FUEL TANK COMP.

Price unavailable

Yamaha Motors

GUARD, BRUSH 13SH-F6141-10-KH

Required: 1

GUARD, BRUSH 1

Price unavailable

Yamaha Motors

FENDER, REAR3SH-F1611-10-KH

Required: 1

FENDER, REAR

Price unavailable

Yamaha Motors

COVER, SIDE 13SH-F1711-00-KH

Required: 1

COVER, SIDE 1

Price unavailable

Yamaha Motors

SCOOP, AIR 13SH-F137W-00-KH

Required: 1

SCOOP, AIR 1

Price unavailable

Yamaha Motors

COVER 13SH-F5715-00-GH

Required: 1

COVER 1

Price unavailable

Yamaha Motors

COVER, 23SH-F571A-00-GH

Required: 1

COVER, 2

Price unavailable

Yamaha Motors

FENDER, FRONT3SH-F1511-10-KH

Required: 1

FENDER, FRONT

Price unavailable

Yamaha Motors

SCOOP, AIR 23SH-F137X-00-KH

Required: 1

SCOOP, AIR 2

Price unavailable

Yamaha Motors

COVER, SIDE 23SH-F1721-00-KH

Required: 1

COVER, SIDE 2

Price unavailable

Yamaha Motors

BODY, COWLING3SH-F8351-A0-KH

Required: 1

BODY, COWLING

Price unavailable

Yamaha Motors

PROTECTOR 23SH-F834W-10-KH

Required: 1

PROTECTOR 2

Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
