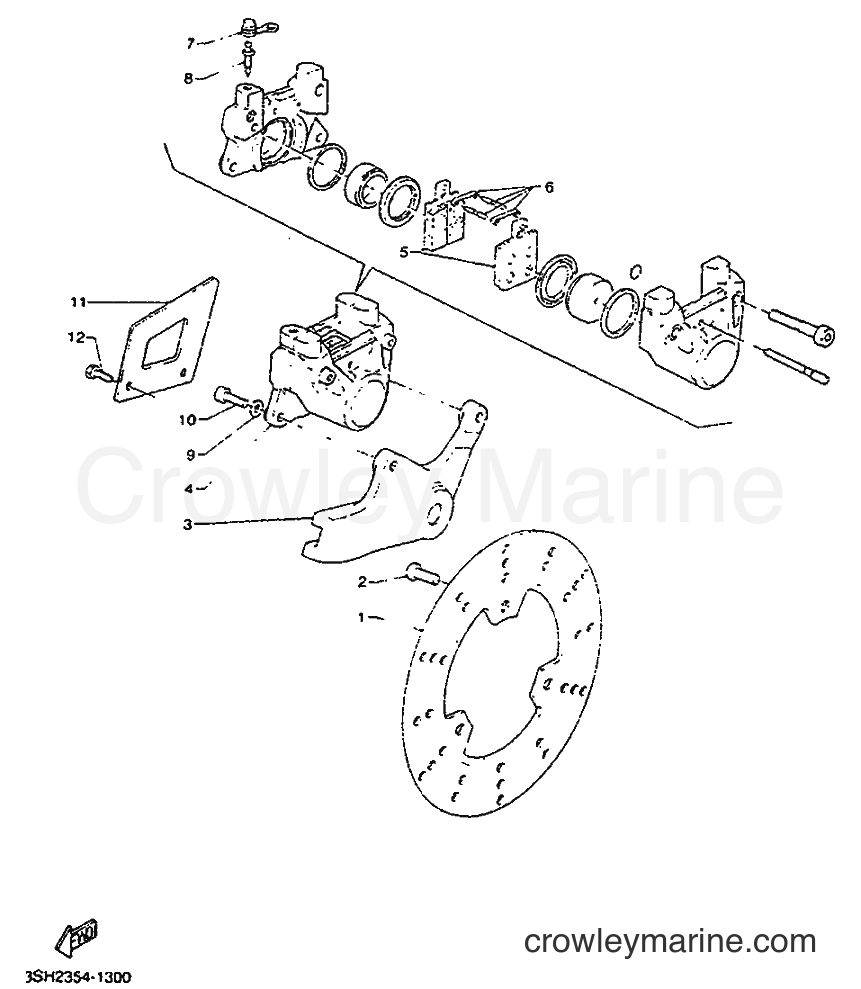

1992 Dirt Bike TDR125 - TDR125 (3XE2) [999] REAR BRAKE CALIPER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TDR125 (3XE2) [999] - REAR BRAKE CALIPER
Change View:
-10%
BOLT,HEX. SOCKET BUT
2
Yamaha Motors
BOLT,HEX. SOCKET BUT90111-08084-00
Required: 3
BOLT
Supersedes: 90109-08718-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
BRACKET, CALIPER
3
Yamaha Motors
BRACKET, CALIPER3SH-F5819-10
Required: 1
BRACKET, CALIPER
Price unavailable
CALIPER ASSY, REAR 2
4
Yamaha Motors
CALIPER ASSY, REAR 23SH-F580W-10
Required: 1
CALIPER ASSY, REAR 2
Price unavailable
. PAD, CALIPER 2
5
Yamaha Motors
. PAD, CALIPER 23SH-F5811-20
Required: 1
. PAD, CALIPER 2
Price unavailable
. SUPPORT, PAD
6
Yamaha Motors
. SUPPORT, PAD3SH-F5919-00
Required: 1
. SUPPORT, PAD
Price unavailable
. CAP
7
Yamaha Motors
. CAP3SH-F5825-00
Required: 1
. CAP
Price unavailable
. SCREW, BLEED
8
Yamaha Motors
. SCREW, BLEED3SH-F5824-00
Required: 1
. SCREW, BLEED
Price unavailable
WASHER
9
Yamaha Motors
WASHER92900-M8SIC
Required: 2
WASHER
Price unavailable
-10%
Socket head bolt
10
Yamaha Motors
Socket head bolt91314-08020-00
Required: 2
BOLT
Supersedes: 91311-08020-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
PROTECTOR
11
Yamaha Motors
PROTECTOR3SH-F7491-00
Required: 1
PROTECTOR
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
