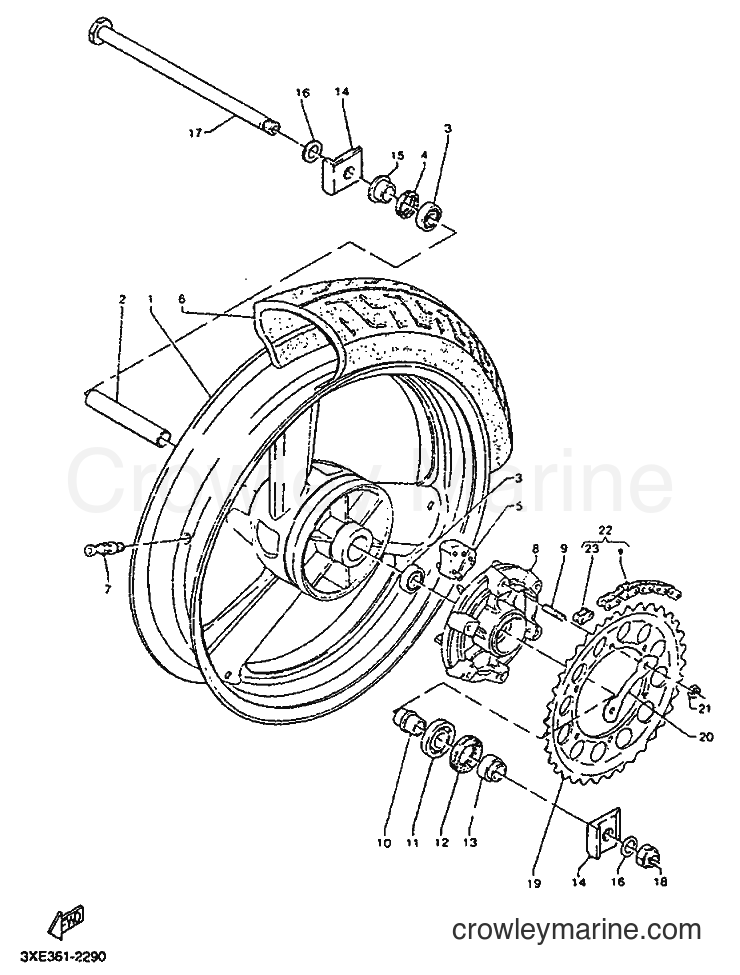

1992 Dirt Bike TDR125 - TDR125 (3XE2) [999] REAR WHEEL diagram
![Yamaha Motors TDR125 (3XE2) [999] - REAR WHEEL](https://cdn.crowleymarine.com/yamaha/OgbzgH53.png)
1
Yamaha Motors
CAST WHEEL, REAR3SH-F5338-00-UJ
Required: 1
CAST WHEEL, REAR
Price unavailable
1
Yamaha Motors
CAST WHEEL, REAR3SH-F5338-00-FH
Required: 1
CAST WHEEL, REAR
Price unavailable
2
Yamaha Motors
SPACER90560-15277
Required: 1
SPACER
Price unavailable
3
Yamaha Motors
BEARING93306-20222
Required: 2
BEARING
Price unavailable
-10%
$11.24
You save $1.25
-10%
$9.44
You save $1.05
6
Yamaha Motors
TIRE94113-177M0
Required: 1
TIRE
Price unavailable
6
Yamaha Motors
TIRE94113-177M1
Required: 1
TIRE
Price unavailable
-10%
7
Yamaha Motors
Rim Valve93900-00031-00
Required: 1
VALVE, RIM
Supersedes: 93900-00001-00
$16.64
You save $1.85
8
Yamaha Motors
CLUTCH, HUB4DL-F5366-00
Required: 1
CLUTCH, HUB
Price unavailable
9
Yamaha Motors
BOLT, STUD90116-+0822
Required: 6
BOLT, STUD
Price unavailable
10
Yamaha Motors
COLLAR90387-153N3
Required: 1
COLLAR
Price unavailable
-10%
$41.39
You save $4.60
-10%
$14.84
You save $1.65
-10%
$13.94
You save $1.55
14
Yamaha Motors
PULLER, CHAIN 13SH-F5388-10
Required: 2
PULLER, CHAIN 1
Price unavailable
15
Yamaha Motors
COLLAR90387-15001
Required: 1
COLLAR
Price unavailable
16
Yamaha Motors
WASHER, PLATE90201-15001
Required: 2
WASHER, PLATE
Price unavailable
17
Yamaha Motors
AXLE, WHEEL3SH-F5381-00
Required: 1
AXLE, WHEEL
Price unavailable
18
Yamaha Motors
NUT, U95611-14100
Required: 1
NUT, U
Price unavailable
19
Yamaha Motors
SPROCKET, DRIVEN3XE-F5456-10-98
Required: 1
SPROCKET, DRIVEN
Price unavailable
20
Yamaha Motors
WASHER1KT-25412-00
Required: 3
WASHER
Price unavailable
-10%
$4.19
You save $0.46
22
Yamaha Motors
CHAIN94511-01130
Required: 1
CHAIN
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$8.54
You save $0.95
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
