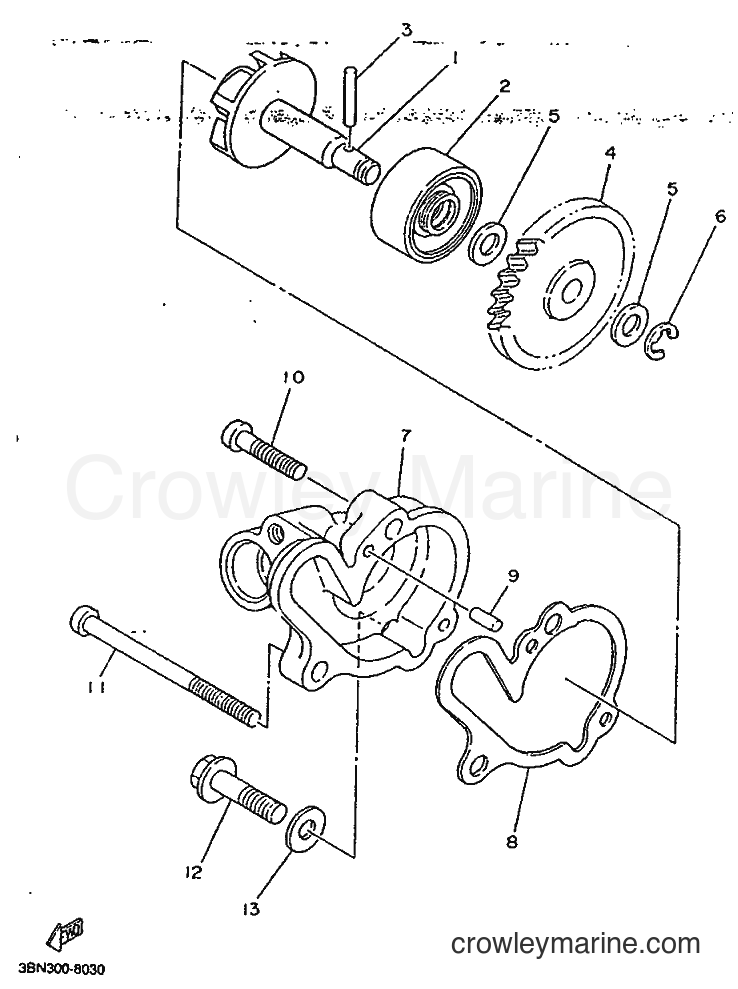

1992 Dirt Bike TDR125 - TDR125 (3XE2) [999] WATER PUMP diagram
![Yamaha Motors TDR125 (3XE2) [999] - WATER PUMP](https://cdn.crowleymarine.com/yamaha/Fw5Le7Su.png)
1
Yamaha Motors
IMPELLER SHAFT ASSY2VR-E2450-00
Required: 1
IMPELLER SHAFT ASSY
Price unavailable
-10%
2
Yamaha Motors
SW-TYPE OIL SEAL93103-10168-00
Required: 1
OIL SEAL
Supersedes: 93103-10147-00
No longer availableSearch Nationwide Inventory
$26.09
You save $2.90
-10%
$3.65
You save $0.40
4
Yamaha Motors
GEAR, IMPELLER SHAFT3NC-E2459-00
Required: 1
GEAR, IMPELLER SHAFT
Price unavailable
-50%
5
Yamaha Motors
Plate Washer90201-08512-00
Required: 2
WASHER, PLATE
In stock
Only 1 remaining
$4.75
You save $4.75
-20%
6
Yamaha Motors
Clip99080-07600-00
Required: 1
CIRCLIP
Supersedes: 99001-07600-00
In stock
Only 3 remaining
$2.92
You save $0.73
7
Yamaha Motors
COVER, HOUSING3NC-E2422-00
Required: 1
COVER, HOUSING
Price unavailable
8
Yamaha Motors
GASKET, HOUSING COVER 23NC-E2428-00
Required: 1
GASKET, HOUSING COVER 2
Price unavailable
-10%
$7.64
You save $0.85
-10%
10
Yamaha Motors
Pan Head Screw98517-06025-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98506-06025-00
$3.65
You save $0.40
-10%
11
Yamaha Motors
Pan Head Screw98507-06065-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98506-06065-00
$7.64
You save $0.85
-10%
12
Yamaha Motors
Flange Bolt95811-06025-00
Required: 1
BOLT, FLANGE
Supersedes: 95826-06025-00
No longer availableSearch Nationwide Inventory
$1.53
You save $0.17
-50%
In stock
Only 1 remaining
$2.02
You save $2.02
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
