1992 Dirt Bike WR500Z - WR500Z (4AA1) [999] EXHAUST diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

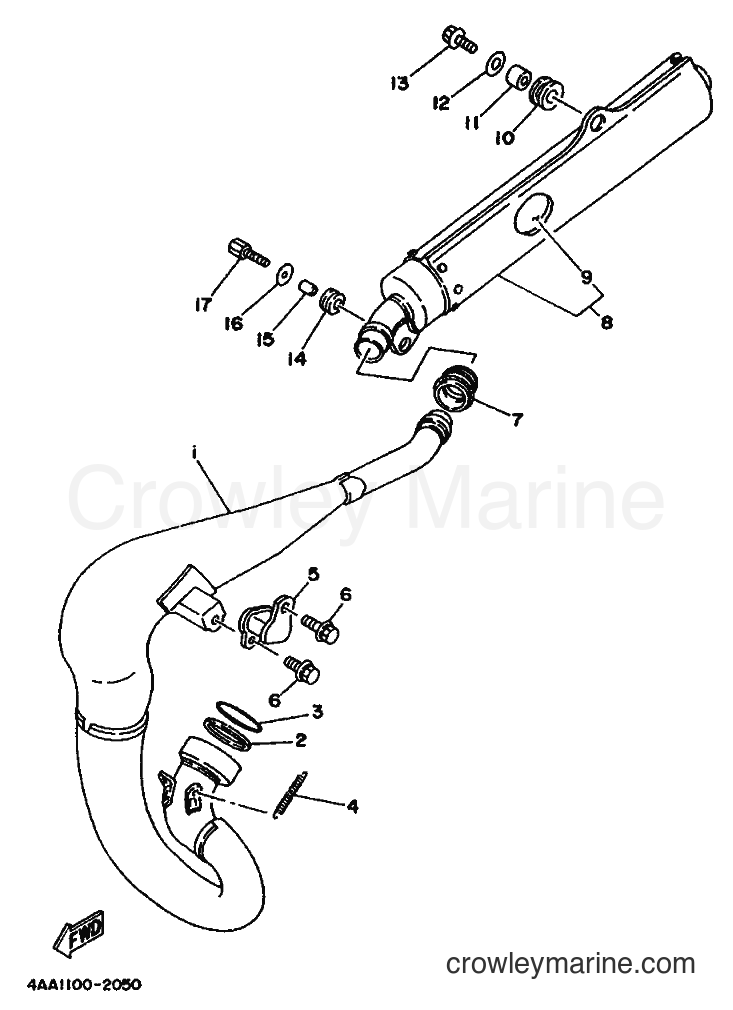

Yamaha Motors WR500Z (4AA1) [999] - EXHAUST
Change View:
-10%
TENSION SPRING
4
Yamaha Motors
TENSION SPRING90507-20030-00
Required: 3
SPRING, TENSION
Cross Ship
Leaves in 2-5 days
$16.49
$14.84
You save $1.65
More details
-10%
Bolt w/Washer (J38)
6
Yamaha Motors
Bolt w/Washer (J38)90119-08119-00
Required: 2
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
Plate Washer
12
Yamaha Motors
Plate Washer90201-08612-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
GROMMET, WATER TUBE (UPPER)
14
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-16233-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Plate Washer
16
Yamaha Motors
Plate Washer90201-06747-00
Required: 1
WASHER, PLATE
Supersedes: 90201-06407-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
