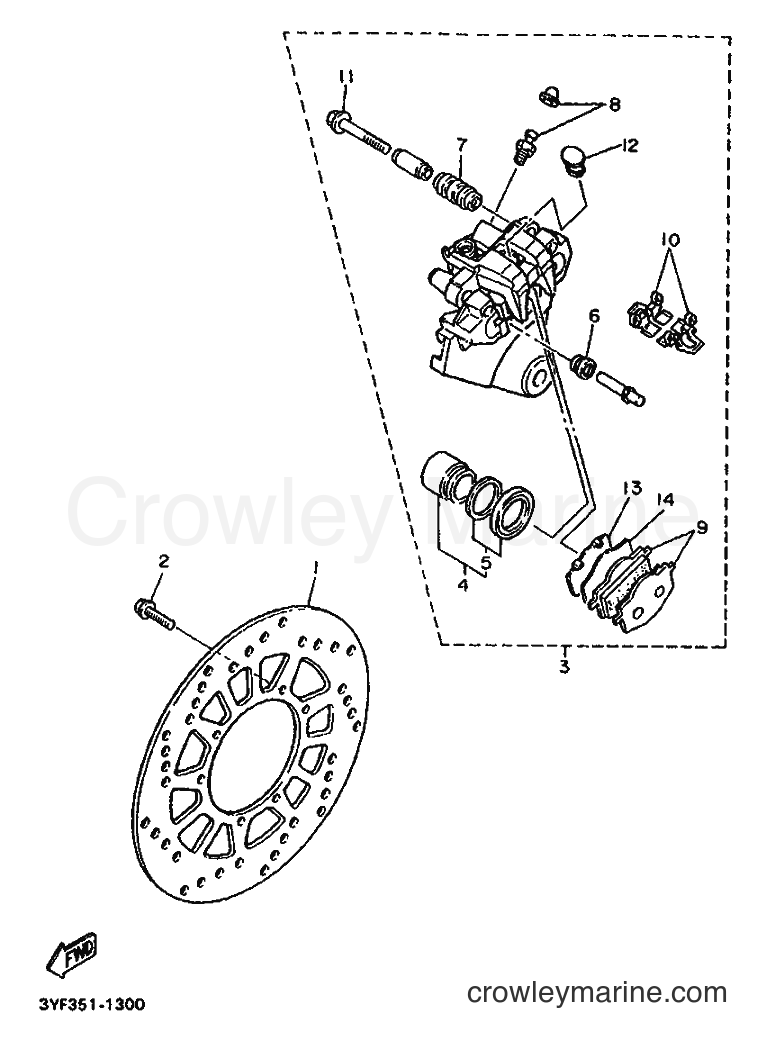

1992 Dirt Bike XTZ660 - XTZ660 (3YF4) [999] REAR BRAKE CALIPER diagram
![Yamaha Motors XTZ660 (3YF4) [999] - REAR BRAKE CALIPER](https://cdn.crowleymarine.com/yamaha/ldhSy1W0.png)
-10%
$176.39
You save $19.60
-10%
No longer availableSearch Nationwide Inventory
$1.26
You save $0.14
3
Yamaha Motors
CALIPER ASSY, REAR 23YF-2580W-00
Required: 1
CALIPER ASSY, REAR 2
Price unavailable
-10%
4
Yamaha Motors
PISTON RING CALIPER2KF-W0057-00-00
Required: 1
. PISTON ASSY, CALIPER
No longer availableSearch Nationwide Inventory
$37.79
You save $4.20
-10%
5
Yamaha Motors
Caliper Seal Kit34X-W0047-00-00
Required: 1
. . CALIPER SEAL KIT
$44.99
You save $5.00
-10%
$37.79
You save $4.20
-10%
$31.49
You save $3.50
-10%
8
Yamaha Motors
Bleed Screw Kit15B-W0048-00-00
Required: 1
. BLEED SCREW KIT
Supersedes: 51L-W0048-00-00
$19.79
You save $2.20
-10%
9
Yamaha Motors
Brake Pad Kit34X-W0046-02-00
Required: 1
. BRAKE PAD KIT 2
Supersedes: 34X-W0046-01-00
$45.89
You save $5.10
-10%
10
Yamaha Motors
Pad Support4MA-25919-00-00
Required: 2
. SUPPORT, PAD
Supersedes: 2KF-25919-10-00
$35.09
You save $3.90
-10%
11
Yamaha Motors
BOLT5KN-25926-01-00
Required: 1
. BOLT
Supersedes: 2GV-25926-00-00
$8.54
You save $0.95
-10%
12
Yamaha Motors
Indicator Cap34X-25845-00-00
Required: 1
. CAP, INDICATOR
$16.19
You save $1.80
-10%
13
Yamaha Motors
CALIPER SHIM2KF-25827-00-00
Required: 1
. SHIM, CALIPER
No longer availableSearch Nationwide Inventory
$28.79
You save $3.20
14
Yamaha Motors
. SHIM, CALIPER3YF-25828-00
Required: 1
. SHIM, CALIPER
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
