1992 Dirt Bike XTZ660 - XTZ660 (4BW2) [999] COWLING 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

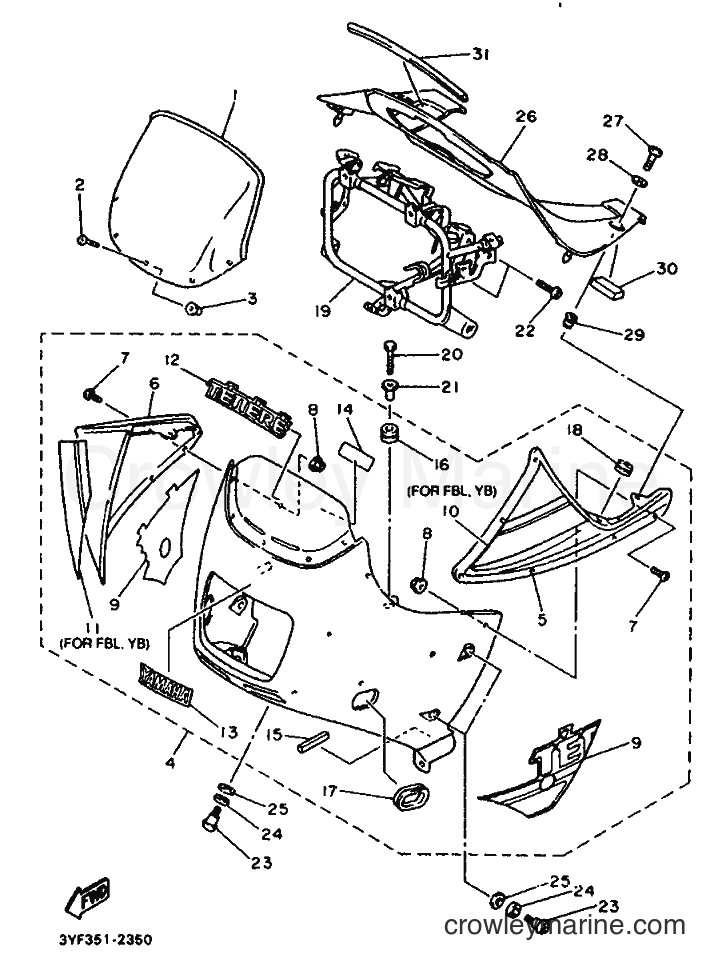

Yamaha Motors XTZ660 (4BW2) [999] - COWLING 1
Change View:
WINDSHIELD
1
Yamaha Motors
WINDSHIELD3YF-28381-00
Required: 1
WINDSHIELD
Price unavailable
-10%
ROUND HEAD SCREW
2
Yamaha Motors
ROUND HEAD SCREW90150-05023-00
Required: 5
SCREW, ROUND HEAD
Cross Ship
Leaves in 2-5 days
$3.30
$2.97
You save $0.33
More details
-10%
Nut
3
Yamaha Motors
Nut90179-05633-00
Required: 5
NUT
Cross Ship
Leaves in 2-5 days
$3.95
$3.56
You save $0.40
More details
. COWLING ASS'Y
4
Yamaha Motors
. COWLING ASS'Y3YF-Y2835-C0
Required: 1
. COWLING ASS'Y
Price unavailable
. COWLING ASS'Y
4
Yamaha Motors
. COWLING ASS'Y3YF-Y2835-B0
Required: 1
. COWLING ASS'Y
Price unavailable
COWLING ASS'Y
4
Yamaha Motors
COWLING ASS'Y3YF-Y2835-A0
Required: 1
COWLING ASS'Y
Price unavailable
. PROTECTOR 1
5
Yamaha Motors
. PROTECTOR 13YF-2834V-10
Required: 1
. PROTECTOR 1
Price unavailable
. PROTECTOR 1
5
Yamaha Motors
. PROTECTOR 13YF-2834V-40
Required: 1
. PROTECTOR 1
Price unavailable
. PROTECTOR 1
5
Yamaha Motors
. PROTECTOR 13YF-2834V-30
Required: 1
. PROTECTOR 1
Price unavailable
. PROTECTOR 2
6
Yamaha Motors
. PROTECTOR 23YF-2834W-40
Required: 1
. PROTECTOR 2
Price unavailable
. PROTECTOR 2
6
Yamaha Motors
. PROTECTOR 23YF-2834W-30
Required: 1
. PROTECTOR 2
Price unavailable
. PROTECTOR 2
6
Yamaha Motors
. PROTECTOR 23YF-2834W-10
Required: 1
. PROTECTOR 2
Price unavailable
-10%
ROUND HEAD SCREW
7
Yamaha Motors
ROUND HEAD SCREW90150-05020-00
Required: 12
. SCREW, ROUND HEAD
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
Flange Nut
8
Yamaha Motors
Flange Nut95707-05500-00
Required: 12
. NUT, FLANGE
Supersedes: 95706-05500-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
. GRAPHIC SET, COWLING
9
Yamaha Motors
. GRAPHIC SET, COWLING3YF-28390-31
Required: 1
. GRAPHIC SET, COWLING
Price unavailable
. GRAPHIC SET, COWLING
9
Yamaha Motors
. GRAPHIC SET, COWLING3YF-28390-51
Required: 1
. GRAPHIC SET, COWLING
Price unavailable
. GRAPHIC SET, COWLING
9
Yamaha Motors
. GRAPHIC SET, COWLING3YF-28390-41
Required: 1
. GRAPHIC SET, COWLING
Price unavailable
. GRAPHIC 1
10
Yamaha Motors
. GRAPHIC 13YF-28391-40
Required: 1
. GRAPHIC 1
Price unavailable
. GRAPHIC 1
10
Yamaha Motors
. GRAPHIC 13YF-28391-50
Required: 1
. GRAPHIC 1
Price unavailable
. GRAPHIC 2
11
Yamaha Motors
. GRAPHIC 23YF-28392-40
Required: 1
. GRAPHIC 2
Price unavailable
. GRAPHIC 2
11
Yamaha Motors
. GRAPHIC 23YF-28392-50
Required: 1
. GRAPHIC 2
Price unavailable
. EMBLEM
12
Yamaha Motors
. EMBLEM3YF-28315-30
Required: 1
. EMBLEM
Price unavailable
. EMBLEM
12
Yamaha Motors
. EMBLEM3YF-28315-50
Required: 1
. EMBLEM
Price unavailable
. EMBLEM
12
Yamaha Motors
. EMBLEM3YF-28315-40
Required: 1
. EMBLEM
Price unavailable
-10%
YAMAHA EMBLEM
13
Yamaha Motors
YAMAHA EMBLEM99241-00100-00
Required: 1
. EMBLEM, YAMAHA
Supersedes: 99231-00025-00
Cross Ship
Leaves in 2-5 days
$4.50
$4.05
You save $0.45
More details
-10%
YAMAHA EMBLEM
13
Yamaha Motors
YAMAHA EMBLEM99244-00100-00
Required: 1
. EMBLEM, YAMAHA
Supersedes: 99234-00025-00
Cross Ship
Leaves in 2-5 days
$22.99
$20.69
You save $2.30
More details
. DAMPER
15
Yamaha Motors
. DAMPER3LD-24854-00
Required: 2
. DAMPER
Price unavailable
-10%
GROMMET, WATER TUBE (UPPER)
16
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-14023-00
Required: 2
. GROMMET
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
. GROMMET
17
Yamaha Motors
. GROMMET90480-01545
Required: 2
. GROMMET
Price unavailable
-10%
Grommet
18
Yamaha Motors
Grommet90480-13567-00
Required: 2
. GROMMET
Supersedes: 90480-13426-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.94
You save $0.55
More details
STAY 1
19
Yamaha Motors
STAY 13YF-28356-01
Required: 1
STAY 1
Price unavailable
-10%
Bolt
20
Yamaha Motors
Bolt97017-06025-00
Required: 2
BOLT
Supersedes: 97016-06025-00
Cross Ship
Leaves in 2-5 days
$4.55
$4.09
You save $0.46
More details
-10%
COLLAR
21
Yamaha Motors
COLLAR90387-06158-00
Required: 2
COLLAR
Supersedes: 90387-06388-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
BOLT, BUTTON HEAD
22
Yamaha Motors
BOLT, BUTTON HEAD92016-08040
Required: 2
BOLT, BUTTON HEAD
Price unavailable
BOLT, LEG SHIELD
23
Yamaha Motors
BOLT, LEG SHIELD3LD-28331-01
Required: 5
BOLT, LEG SHIELD
Price unavailable
WASHER
24
Yamaha Motors
WASHER3LD-28319-00
Required: 5
WASHER
Price unavailable
PANEL, CONSOLE 2
26
Yamaha Motors
PANEL, CONSOLE 23YF-2837M-00
Required: 1
PANEL, CONSOLE 2
Price unavailable
-10%
Plate Washer
28
Yamaha Motors
Plate Washer90202-05180-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$11.49
$10.34
You save $1.15
More details
-10%
Nut
29
Yamaha Motors
Nut90179-05633-00
Required: 2
NUT
Cross Ship
Leaves in 2-5 days
$3.95
$3.56
You save $0.40
More details
TRIM
31
Yamaha Motors
TRIM3YF-28376-00
Required: 1
TRIM
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
