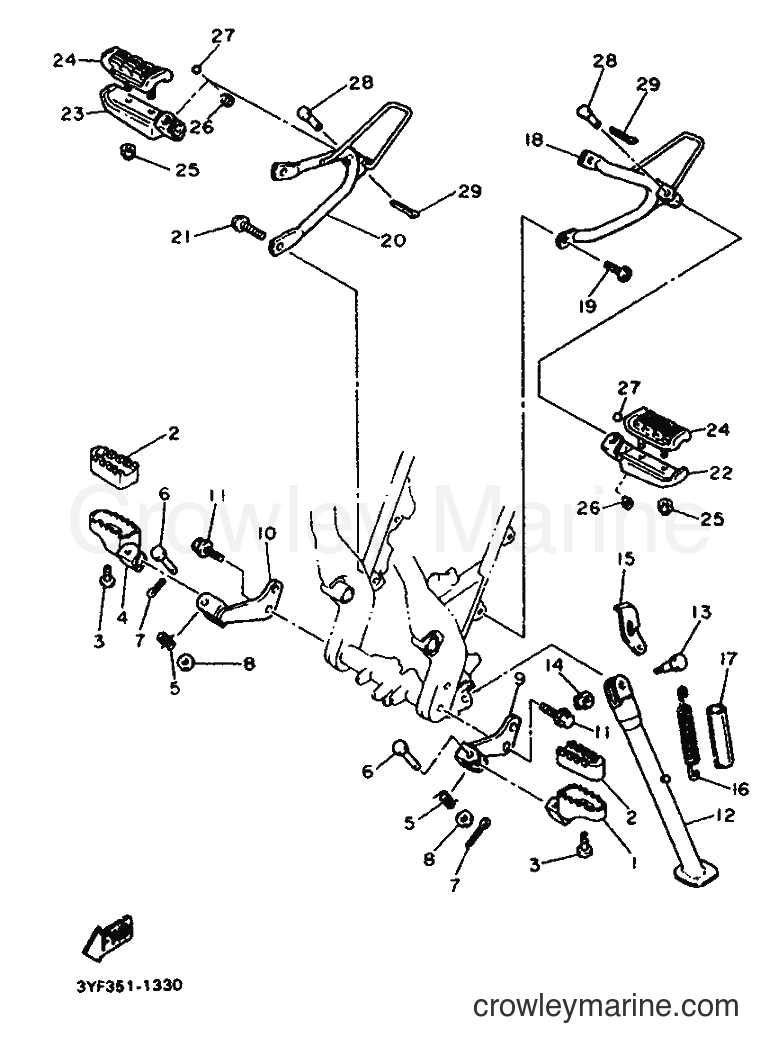

1992 Dirt Bike XTZ660 - XTZ660 (4BW2) [999] STAND & FOOTREST diagram
![Yamaha Motors XTZ660 (4BW2) [999] - STAND & FOOTREST](https://cdn.crowleymarine.com/yamaha/HHNijHTj.png)
-10%
1
Yamaha Motors
Footrest3LD-27411-10-00
Required: 1
FOOTREST 1
Supersedes: 3LD-27411-00-00
$48.59
You save $5.40
2
Yamaha Motors
COVER, FOOTREST3LD-27413-00
Required: 2
COVER, FOOTREST
Price unavailable
-10%
3
Yamaha Motors
Bolt (4MY)91317-06010-00
Required: 2
BOLT
Supersedes: 91316-06010-00
$9.44
You save $1.05
-10%
4
Yamaha Motors
Footrest3LD-27421-10-00
Required: 1
FOOTREST 2
Supersedes: 3LD-27421-00-00
$47.69
You save $5.30
-10%
5
Yamaha Motors
Torsion Spring90508-20583-00
Required: 2
SPRING, TORSION
$8.54
You save $0.95
-10%
$14.84
You save $1.65
-50%
7
Yamaha Motors
Cotter Pin91490-25020-00
Required: 2
PIN, COTTER
Supersedes: 91401-25020-00
In stock
Only 4 remaining
$1.73
You save $1.73
-50%
8
Yamaha Motors
Plate Washer90201-10119-00
Required: 2
WASHER, PLATE
In stock
Only 2 remaining
$0.50
You save $0.50
9
Yamaha Motors
BRACKET, FOOTREST 13YF-27412-00
Required: 1
BRACKET, FOOTREST 1
Price unavailable
10
Yamaha Motors
BRACKET, FOOTREST 23YF-27422-00
Required: 1
BRACKET, FOOTREST 2
Price unavailable
-50%
11
Yamaha Motors
FLANGE BOLT95817-10025-00
Required: 4
BOLT, FLANGE
Supersedes: 95826-10025-00
In stock
Only 1 remaining
$4.75
You save $4.75
12
Yamaha Motors
STAND, SIDE3YF-27311-00-R4
Required: 1
STAND, SIDE
Price unavailable
-10%
13
Yamaha Motors
Washer Based Bolt90105-12616-00
Required: 1
BOLT, WASHER BASED
No longer availableSearch Nationwide Inventory
$8.99
You save $1.00
-10%
14
Yamaha Motors
Self-Locking Nut90185-12119-00
Required: 1
NUT, SELF-LOCKING
$11.24
You save $1.25
15
Yamaha Motors
LINK, SIDE STAND3GJ-27315-00
Required: 1
LINK, SIDE STAND
Price unavailable
-10%
16
Yamaha Motors
TENSION SPRING90507-32020-00
Required: 1
SPRING, TENSION
No longer availableSearch Nationwide Inventory
$14.39
You save $1.60
-10%
$4.94
You save $0.55
18
Yamaha Motors
BRACKET 13YF-27432-00-P0
Required: 1
BRACKET 1
Price unavailable
-10%
$9.44
You save $1.05
20
Yamaha Motors
BRACKET 23YF-27442-00-P0
Required: 1
BRACKET 2
Price unavailable
-10%
$9.44
You save $1.05
22
Yamaha Motors
FOOTREST, REAR 13YF-27431-00
Required: 1
FOOTREST, REAR 1
Price unavailable
23
Yamaha Motors
FOOTREST, REAR 23YF-27441-00
Required: 1
FOOTREST, REAR 2
Price unavailable
24
Yamaha Motors
COVER, REAR FOOTREST3YF-27433-00
Required: 2
COVER, REAR FOOTREST
Price unavailable
-10%
25
Yamaha Motors
NUT95617-05100-00
Required: 4
NUT, U
Supersedes: 95601-05100-00
$9.44
You save $1.05
-10%
26
Yamaha Motors
Compression Spring90501-16761-00
Required: 2
SPRING, COMPRESSION
No longer availableSearch Nationwide Inventory
$1.57
You save $0.18
-20%
In stock
Only 5 remaining
$7.59
You save $1.90
-10%
$7.64
You save $0.85
-10%
No longer availableSearch Nationwide Inventory
$1.79
You save $0.20
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
