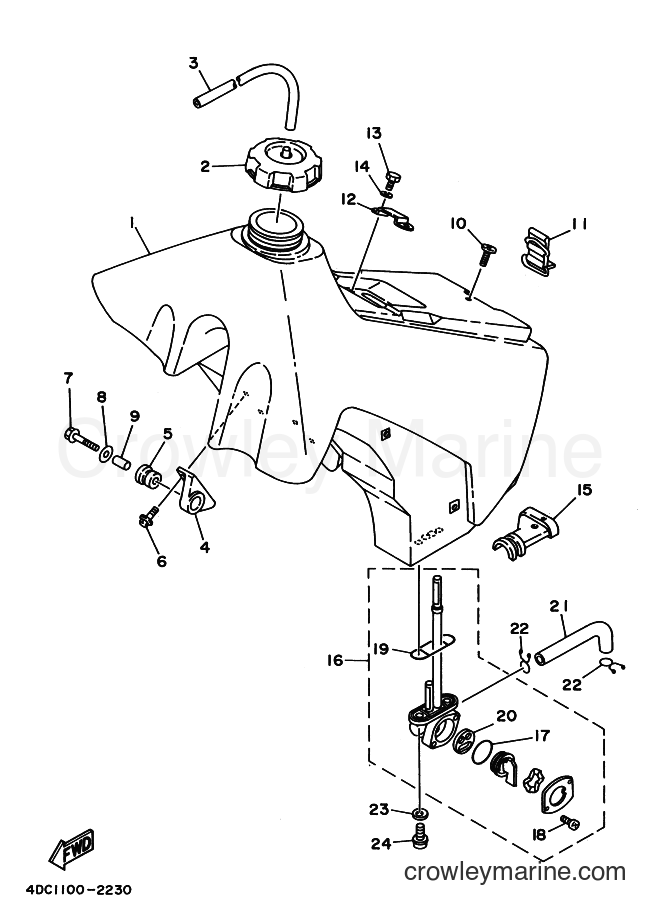

1993 Dirt Bike WR250Z - WR250Z (4DC3) [999] FUEL TANK diagram
![Yamaha Motors WR250Z (4DC3) [999] - FUEL TANK](https://cdn.crowleymarine.com/yamaha/cqAU6uXe.png)
-10%
1
Yamaha Motors
Fuel Tank4DC-24110-01-00
Required: 1
FUEL TANK COMP.
No longer availableSearch Nationwide Inventory
$287.09
You save $31.90
-10%
2
Yamaha Motors
COMMUTATOR END CAP ASSEMBLY5MV-24610-00-00
Required: 1
CAP ASSY
Supersedes: 1UY-24610-00-00
$57.59
You save $6.40
-15%
3
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE
Supersedes: 90445-09252-00
In stock
Only 2 remaining
$10.62
You save $1.87
-10%
4
Yamaha Motors
Damper Holder5XE-24144-00-00
Required: 2
HOLDER, DAMPER
Supersedes: 24X-24144-00-00
$23.39
You save $2.60
-10%
$10.34
You save $1.15
-10%
No longer availableSearch Nationwide Inventory
$1.89
You save $0.21
-10%
7
Yamaha Motors
FLANGE BOLT 94BH)95024-06035-00
Required: 2
BOLT, FLANGE
Supersedes: 95023-06035-00
$9.44
You save $1.05
-10%
8
Yamaha Motors
Plate Washer90201-06697-00
Required: 2
WASHER, PLATE
$8.54
You save $0.95
-10%
$8.54
You save $0.95
10
Yamaha Motors
SCREW, BIND98990-06020
Required: 1
SCREW, BIND
Price unavailable
-10%
11
Yamaha Motors
TANK FITTING BAND3SP-24173-00-00
Required: 1
BAND, TANK FITTING 1
$22.49
You save $2.50
-10%
No longer availableSearch Nationwide Inventory
$11.69
You save $1.30
-50%
13
Yamaha Motors
Bolt97013-06012-00
Required: 2
BOLT
Supersedes: 97003-06012-00
In stock
Only 3 remaining
$3.25
You save $3.25
-15%
14
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-10%
15
Yamaha Motors
Locating Damper1LX-24181-00-00
Required: 1
DAMPER, LOCATING 1
No longer availableSearch Nationwide Inventory
$31.49
You save $3.50
-10%
16
Yamaha Motors
Fuel Cock Assembly4AA-24500-00-00
Required: 1
FUEL COCK ASSY 1
No longer availableSearch Nationwide Inventory
$53.99
You save $6.00
-50%
17
Yamaha Motors
Cock Seal3AJ-24534-01-00
Required: 1
. SEAL, COCK
Supersedes: 3AJ-24534-00-00
In stock
Only 1 remaining
$6.00
You save $6.00
-10%
18
Yamaha Motors
98501-03008-0098503-03008-00
Required: 2
. SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
$0.90
You save $0.10
-10%
$8.54
You save $0.95
-10%
20
Yamaha Motors
Valve Packing3AC-24523-00-00
Required: 1
. VALVE
Supersedes: 3AJ-24523-00-00
$13.04
You save $1.45
-10%
21
Yamaha Motors
Pipe25H-24313-00-00
Required: 1
PIPE, FUEL 1
Supersedes: 4AA-24311-00-00
No longer availableSearch Nationwide Inventory
$10.34
You save $1.15
-10%
22
Yamaha Motors
Clip90467-100A1-00
Required: 2
CLIP
Supersedes: 90467-10008-00
$7.64
You save $0.85
-20%
23
Yamaha Motors
Plate Washer90202-05187-00
Required: 2
WASHER, PLATE
Supersedes: 90202-05193-00
In stock
Only 4 remaining
$1.36
You save $0.34
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
