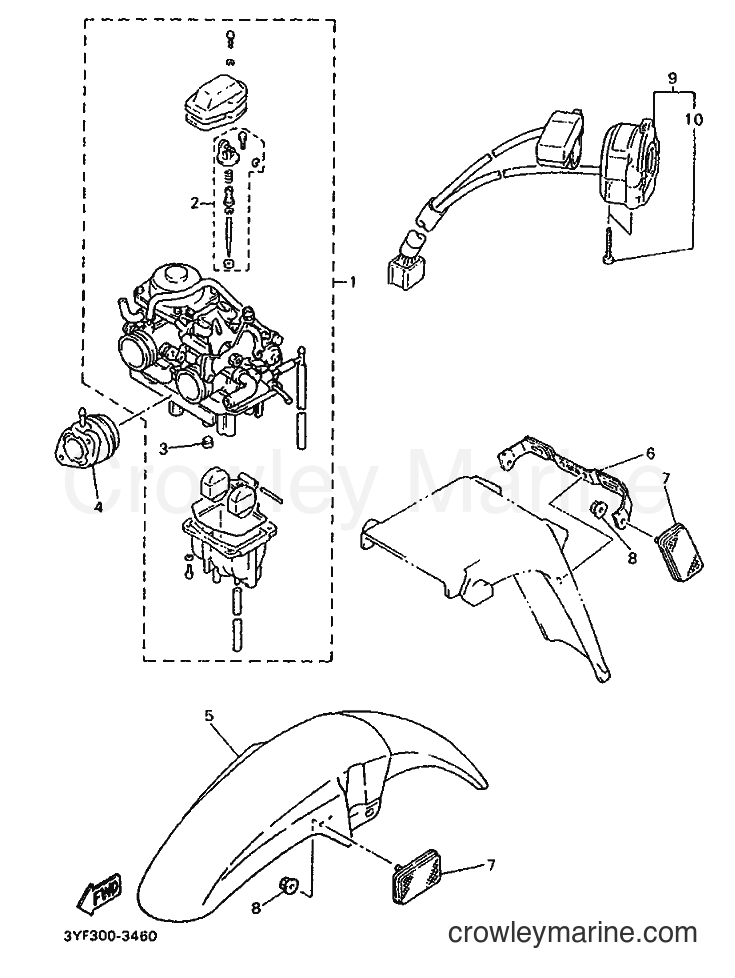

1993 Dirt Bike XTZ660 - XTZ660 (4BW3) [999] ALTERNATE FOR CHASSIS diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XTZ660 (4BW3) [999] - ALTERNATE FOR CHASSIS
Change View:
CARBURETOR ASSY 1
1
Yamaha Motors
CARBURETOR ASSY 14BW-14301-01
Required: 1
CARBURETOR ASSY 1
Price unavailable
. NEEDLE SET
2
Yamaha Motors
. NEEDLE SET4BW-1490J-10
Required: 1
. NEEDLE SET
Price unavailable
JOINT, CARBURETOR 1
4
Yamaha Motors
JOINT, CARBURETOR 14BW-13586-00
Required: 1
JOINT, CARBURETOR 1
Price unavailable
FENDER, FRONT
5
Yamaha Motors
FENDER, FRONT3WJ-21511-00-33
Required: 1
FENDER, FRONT
Price unavailable
FENDER, FRONT
5
Yamaha Motors
FENDER, FRONT3WJ-21511-00-P1
Required: 1
FENDER, FRONT
Price unavailable
FENDER, FRONT
5
Yamaha Motors
FENDER, FRONT3WJ-21511-00-P0
Required: 1
FENDER, FRONT
Price unavailable
BRACKET, LICENSE
6
Yamaha Motors
BRACKET, LICENSE4BW-84751-00
Required: 1
BRACKET, LICENSE
Price unavailable
-10%
Front Reflector Assembly
7
Yamaha Motors
Front Reflector Assembly23V-85110-00-00
Required: 4
REFLECTOR ASSY
Cross Ship
Leaves in 2-5 days
$30.99
$27.89
You save $3.10
More details
-10%
Flange Nut
8
Yamaha Motors
Flange Nut95702-05500-00
Required: 4
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.95
$0.85
You save $0.09
More details
SWITCH, HANDLE 5
9
Yamaha Motors
SWITCH, HANDLE 54BW-83969-00
Required: 1
SWITCH, HANDLE 5
Price unavailable
-10%
Pan Head Screw
10
Yamaha Motors
Pan Head Screw98517-05030-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98506-05030-00
Cross Ship
Leaves in 2-5 days
$11.49
$10.34
You save $1.15
More details
