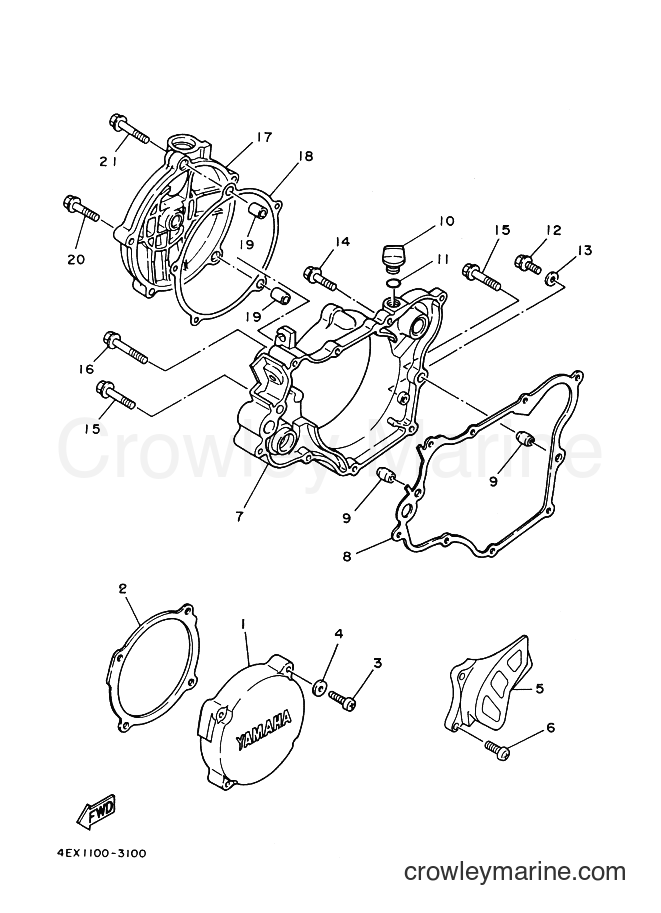

1993 Dirt Bike YZ125 - YZ125 (4EX1) [999] CRANKCASE COVER 1 diagram
![Yamaha Motors YZ125 (4EX1) [999] - CRANKCASE COVER 1](https://cdn.crowleymarine.com/yamaha/VcU6VbKN.png)
-10%
1
Yamaha Motors
Crankcase Cover4DB-15411-00-00
Required: 1
COVER, CRANKCASE 1
No longer availableSearch Nationwide Inventory
$56.69
You save $6.30
-10%
2
Yamaha Motors
CRANKCASE COVER GASKET4DB-15451-00-00
Required: 1
GASKET, CRANKCASE COVER 1
No longer availableSearch Nationwide Inventory
$11.24
You save $1.25
-15%
3
Yamaha Motors
Pan Head Screw97885-06030-00
Required: 4
SCREW, PAN HEAD
Supersedes: 98580-06030-00
In stock
5+ in stock
$4.67
You save $0.82
-15%
4
Yamaha Motors
Plate Washer92990-06600-00
Required: 4
WASHER, PLATE
Supersedes: 92901-06600-00
In stock
5+ in stock
$2.51
You save $0.44
-10%
5
Yamaha Motors
Crankcase Cover4EX-15421-00-00
Required: 1
COVER, CRANKCASE 2
No longer availableSearch Nationwide Inventory
$93.59
You save $10.40
-15%
6
Yamaha Motors
Pan Head Screw98580-06016-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98502-06016-00
In stock
5+ in stock
$2.93
You save $0.52
-10%
7
Yamaha Motors
Crankcase Cover3JD-15431-00-00
Required: 1
COVER, CRANKCASE 3
No longer availableSearch Nationwide Inventory
$199.79
You save $22.20
-10%
8
Yamaha Motors
CRANKCASE COVER GASKET 31LX-15462-10-00
Required: 1
GASKET, CRANKCASE COVER 3
$26.09
You save $2.90
-15%
9
Yamaha Motors
Dowel Pin99530-10114-00
Required: 2
PIN, DOWEL
Supersedes: 99530-10014-00
In stock
Only 1 remaining
$2.25
You save $0.40
-10%
10
Yamaha Motors
Oil Level Plug1G8-15362-00-00
Required: 1
PLUG, OIL LEVEL
No longer availableSearch Nationwide Inventory
$15.74
You save $1.75
-50%
11
Yamaha Motors
O-Ring93210-14579-00
Required: 1
O-RING
Supersedes: 93210-14104-00
In stock
Only 5 remaining
$4.00
You save $4.00
-10%
12
Yamaha Motors
Flange Bolt95024-06008-00
Required: 1
BOLT, FLANGE
Supersedes: 95023-06008-00
$9.44
You save $1.05
-10%
$8.09
You save $0.90
-50%
14
Yamaha Motors
Flange Small Head Bolt95024-06025-00
Required: 6
BOLT, FLANGE
Supersedes: 95023-06025-00
In stock
Only 3 remaining
$1.23
You save $1.23
-10%
15
Yamaha Motors
FLANGE BOLT 94BH)95024-06035-00
Required: 2
BOLT, FLANGE
Supersedes: 95023-06035-00
$9.44
You save $1.05
-10%
16
Yamaha Motors
Flange Bolt95024-06040-00
Required: 1
BOLT, FLANGE
Supersedes: 95023-06040-00
$9.44
You save $1.05
-10%
17
Yamaha Motors
Generator Cover4EX-15415-00-00
Required: 1
COVER, GENERATOR
No longer availableSearch Nationwide Inventory
$154.79
You save $17.20
-10%
18
Yamaha Motors
CARBURETOR GASKET COVER 23JD-15463-10-00
Required: 1
GASKET, CARBURETOR COVER 2
$13.94
You save $1.55
-15%
19
Yamaha Motors
Dowel Pin99530-10114-00
Required: 2
PIN, DOWEL
Supersedes: 99530-10014-00
In stock
Only 1 remaining
$2.25
You save $0.40
-10%
20
Yamaha Motors
Flange Bolt95024-06030-00
Required: 3
BOLT, FLANGE
Supersedes: 95023-06030-00
$8.54
You save $0.95
-10%
21
Yamaha Motors
Flange Bolt95024-06040-00
Required: 2
BOLT, FLANGE
Supersedes: 95023-06040-00
$9.44
You save $1.05
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
