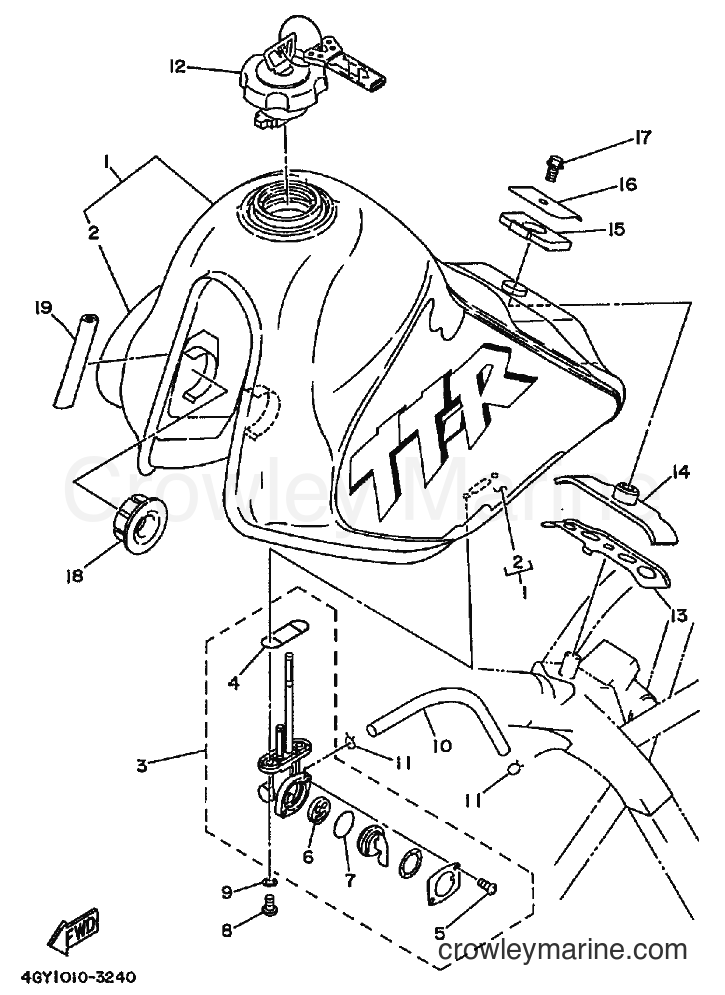

1994 Dirt Bike TT250R - TT250R (4MR1) [010] FUEL TANK diagram
![Yamaha Motors TT250R (4MR1) [010] - FUEL TANK](https://cdn.crowleymarine.com/yamaha/WmP99RZY.png)
1
Yamaha Motors
FUEL TANK COMPTT250RGRH4GY-24110-00-01
Required: 1
FUEL TANK COMPTT250RGRH
Price unavailable
2
Yamaha Motors
GRAPHIC SET4GY-24240-00
Required: 1
GRAPHIC SET
Price unavailable
-10%
3
Yamaha Motors
Fuel Cock Assembly23F-24500-20-00
Required: 1
FUEL COCK
Supersedes: 23F-24500-01-00
$41.39
You save $4.60
-10%
$8.54
You save $0.95
-10%
5
Yamaha Motors
98501-03008-0098503-03008-00
Required: 2
SCREW, PAN HEAD 1013
No longer availableSearch Nationwide Inventory
$0.90
You save $0.10
-10%
6
Yamaha Motors
Valve Packing3AC-24523-00-00
Required: 1
VALVE
Supersedes: 3AJ-24523-00-00
$13.04
You save $1.45
-50%
7
Yamaha Motors
Cock Seal3AJ-24534-01-00
Required: 1
SEAL, COCK
Supersedes: 3AJ-24534-00-00
In stock
Only 1 remaining
$6.00
You save $6.00
-20%
9
Yamaha Motors
Plate Washer90202-05187-00
Required: 2
WASHER, PLATE(3MB) J
In stock
Only 4 remaining
$1.36
You save $0.34
-15%
10
Yamaha Motors
Hose90445-10752-00
Required: 1
HOSE(55X)
Supersedes: 90445-100E9-00
$4.67
You save $0.82
-10%
11
Yamaha Motors
Clip90467-090A2-00
Required: 2
CLIP (806-24356-00)
Supersedes: 90467-09006-00
$4.28
You save $0.47
-10%
12
Yamaha Motors
COMMUTATOR END CAP ASSEMBLY11H-24602-10-00
Required: 1
CAP ASSY
Supersedes: 11H-24602-03-00
$99.89
You save $11.10
13
Yamaha Motors
WASHER, SPECIAL4GY-24187-00
Required: 1
WASHER, SPECIAL
Price unavailable
-10%
14
Yamaha Motors
LOCATING DAMPER1KH-24182-00-00
Required: 1
DAMPER, LOCATING 2
No longer availableSearch Nationwide Inventory
$19.79
You save $2.20
-10%
15
Yamaha Motors
LOCATING DAMPER 330X-24183-01-00
Required: 1
300 DAMPER, LOCATING 3
$7.64
You save $0.85
-10%
16
Yamaha Motors
Special Washer30X-24186-01-00
Required: 1
300 WASHER, SPECIAL
$7.64
You save $0.85
-15%
17
Yamaha Motors
Flange Bolt95817-06012-00
Required: 1
P66 BOLT, FLANGE (4H7)
Supersedes: 95811-06012-00
In stock
Only 2 remaining
$1.66
You save $0.29
-10%
18
Yamaha Motors
Locating Damper4H7-24181-00-00
Required: 2
DAMPER, LOCATING 1
$6.74
You save $0.75
-10%
19
Yamaha Motors
Fuel Tank Mold1HX-24188-01-00
Required: 1
MOLD, FUEL TANK
Supersedes: 4GY-24188-00-00
$19.79
You save $2.20
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
