1994 Dirt Bike TT600E - TT600E (4GV2) [999] REAR SUSPENSION diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

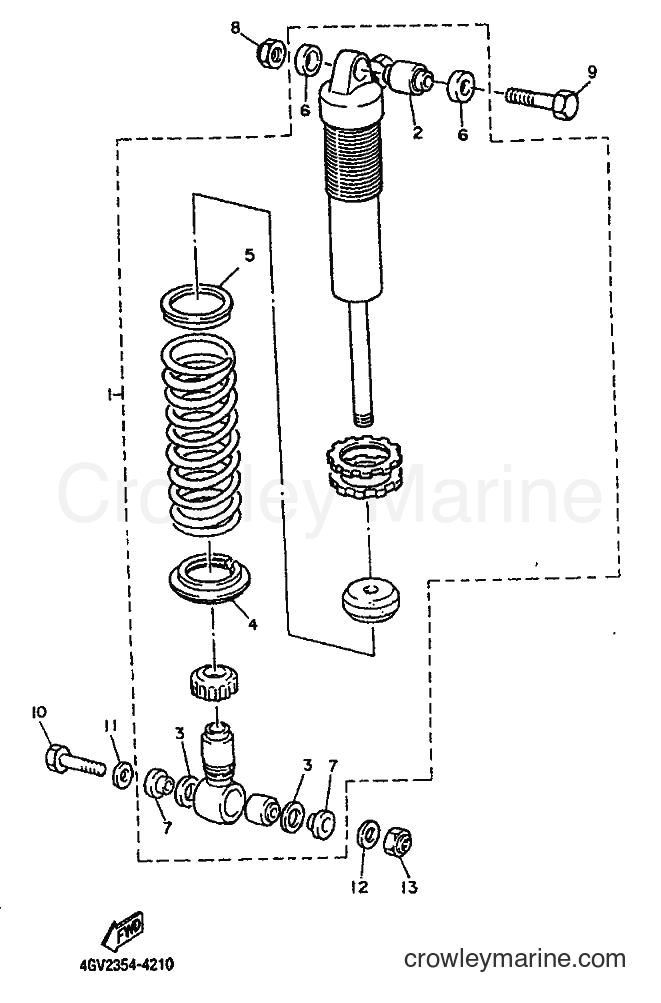

Yamaha Motors TT600E (4GV2) [999] - REAR SUSPENSION
Change View:
SHOCK ABSORBER ASSY, REAR
1
Yamaha Motors
SHOCK ABSORBER ASSY, REAR4GV-F2210-10
Required: 1
SHOCK ABSORBER ASSY, REAR
Price unavailable
. BUSH, REAR SHOCK ABSORBER
2
Yamaha Motors
. BUSH, REAR SHOCK ABSORBER4GV-F2216-00
Required: 1
. BUSH, REAR SHOCK ABSORBER
Price unavailable
. DAMPER, SHOCK ABSORBER LOWER
3
Yamaha Motors
. DAMPER, SHOCK ABSORBER LOWER4GV-F2217-10
Required: 2
. DAMPER, SHOCK ABSORBER LOWER
Price unavailable
. GUIDE, SPRING 1
4
Yamaha Motors
. GUIDE, SPRING 14GV-F2214-10
Required: 1
. GUIDE, SPRING 1
Price unavailable
. SEAT, SPRING LOWER
5
Yamaha Motors
. SEAT, SPRING LOWER4GV-F2223-10
Required: 1
. SEAT, SPRING LOWER
Price unavailable
. COVER
6
Yamaha Motors
. COVER4GV-F2221-10
Required: 2
. COVER
Price unavailable
. COLLAR, DISTANCE
7
Yamaha Motors
. COLLAR, DISTANCE4GV-F2253-10
Required: 2
. COLLAR, DISTANCE
Price unavailable
-10%
Self-Locking Nut
8
Yamaha Motors
Self-Locking Nut90185-10120-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
-10%
BOLT
9
Yamaha Motors
BOLT90109-10453-00
Required: 1
BOLT
Supersedes: 90109-10690-00
Cross Ship
Leaves in 2-5 days
$19.49
$17.54
You save $1.95
More details
-10%
Plain Washer
11
Yamaha Motors
Plain Washer90201-12027-00
Required: 1
WASHER, PLATE
Supersedes: 90201-120E6-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Plate Washer
12
Yamaha Motors
Plate Washer90201-100F7-00
Required: 1
WASHER, PLATE
Supersedes: 90201-10430-00
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
Self-Locking Nut
13
Yamaha Motors
Self-Locking Nut90185-10120-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
