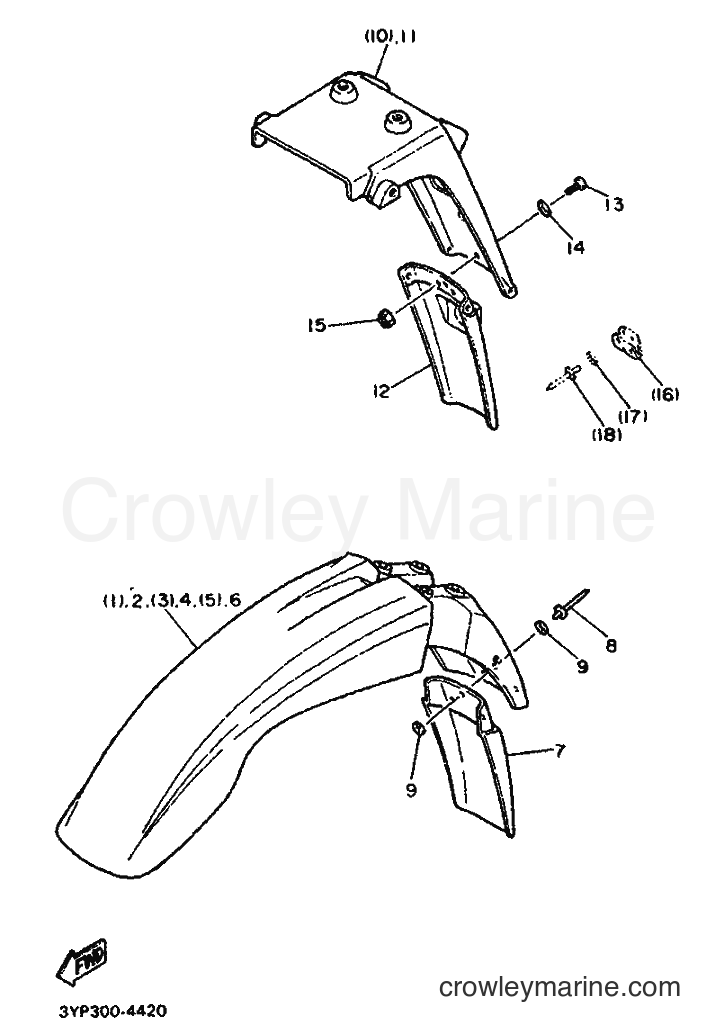

1994 Dirt Bike XT600 - XT600 (3YP6) [999] ALTERNATE FOR CHASSIS diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XT600 (3YP6) [999] - ALTERNATE FOR CHASSIS
Change View:
FENDER, FRONT
2
Yamaha Motors
FENDER, FRONT3TB-21511-10
Required: 1
FENDER, FRONT
Price unavailable
FENDER, FRONT
3
Yamaha Motors
FENDER, FRONT3RW-21511-60
Required: 1
FENDER, FRONT
Price unavailable
FENDER, FRONT
4
Yamaha Motors
FENDER, FRONT3TB-21511-60
Required: 1
FENDER, FRONT
Price unavailable
FENDER, FRONT
6
Yamaha Motors
FENDER, FRONT3TB-21511-70
Required: 1
FENDER, FRONT
Price unavailable
FLAP, FRONT FENDER
7
Yamaha Motors
FLAP, FRONT FENDER3TB-21521-00
Required: 1
FLAP, FRONT FENDER
Price unavailable
-10%
BLIND RIVET
8
Yamaha Motors
BLIND RIVET90267-32071-00
Required: 3
RIVET, BLIND
Cross Ship
Leaves in 2-5 days
$2.20
$1.98
You save $0.22
More details
BRACKET, LICENSE
11
Yamaha Motors
BRACKET, LICENSE2KF-21685-11
Required: 1
BRACKET, LICENSE
Price unavailable
FLAP
12
Yamaha Motors
FLAP1VJ-21621-00
Required: 1
FLAP
Price unavailable
-10%
Washer
14
Yamaha Motors
Washer92907-04200-00
Required: 4
WASHER, PLAIN
Supersedes: 92906-04200-00
Cross Ship
Leaves in 2-5 days
$1.80
$1.62
You save $0.18
More details
-10%
Reflect Bracket
16
Yamaha Motors
Reflect Bracket33G-85132-02-00
Required: 1
BRACKET, REFLECTOR 1
Cross Ship
Leaves in 2-5 days
$11.49
$10.34
You save $1.15
More details
-10%
Plate Washer
17
Yamaha Motors
Plate Washer90201-044H9-00
Required: 1
WASHER, PLATE
Supersedes: 90201-044A2-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
BLIND RIVET
18
Yamaha Motors
BLIND RIVET90267-40090-00
Required: 1
RIVET, BLIND
Cross Ship
Leaves in 2-5 days
$4.45
$4.00
You save $0.45
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
