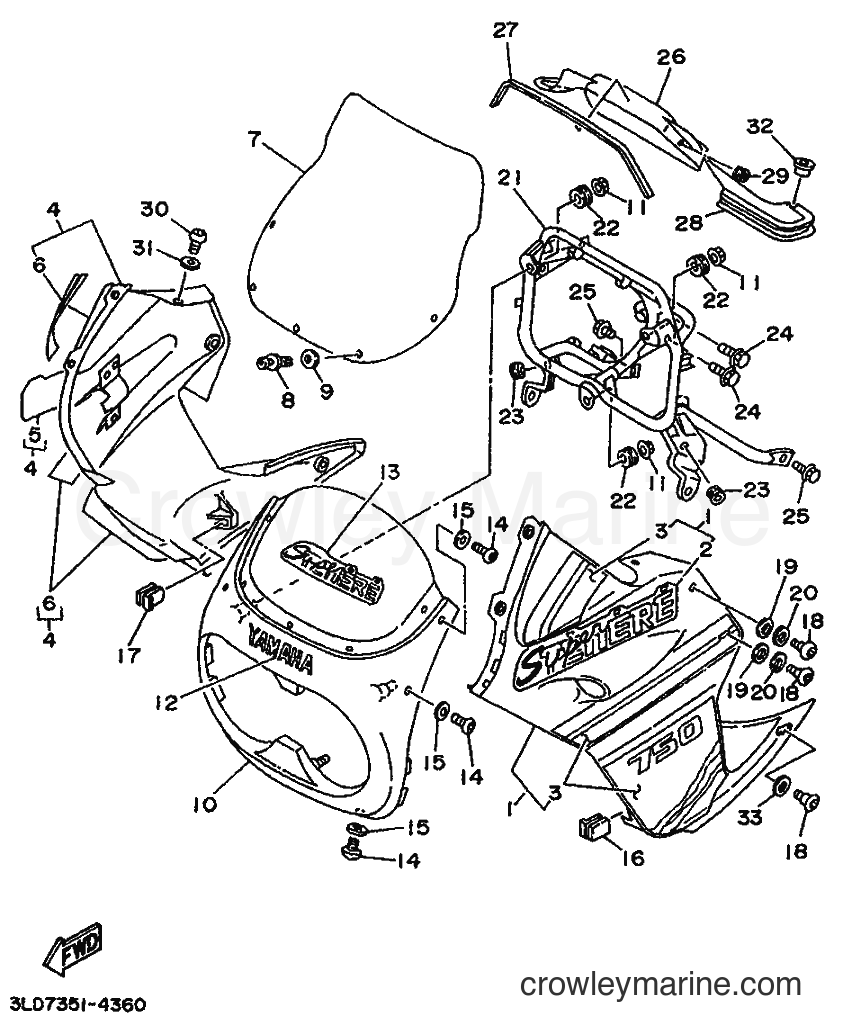

1994 Dirt Bike XTZ750 - XTZ750 (3TD6) [999] COWLING 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XTZ750 (3TD6) [999] - COWLING 1
Change View:
PANEL ASSEMBLY 1
1
Yamaha Motors
PANEL ASSEMBLY 13LD-Y283U-GO-7X
Required: 1
PANEL ASSEMBLY 1
Price unavailable
PANEL ASSEMBLY 1
1
Yamaha Motors
PANEL ASSEMBLY 13LD-Y283U-HO-P1
Required: 1
PANEL ASSEMBLY 1
Price unavailable
. EMBLEM
2
Yamaha Motors
. EMBLEM3LD-28328-FO
Required: 1
. EMBLEM
Price unavailable
. EMBLEM
2
Yamaha Motors
. EMBLEM3LD-28328-GO
Required: 1
. EMBLEM
Price unavailable
. GRAPHIC SET, LOWER COVER 1
3
Yamaha Motors
. GRAPHIC SET, LOWER COVER 13LD-28301-G1
Required: 1
. GRAPHIC SET, LOWER COVER 1
Price unavailable
. GRAPHIC SET, LOWER COVER 1
3
Yamaha Motors
. GRAPHIC SET, LOWER COVER 13LD-28301-F1
Required: 1
. GRAPHIC SET, LOWER COVER 1
Price unavailable
PANEL ASSEMBLY 2
4
Yamaha Motors
PANEL ASSEMBLY 23LD-Y283V-G0-7X
Required: 1
PANEL ASSEMBLY 2
Price unavailable
PANEL ASSEMBLY 2
4
Yamaha Motors
PANEL ASSEMBLY 23LD-Y283V-HO-P1
Required: 1
PANEL ASSEMBLY 2
Price unavailable
. EMBLEM
5
Yamaha Motors
. EMBLEM3LD-28328-FO
Required: 1
. EMBLEM
Price unavailable
. EMBLEM
5
Yamaha Motors
. EMBLEM3LD-28328-GO
Required: 1
. EMBLEM
Price unavailable
. GRAPHIC SET, LOWER COVER 2
6
Yamaha Motors
. GRAPHIC SET, LOWER COVER 23LD-28303-FO
Required: 1
. GRAPHIC SET, LOWER COVER 2
Price unavailable
. GRAPHIC SET, LOWER COVER 2
6
Yamaha Motors
. GRAPHIC SET, LOWER COVER 23LD-28303-GO
Required: 1
. GRAPHIC SET, LOWER COVER 2
Price unavailable
WINDSHIELD
7
Yamaha Motors
WINDSHIELD3LD-28381-01
Required: 1
WINDSHIELD
Price unavailable
-10%
SPECIAL SHAPE RIVET
8
Yamaha Motors
SPECIAL SHAPE RIVET90269-05049-00
Required: 5
RIVET
Cross Ship
Leaves in 2-5 days
$2.95
$2.66
You save $0.29
More details
Plate Washer
9
Yamaha Motors
Plate Washer92907-05600-00
Required: 5
WASHER, PLATE
Supersedes: 92906-05600-00
Cross Ship
Leaves in 2-5 days
$1.98
More details
BODY, COWLING
10
Yamaha Motors
BODY, COWLING3LD-28351-00-P1
Required: 1
BODY, COWLING
Price unavailable
BODY, COWLING
10
Yamaha Motors
BODY, COWLING3LD-28351-00-PO
Required: 1
BODY, COWLING
Price unavailable
-10%
SPECIAL SHAPE NUT
11
Yamaha Motors
SPECIAL SHAPE NUT90179-06403-00
Required: 3
NUT
Supersedes: 90179-06009-00
Cross Ship
Leaves in 2-5 days
$6.99
$6.29
You save $0.70
More details
-10%
Yamaha 3LY Emblem
12
Yamaha Motors
Yamaha 3LY Emblem99247-00100-00
Required: 1
EMBLEM, YAMAHA
Supersedes: 99237-00100-00
Cross Ship
Leaves in 2-5 days
$16.49
$14.84
You save $1.65
More details
EMBLEM
13
Yamaha Motors
EMBLEM3LD-28315-GO
Required: 1
EMBLEM
Price unavailable
EMBLEM
13
Yamaha Motors
EMBLEM3LD-28315-FO
Required: 1
EMBLEM
Price unavailable
-10%
Plate Washer
15
Yamaha Motors
Plate Washer90202-05180-00
Required: 6
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$11.49
$10.34
You save $1.15
More details
GROMMET
16
Yamaha Motors
GROMMET90480-16515
Required: 1
GROMMET
Price unavailable
GROMMET
17
Yamaha Motors
GROMMET90480-16515
Required: 1
GROMMET
Price unavailable
BOLT, LEG SHIELD
18
Yamaha Motors
BOLT, LEG SHIELD3LD-28331-01
Required: 6
BOLT, LEG SHIELD
Price unavailable
WASHER
19
Yamaha Motors
WASHER3LD-28319-00
Required: 4
WASHER
Price unavailable
-10%
Plate Washer
20
Yamaha Motors
Plate Washer90201-087H6-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$2.60
$2.34
You save $0.26
More details
STAY 1
21
Yamaha Motors
STAY 13LD-28356-01
Required: 1
STAY 1
Price unavailable
-10%
GROMMET, WATER TUBE (UPPER)
22
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-14229-00
Required: 3
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Grommet
23
Yamaha Motors
Grommet90480-13163-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$7.99
$7.19
You save $0.80
More details
BOLT, FLANGE
24
Yamaha Motors
BOLT, FLANGE91026-08030
Required: 2
BOLT, FLANGE
Price unavailable
BOLT, FLANGE
25
Yamaha Motors
BOLT, FLANGE91026-08012
Required: 2
BOLT, FLANGE
Price unavailable
PANEL, CONSOLE 2
26
Yamaha Motors
PANEL, CONSOLE 23LD-2837M-00
Required: 1
PANEL, CONSOLE 2
Price unavailable
DAMPER
27
Yamaha Motors
DAMPER3LD-28371-00
Required: 1
DAMPER
Price unavailable
MOLE 1
28
Yamaha Motors
MOLE 13LD-28345-00
Required: 2
MOLE 1
Price unavailable
-10%
GROMMET, WATER TUBE (UPPER)
29
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-13014-00
Required: 2
GROMMET
Supersedes: 90480-13398-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Plate Washer
31
Yamaha Motors
Plate Washer90202-05180-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$11.49
$10.34
You save $1.15
More details
-10%
Plate Washer
33
Yamaha Motors
Plate Washer90202-08146-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$11.49
$10.34
You save $1.15
More details
