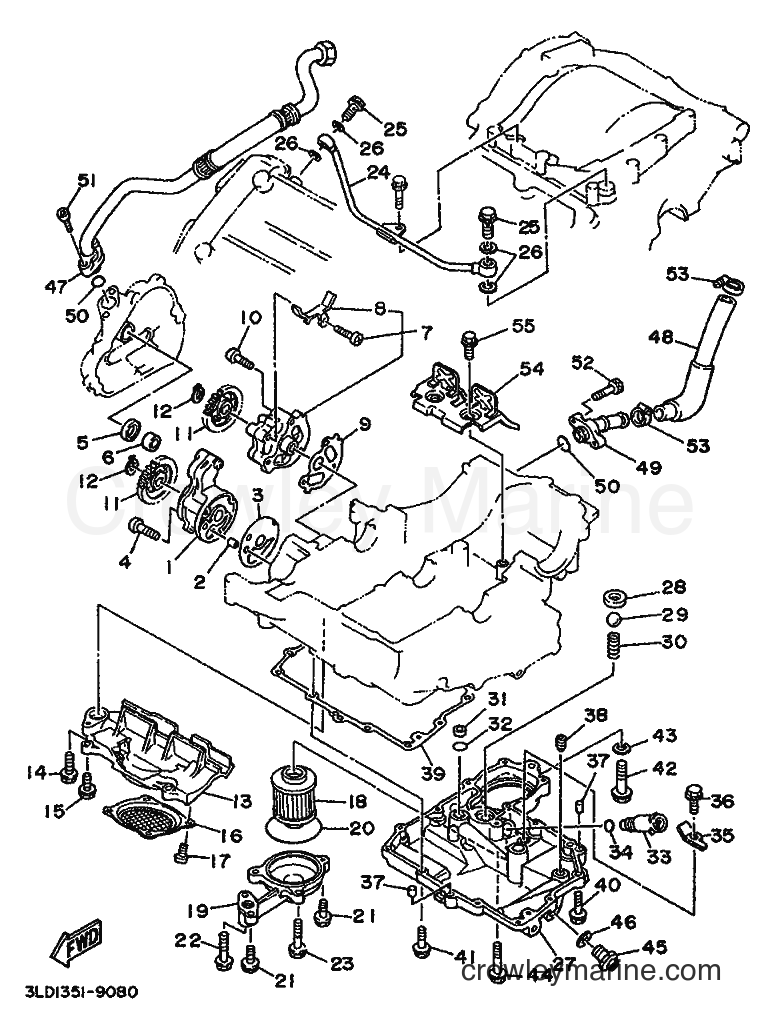

1994 Dirt Bike XTZ750 - XTZ750 (3TD6) [999] OIL PUMP diagram
![Yamaha Motors XTZ750 (3TD6) [999] - OIL PUMP](https://cdn.crowleymarine.com/yamaha/b2ICsIV2.png)
-10%
$158.39
You save $17.60
-10%
2
Yamaha Motors
Dowel Pin91808-12024-00
Required: 1
PIN, DOWEL
Supersedes: 99510-08012-00
$4.09
You save $0.46
-10%
3
Yamaha Motors
Pump Cover Gasket5PS-13329-00-00
Required: 1
GASKET, PUMP COVER
Supersedes: 3LD-13329-00-00
$2.02
You save $0.23
-10%
4
Yamaha Motors
Pan Head Screw98580-06545-00
Required: 3
SCREW, PAN HEAD
Supersedes: 98503-06045-00
$5.84
You save $0.65
-10%
$8.54
You save $0.95
-10%
7
Yamaha Motors
OIL PUMP ASY., 23LD-13303-00-00
Required: 1
OIL PUMP ASSY, 2
No longer availableSearch Nationwide Inventory
$146.69
You save $16.30
-10%
No longer availableSearch Nationwide Inventory
$10.34
You save $1.15
-10%
9
Yamaha Motors
Pump Cover Gasket3LD-13339-00-00
Required: 1
GASKET, PUMP COVER
$2.66
You save $0.29
-10%
10
Yamaha Motors
Pan Head Screw98507-06035-00
Required: 3
SCREW, PAN HEAD
Supersedes: 98501-06035-00
$8.54
You save $0.95
-10%
11
Yamaha Motors
Pump Driven Gear3VD-13325-00-00
Required: 2
GEAR, PUMP DRIVEN
No longer availableSearch Nationwide Inventory
$30.59
You save $3.40
-10%
$8.54
You save $0.95
13
Yamaha Motors
HOUSING, STRAINER3LD-13412-00
Required: 1
HOUSING, STRAINER
Price unavailable
-20%
14
Yamaha Motors
Small Flange Bolt95027-06025-00
Required: 1
BOLT, FLANGE
Supersedes: 95026-06025-00
In stock
Only 1 remaining
$3.33
You save $0.83
-10%
15
Yamaha Motors
Bolt Flange (6U1)95027-06020-00
Required: 4
BOLT, FLANGE
Supersedes: 95026-06020-00
In stock
Only 1 remaining
$1.08
You save $0.12
16
Yamaha Motors
STRAINER, OIL3LD-13411-00
Required: 1
STRAINER, OIL
Price unavailable
-10%
17
Yamaha Motors
Pan Head Screw98580-06010-00
Required: 4
SCREW, PAN HEAD
Supersedes: 98501-06010-00
$8.54
You save $0.95
-50%
18
Yamaha Motors
Oil Element Assembly Cl4X7-13440-90-00
Required: 1
ELEMENT ASSY, OIL CLEANER
In stock
Only 1 remaining
$7.74
You save $7.74
-10%
19
Yamaha Motors
OIL ELEMENT COVER3LD-13447-00-00
Required: 1
COVER, OIL ELEMENT
No longer availableSearch Nationwide Inventory
$68.66
You save $7.63
-10%
$8.09
You save $0.90
-10%
21
Yamaha Motors
Bolt Flange (6U1)95027-06020-00
Required: 2
BOLT, FLANGE
Supersedes: 95026-06020-00
In stock
Only 1 remaining
$1.08
You save $0.12
-10%
22
Yamaha Motors
Small Flange Bolt95027-06030-00
Required: 1
BOLT, FLANGE
Supersedes: 95026-06030-00
$3.87
You save $0.43
-10%
23
Yamaha Motors
Small Flange Bolt95027-06040-00
Required: 2
BOLT, FLANGE
Supersedes: 95026-06040-00
$3.19
You save $0.35
-10%
24
Yamaha Motors
Delivery Pipe 15PS-13161-00-00
Required: 1
PIPE, DELIVERY 1
Supersedes: 3LD-13161-00-00
$42.29
You save $4.70
-10%
$3.92
You save $0.44
-50%
In stock
Only 2 remaining
$1.73
You save $1.73
27
Yamaha Motors
COVER, STRAINER3LD-13417-00
Required: 1
COVER, STRAINER
Price unavailable
-10%
28
Yamaha Motors
CHECK BALL SEAT3LD-13113-00-00
Required: 1
SEAT, CHECK BALL
$13.94
You save $1.55
-10%
$8.54
You save $0.95
-10%
30
Yamaha Motors
Compression Spring90501-104F9-00
Required: 1
SPRING, COMPRESSION
$2.07
You save $0.23
-10%
$14.84
You save $1.65
-15%
In stock
5+ in stock
$7.22
You save $1.27
-10%
33
Yamaha Motors
Relief Valve Assembly11H-13490-00-00
Required: 1
RELIEF VALVE ASSY
$81.89
You save $9.10
-50%
In stock
Only 3 remaining
$2.02
You save $2.02
-10%
$3.29
You save $0.36
-10%
36
Yamaha Motors
Flange Bolt (4MY)95027-06012-00
Required: 1
BOLT, WASHER BASED
Supersedes: 90105-06553-00
$3.78
You save $0.42
-1%
No longer availableSearch Nationwide Inventory
$2.08
-10%
38
Yamaha Motors
NOZZLE4KM-13572-01-00
Required: 1
NOZZLE 1
Supersedes: 4H7-15138-00-00
$7.19
You save $0.80
39
Yamaha Motors
GASKET, STRAINER COVER3LD-13414-00
Required: 1
GASKET, STRAINER COVER
Price unavailable
-50%
40
Yamaha Motors
Flange Small Head Bolt95024-06025-00
Required: 2
BOLT, WASHER BASED
Supersedes: 90105-06456-00
In stock
Only 3 remaining
$1.23
You save $1.23
-20%
41
Yamaha Motors
Small Flange Bolt95027-06025-00
Required: 11
BOLT, FLANGE
Supersedes: 95026-06025-00
In stock
Only 1 remaining
$3.33
You save $0.83
-10%
42
Yamaha Motors
Flange Bolt95024-10040-00
Required: 1
BOLT, FLANGE
Supersedes: 95021-10040-00
$3.65
You save $0.40
-50%
In stock
Only 2 remaining
$1.73
You save $1.73
-10%
44
Yamaha Motors
Small Bolt Flange95027-06035-00
Required: 1
BOLT, FLANGE
Supersedes: 95026-06035-00
$2.16
You save $0.24
$3.33
-15%
In stock
5+ in stock
$2.69
You save $0.48
47
Yamaha Motors
HOSE, OIL 13LD-13464-00
Required: 1
HOSE, OIL 1
Price unavailable
48
Yamaha Motors
HOSE, OIL 23LD-13465-00
Required: 1
HOSE, OIL 2
Price unavailable
49
Yamaha Motors
PIPE, OIL 13LD-13416-00
Required: 1
PIPE, OIL 1
Price unavailable
-50%
In stock
5+ in stock
$0.85
You save $0.85
-6%
No longer availableSearch Nationwide Inventory
$2.15
You save $0.15
52
Yamaha Motors
Bolt91317-06020-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-06093-00
$4.23
-10%
No longer availableSearch Nationwide Inventory
$12.14
You save $1.35
54
Yamaha Motors
PLATE, BAFFLE3LD-13317-00
Required: 1
PLATE, BAFFLE
Price unavailable
-10%
55
Yamaha Motors
Flange Bolt (4MY)95027-06012-00
Required: 2
BOLT, WASHER BASED
Supersedes: 90105-06553-00
$3.78
You save $0.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
