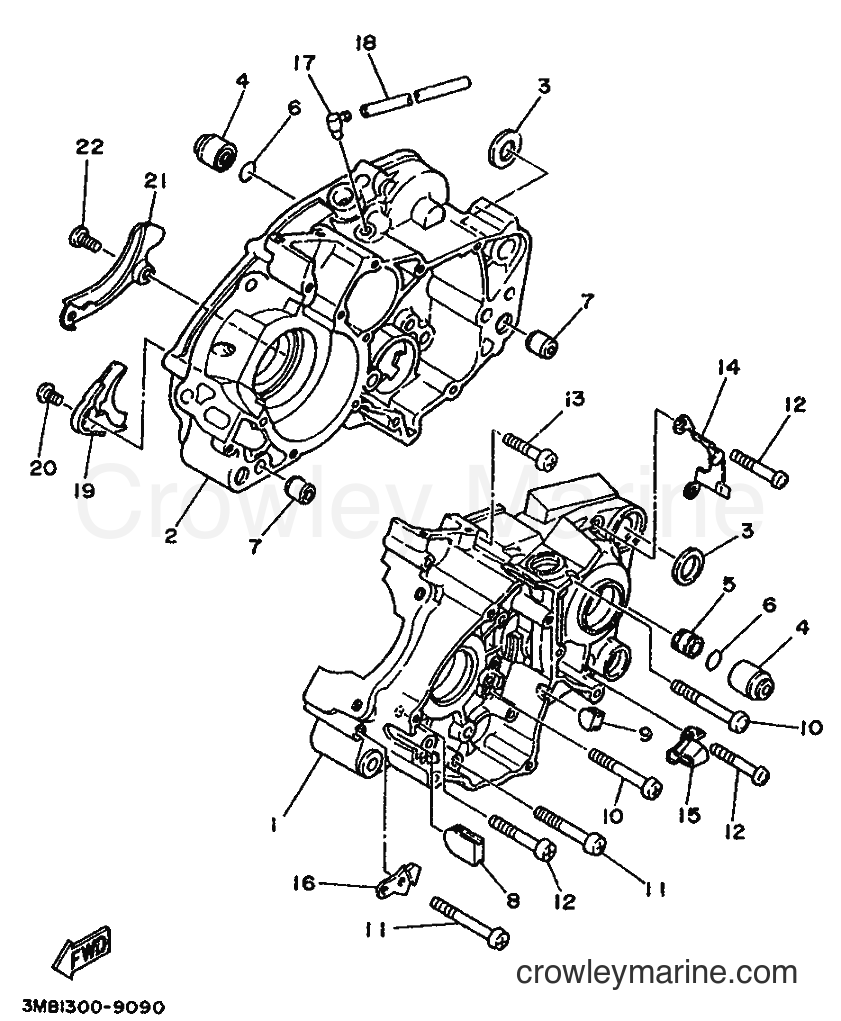

1995 Dirt Bike DT125RE - DT125RE (4DK5) [999] CRANKCASE diagram
![Yamaha Motors DT125RE (4DK5) [999] - CRANKCASE](https://cdn.crowleymarine.com/yamaha/HPSKIZUx.png)
1
Yamaha Motors
CRANKCASE 13MB-15111-02
Required: 1
CRANKCASE 1
Price unavailable
2
Yamaha Motors
CRANKCASE 23BN-15121-03
Required: 1
CRANKCASE 2
Price unavailable
-10%
3
Yamaha Motors
Plain Washer90201-16021-00
Required: 2
WASHER, PLATE
Supersedes: 90201-170M2-00
$8.54
You save $0.95
-10%
4
Yamaha Motors
DAMPER 290388-08003-00
Required: 2
DAMPER, ENGINE MOUNT 1
Supersedes: 328-15316-00-00
$17.54
You save $1.95
5
Yamaha Motors
SPACER, ENGINE MOUNT3BN-15317-00
Required: 1
SPACER, ENGINE MOUNT
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$3.15
You save $0.35
-50%
7
Yamaha Motors
Dowel Pin99530-12016-00
Required: 2
PIN, DOWEL
Supersedes: 99510-12016-00
In stock
Only 2 remaining
$2.45
You save $2.45
8
Yamaha Motors
PLUG, BLIND 13MB-15167-01
Required: 2
PLUG, BLIND 1
Price unavailable
9
Yamaha Motors
PLUG, BLIND 23MB-15168-00
Required: 1
PLUG, BLIND 2
Price unavailable
-20%
10
Yamaha Motors
Pan Head Screw98507-06060-00
Required: 4
SCREW, PAN HEAD
In stock
Only 2 remaining
$6.39
You save $1.60
-10%
11
Yamaha Motors
Pan Head Screw98507-06065-00
Required: 3
SCREW, PAN HEAD
$7.64
You save $0.85
-10%
12
Yamaha Motors
Pan Screw98507-06050-00
Required: 5
SCREW, PAN HEAD
$3.19
You save $0.35
-10%
13
Yamaha Motors
Pan Screw98507-06040-00
Required: 1
SCREW, PAN HEAD
$2.90
You save $0.32
14
Yamaha Motors
CLAMP90462-08189
Required: 1
CLAMP
Price unavailable
15
Yamaha Motors
CLAMP90462-10190
Required: 1
CLAMP
Price unavailable
16
Yamaha Motors
BRACKET3BN-15199-01
Required: 1
BRACKET
Price unavailable
-10%
$6.74
You save $0.75
-10%
$10.34
You save $1.15
-10%
No longer availableSearch Nationwide Inventory
$4.49
You save $0.50
-10%
20
Yamaha Motors
PAN SCREW98507-08010-00
Required: 1
SCREW, PAN HEAD
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$6.29
You save $0.70
-10%
22
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98507-06012-00
$3.69
You save $0.41
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
