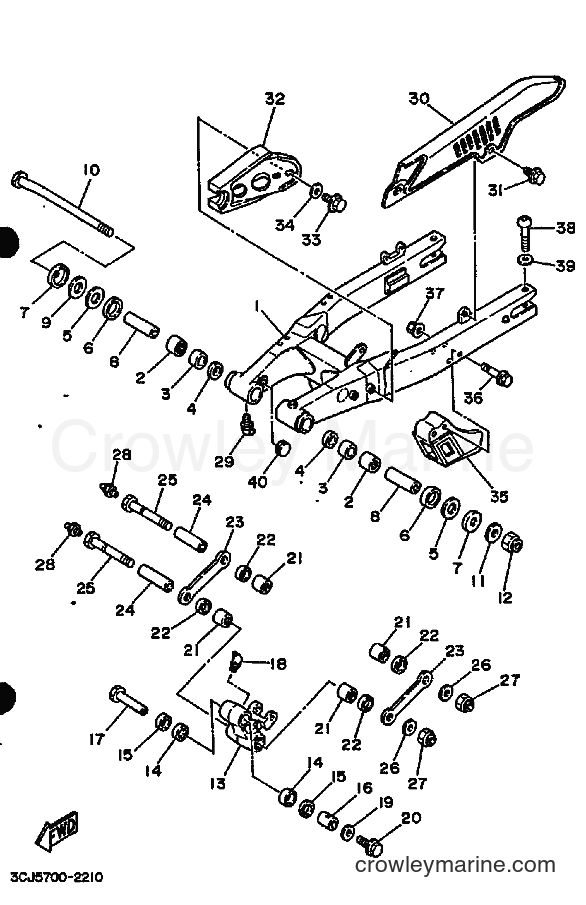

1995 Dirt Bike DT200R - DT200R (3CJ7) [010] REAR ARM diagram
![Yamaha Motors DT200R (3CJ7) [010] - REAR ARM](https://cdn.crowleymarine.com/yamaha/zXcvUvcB.png)
1
Yamaha Motors
REAR ARM COMP3ET-22110-00
Required: 1
REAR ARM COMP
Price unavailable
-10%
3
Yamaha Motors
SOLID BUSH90380-22111-00
Required: 2
BUSH, SOLID (23X)
$19.79
You save $2.20
-10%
4
Yamaha Motors
DD-Type Oil Seal93106-22019-00
Required: 2
OIL SEAL (DC22-28-8)
$11.24
You save $1.25
-10%
5
Yamaha Motors
Plate Washer90201-254H8-00
Required: 2
WASHER, PLATE (30X)
$9.44
You save $1.05
-10%
6
Yamaha Motors
OSO-Type Oil Seal93108-35004-00
Required: 2
OIL SEAL (35-41-8)
$15.74
You save $1.75
-10%
$16.19
You save $1.80
-10%
$42.29
You save $4.70
-10%
9
Yamaha Motors
Plate Washer90201-251F6-00
Required: 2
WASHER, PLATE (5Y1)
No longer availableSearch Nationwide Inventory
$8.54
You save $0.95
-10%
10
Yamaha Motors
Chain Protector3R4-22147-00-00
Required: 1
70 PROTECTOR CHAIN
$39.59
You save $4.40
-10%
11
Yamaha Motors
Plate Washer90201-164H4-00
Required: 1
WASHER, PLATE
$9.44
You save $1.05
-10%
12
Yamaha Motors
SELF-LOCKING NUT90185-16002-00
Required: 1
NUT, SELF-LOCKING
Supersedes: 90185-16127-00
$16.64
You save $1.85
13
Yamaha Motors
ARM, RELAY3ET-2217A-00
Required: 1
ARM, RELAY
Price unavailable
-10%
14
Yamaha Motors
BEARING,CYL.#1593315-32044-00
Required: 2
BEARING (YT2015)
$33.29
You save $3.70
-10%
15
Yamaha Motors
Oil Seal93109-20076-00
Required: 2
OIL SEAL (5X6)
Supersedes: 93109-20029-00
$15.74
You save $1.75
16
Yamaha Motors
COLLAR(3BN)90387-164U7
Required: 1
COLLAR(3BN)
Price unavailable
-10%
17
Yamaha Motors
UNION NUT90402-10005-00
Required: 1
NUT, UNION (1LV)
No longer availableSearch Nationwide Inventory
$20.69
You save $2.30
-10%
18
Yamaha Motors
Grease Nipple93700-06005-00
Required: 1
GREASE NIPPLE,CHROME ANGLED
$12.14
You save $1.35
-10%
19
Yamaha Motors
Plain Washer90201-106F2-00
Required: 1
WASHER, PLATE (17K)
$10.34
You save $1.15
-10%
20
Yamaha Motors
Flange Bolt (3HP)95817-10016-00
Required: 1
BOLT, FLANGE (3R1)
Supersedes: 95811-10016-00
$8.54
You save $0.95
-10%
21
Yamaha Motors
BEARING,CYL.#1593315-32057-00
Required: 4
BEARING (YT202720E01)
Supersedes: 93315-22045-00
$32.39
You save $3.60
-10%
22
Yamaha Motors
Oil Seal93109-20076-00
Required: 4
OIL SEAL (5X6)
Supersedes: 93109-20029-00
$15.74
You save $1.75
23
Yamaha Motors
ROD, CONNECTING 13bN-2217F-00
Required: 2
ROD, CONNECTING 1
Price unavailable
24
Yamaha Motors
COLLAR(3BN)90387-164U8
Required: 2
COLLAR(3BN)
Price unavailable
25
Yamaha Motors
BOLT, UNION(2WG)90401-14136
Required: 2
BOLT, UNION(2WG)
Price unavailable
-10%
26
Yamaha Motors
Plate Washer90201-160F6-00
Required: 2
WASHER, PLATE
$8.54
You save $0.95
-50%
27
Yamaha Motors
Self-Locking Nut90185-14070-00
Required: 2
NUT, SELF LOCKING
In stock
Only 1 remaining
$7.24
You save $7.24
-15%
28
Yamaha Motors
Grease Nipple93700-06M03-00
Required: 2
NIPPLE,GREASE
Supersedes: 93700-06004-00
In stock
5+ in stock
$7.22
You save $1.27
-10%
29
Yamaha Motors
Grease Nipple93700-06005-00
Required: 2
GREASE NIPPLE,CHROME ANGLED
$12.14
You save $1.35
-10%
$97.19
You save $10.80
-10%
31
Yamaha Motors
Bolt with Washer90119-06117-00
Required: 2
BOLT, WITH WASHER 55K
$4.94
You save $0.55
-10%
$62.09
You save $6.90
-10%
33
Yamaha Motors
Bolt with Washer90119-06117-00
Required: 2
BOLT, WITH WASHER 55K
$4.94
You save $0.55
-10%
34
Yamaha Motors
Special Shape Washer90209-06187-00
Required: 2
WASHER (14U)
Supersedes: 90209-06223-00
$8.54
You save $0.95
35
Yamaha Motors
GUARD, CHAIN34X-22153-00
Required: 1
GUARD, CHAIN
Price unavailable
-10%
36
Yamaha Motors
Flange Bolt95817-06050-00
Required: 2
BOLT, FLANGE (3FW)
Supersedes: 95807-06050-00
$4.14
You save $0.46
-10%
37
Yamaha Motors
Flange Nut95707-06500-00
Required: 2
NUT, FLANGE(4MV)
$0.90
You save $0.10
38
Yamaha Motors
SCREW (2YY)92017-06045
Required: 2
SCREW (2YY)
Price unavailable
-10%
39
Yamaha Motors
Plate Washer92907-06600-00
Required: 2
P97 WASHER (6TA)
$0.90
You save $0.10
-10%
$9.44
You save $1.05
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
