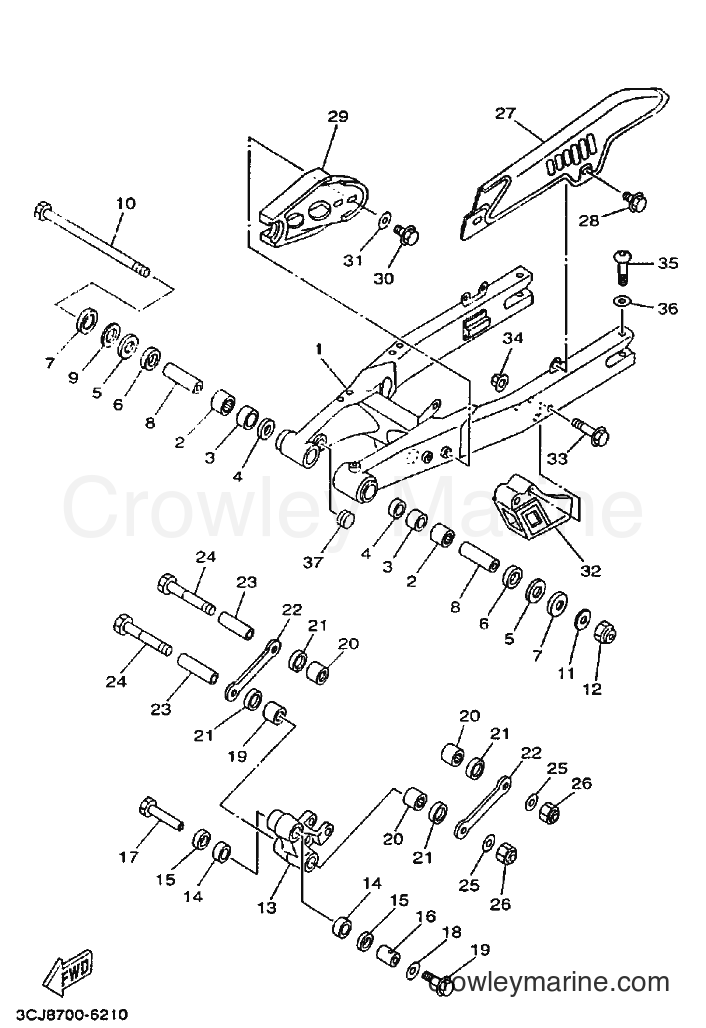

1996 Dirt Bike DT200R - DT200R (3CJ8) [010] REAR ARM diagram
![Yamaha Motors DT200R (3CJ8) [010] - REAR ARM](https://cdn.crowleymarine.com/yamaha/LcN2ligb.png)
-10%
2
Yamaha Motors
BEARING93315-22251-00
Required: 2
BEARING, CYLINDRICAL
$30.59
You save $3.40
-10%
3
Yamaha Motors
SOLID BUSH90380-22111-00
Required: 2
BUSH, SOLID (23X)
$19.79
You save $2.20
-10%
4
Yamaha Motors
DD-Type Oil Seal93106-22019-00
Required: 2
OIL SEAL (DC22-28-8)
$11.24
You save $1.25
-10%
5
Yamaha Motors
Plate Washer90201-254H8-00
Required: 2
WASHER, PLATE (30X)
$9.44
You save $1.05
-10%
6
Yamaha Motors
OSO-Type Oil Seal93108-35004-00
Required: 2
OIL SEAL (35-41-8)
$15.74
You save $1.75
-10%
$16.19
You save $1.80
-10%
$42.29
You save $4.70
-10%
9
Yamaha Motors
Plate Washer90201-251F6-00
Required: 2
WASHER, PLATE (5Y1)
No longer availableSearch Nationwide Inventory
$8.54
You save $0.95
-10%
10
Yamaha Motors
Pivot Shaft5X6-22141-01-00
Required: 1
SHAFT, PIVOT
Supersedes: 3R4-22141-00-00
$53.99
You save $6.00
-10%
11
Yamaha Motors
Plate Washer90201-164H4-00
Required: 1
WASHER, PLATE
$9.44
You save $1.05
-10%
12
Yamaha Motors
SELF-LOCKING NUT90185-16002-00
Required: 1
NUT, SELF-LOCKING
Supersedes: 90185-16127-00
$16.64
You save $1.85
13
Yamaha Motors
ARM, RELAY3ET-2217A-10
Required: 1
ARM, RELAY
Price unavailable
-10%
$33.29
You save $3.70
-10%
15
Yamaha Motors
Oil Seal93109-20076-00
Required: 2
OIL SEAL (5X6)
Supersedes: 93109-20029-00
$15.74
You save $1.75
16
Yamaha Motors
COLLAR(3BN)90387-164U7
Required: 1
COLLAR(3BN)
Price unavailable
-10%
17
Yamaha Motors
UNION NUT90402-10005-00
Required: 1
NUT, UNION (1LV)
No longer availableSearch Nationwide Inventory
$20.69
You save $2.30
-10%
18
Yamaha Motors
Plain Washer90201-106F2-00
Required: 1
WASHER, PLATE (17K)
$10.34
You save $1.15
-10%
19
Yamaha Motors
Flange Bolt (3HP)95817-10016-00
Required: 1
BOLT, FLANGE (3R1)
Supersedes: 95811-10016-00
$8.54
You save $0.95
-10%
$32.39
You save $3.60
-10%
21
Yamaha Motors
Oil Seal93109-20076-00
Required: 4
OIL SEAL (5X6)
Supersedes: 93109-20029-00
$15.74
You save $1.75
22
Yamaha Motors
ROD, CONNECTING 13BN-2217F-00
Required: 2
ROD, CONNECTING 1
Price unavailable
23
Yamaha Motors
COLLAR(3BN)90387-164U8
Required: 2
COLLAR(3BN)
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$26.09
You save $2.90
-10%
25
Yamaha Motors
Plate Washer90201-160F6-00
Required: 2
WASHER, PLATE
$8.54
You save $0.95
-10%
26
Yamaha Motors
Self-Locking Nut90185-14112-00
Required: 2
306 NUT, SEL-LOCKING
$11.24
You save $1.25
-10%
27
Yamaha Motors
CHAIN CASE3TB-22311-00-00
Required: 1
CASE, CHAIN
Supersedes: 34L-22311-01-00
$97.19
You save $10.80
-10%
28
Yamaha Motors
Bolt with Washer90119-06117-00
Required: 2
BOLT, WITH WASHER 55K
$4.94
You save $0.55
-10%
$62.09
You save $6.90
-10%
30
Yamaha Motors
Bolt with Washer90119-06117-00
Required: 2
BOLT, WITH WASHER 55K
$4.94
You save $0.55
32
Yamaha Motors
GUARD, CHAIN34X-22153-00
Required: 1
GUARD, CHAIN
Price unavailable
-10%
33
Yamaha Motors
Flange Bolt95817-06050-00
Required: 2
BOLT, FLANGE (3FW)
Supersedes: 95807-06050-00
$4.14
You save $0.46
-10%
34
Yamaha Motors
Flange Nut95707-06500-00
Required: 2
NUT, FLANGE(4MV)
$0.90
You save $0.10
35
Yamaha Motors
BOLT, BUTTON HEAD92017-06045
Required: 2
BOLT, BUTTON HEAD
Price unavailable
-15%
36
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
P61 WASHER, PLATE
Supersedes: 92901-06600-00
In stock
5+ in stock
$2.51
You save $0.44
-10%
$9.44
You save $1.05
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
