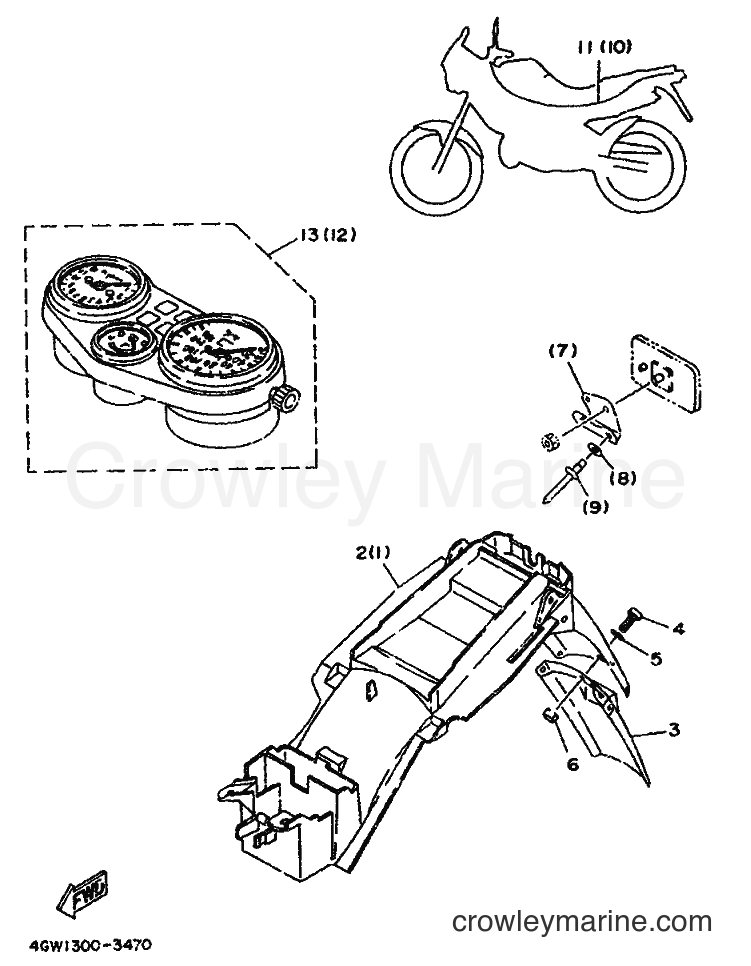

1996 Dirt Bike TDR125 - TDR125 (4GW4) [040] ALTERNATE FOR CHASSIS diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TDR125 (4GW4) [040] - ALTERNATE FOR CHASSIS
Change View:
BRACKET, LICENSE
1
Yamaha Motors
BRACKET, LICENSE4FU-21685-00
Required: 1
BRACKET, LICENSE
Price unavailable
BRACKET, LICENSE
2
Yamaha Motors
BRACKET, LICENSE4FU-21685-10
Required: 1
BRACKET, LICENSE
Price unavailable
FLAP
3
Yamaha Motors
FLAP1VJ-21621-00
Required: 1
FLAP
Price unavailable
-10%
PAN HEAD SCREW
4
Yamaha Motors
PAN HEAD SCREW98507-04018-00
Required: 4
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$2.35
$2.12
You save $0.23
More details
-10%
Washer
5
Yamaha Motors
Washer92907-04200-00
Required: 4
WASHER
Cross Ship
Leaves in 2-5 days
$1.80
$1.62
You save $0.18
More details
-10%
U-Nut (6E8)
6
Yamaha Motors
U-Nut (6E8)95617-04100-00
Required: 4
NUT, U
Supersedes: 95607-04100-00
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
Reflect Bracket
7
Yamaha Motors
Reflect Bracket33G-85132-02-00
Required: 1
BRACKET, REFLECTOR 1
Cross Ship
Leaves in 2-5 days
$11.49
$10.34
You save $1.15
More details
-10%
Plate Washer
8
Yamaha Motors
Plate Washer90201-044H9-00
Required: 1
WASHER, PLATE
Supersedes: 90201-04018-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
BLIND RIVET
9
Yamaha Motors
BLIND RIVET90267-40090-00
Required: 1
RIVET, BLIND
Cross Ship
Leaves in 2-5 days
$4.45
$4.00
You save $0.45
More details
WIRE HARNESS ASSY
10
Yamaha Motors
WIRE HARNESS ASSY4FU-82590-20
Required: 1
WIRE HARNESS ASSY
Price unavailable
WIRE HARNESS ASSY
11
Yamaha Motors
WIRE HARNESS ASSY4FU-82590-40
Required: 1
WIRE HARNESS ASSY
Price unavailable
SPEEDOMETER ASSY
12
Yamaha Motors
SPEEDOMETER ASSY4GW-83500-00
Required: 1
SPEEDOMETER ASSY
Price unavailable
SPEEDOMETER ASSY
13
Yamaha Motors
SPEEDOMETER ASSY4FU-83500-00
Required: 1
SPEEDOMETER ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
