1996 Dirt Bike TDR125 - TDR125 (4GW4) [050] ALTERNATE FOR CHASSIS diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

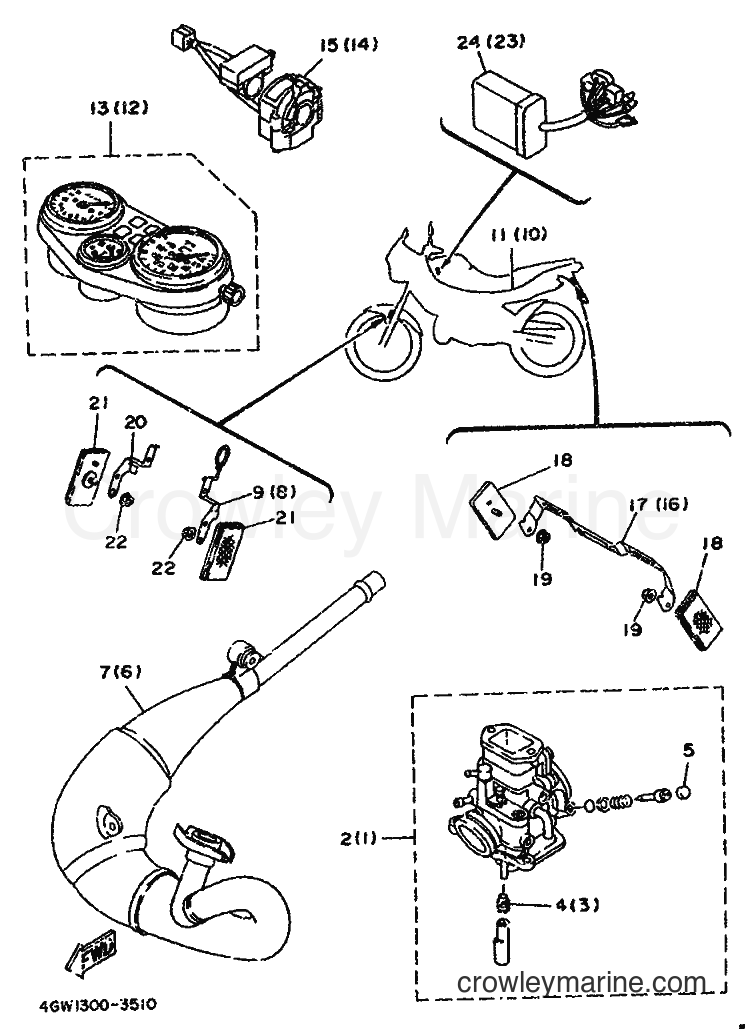

Yamaha Motors TDR125 (4GW4) [050] - ALTERNATE FOR CHASSIS
Change View:
CARBURETOR ASSY 1
1
Yamaha Motors
CARBURETOR ASSY 14FU-14101-01
Required: 1
CARBURETOR ASSY 1
Price unavailable
CARBURETOR ASSY 1
2
Yamaha Motors
CARBURETOR ASSY 14GX-14101-01
Required: 1
CARBURETOR ASSY 1
Price unavailable
. JET, PILOT
3
Yamaha Motors
. JET, PILOT1NT-14142-25
Required: 1
. JET, PILOT
Price unavailable
. JET, PILOT
4
Yamaha Motors
. JET, PILOT1NT-14142-20
Required: 1
. JET, PILOT
Price unavailable
. CAP
5
Yamaha Motors
. CAP2RJ-14118-00
Required: 1
. CAP
Price unavailable
EXHAUST PIPE ASSY 1
6
Yamaha Motors
EXHAUST PIPE ASSY 14FU-14610-01
Required: 1
EXHAUST PIPE ASSY 1
Price unavailable
EXHAUST PIPE ASSY 1
7
Yamaha Motors
EXHAUST PIPE ASSY 14GX-14610-01
Required: 1
EXHAUST PIPE ASSY 1
Price unavailable
HOLDER, CABLE 1
8
Yamaha Motors
HOLDER, CABLE 14FU-23318-00
Required: 1
HOLDER, CABLE 1
Price unavailable
HOLDER, CABLE 1
9
Yamaha Motors
HOLDER, CABLE 14GX-23318-00
Required: 1
HOLDER, CABLE 1
Price unavailable
WIRE HARNESS ASSY
10
Yamaha Motors
WIRE HARNESS ASSY4FU-82590-20
Required: 1
WIRE HARNESS ASSY
Price unavailable
WIRE HARNESS ASSY
11
Yamaha Motors
WIRE HARNESS ASSY4FU-82590-40
Required: 1
WIRE HARNESS ASSY
Price unavailable
SPEEDOMETER ASSY
12
Yamaha Motors
SPEEDOMETER ASSY4GW-83500-00
Required: 1
SPEEDOMETER ASSY
Price unavailable
SPEEDOMETER ASSY
13
Yamaha Motors
SPEEDOMETER ASSY4FU-83500-00
Required: 1
SPEEDOMETER ASSY
Price unavailable
SWITCH, HANDLE 4
14
Yamaha Motors
SWITCH, HANDLE 43YF-83972-00
Required: 1
SWITCH, HANDLE 4
Price unavailable
SWITCH, HANDLE 5
15
Yamaha Motors
SWITCH, HANDLE 54BW-83969-00
Required: 1
SWITCH, HANDLE 5
Price unavailable
BRACKET, LICENSE
17
Yamaha Motors
BRACKET, LICENSE4BW-84751-00
Required: 1
BRACKET, LICENSE
Price unavailable
-10%
FRONT REFLECTOR ASSEMBLY
18
Yamaha Motors
FRONT REFLECTOR ASSEMBLY11H-85110-01-00
Required: 2
REFLECTOR ASSY
Cross Ship
Leaves in 2-5 days
$30.99
$27.89
You save $3.10
More details
-10%
Flange Nut
19
Yamaha Motors
Flange Nut95707-05500-00
Required: 2
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
STAY, SETTING
20
Yamaha Motors
STAY, SETTING4GX-8431R-00
Required: 1
STAY, SETTING
Price unavailable
-10%
Front Reflector Assembly
21
Yamaha Motors
Front Reflector Assembly23V-85110-00-00
Required: 2
REFLECTOR ASSY
Cross Ship
Leaves in 2-5 days
$30.99
$27.89
You save $3.10
More details
-10%
Flange Nut
22
Yamaha Motors
Flange Nut95707-05500-00
Required: 2
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
C.D.I. UNIT ASSY
23
Yamaha Motors
C.D.I. UNIT ASSY4GW-85540-01
Required: 1
C.D.I. UNIT ASSY
Price unavailable
C.D.I. UNIT ASSY
24
Yamaha Motors
C.D.I. UNIT ASSY4GX-85540-00
Required: 1
C.D.I. UNIT ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
