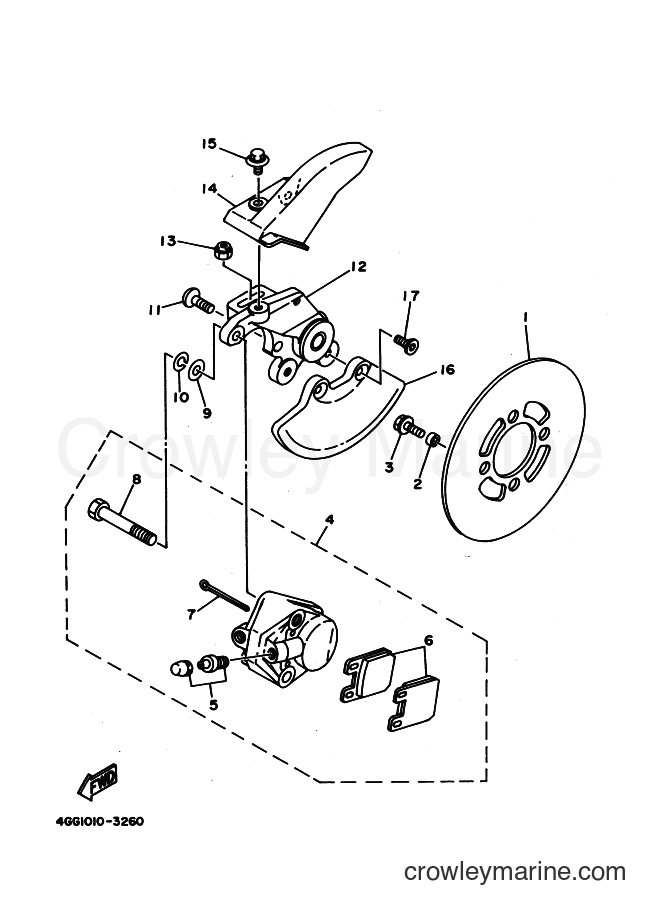

1996 Dirt Bike TY250Z - TY250Z (4GG8) [010] REAR BRAKE CALIPER diagram
![Yamaha Motors TY250Z (4GG8) [010] - REAR BRAKE CALIPER](https://cdn.crowleymarine.com/yamaha/x3uk0IN0.png)
1
Yamaha Motors
DISC, REAR BRAKE 24GG-2582W-00
Required: 1
DISC, REAR BRAKE 2
Price unavailable
2
Yamaha Motors
COLLAR90387-0601K
Required: 4
COLLAR
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$1.26
You save $0.14
4
Yamaha Motors
CALIPER ASSY, REAR 24GG-2580W-00
Required: 1
CALIPER ASSY, REAR 2
Price unavailable
5
Yamaha Motors
. BLEED SCREW KIT4AJ-W0048-00
Required: 1
. BLEED SCREW KIT
Price unavailable
6
Yamaha Motors
. BRAKE PAD KIT4AJ-W0045-00
Required: 1
. BRAKE PAD KIT
Price unavailable
-10%
7
Yamaha Motors
Cotter Pin91490-40045-00
Required: 2
. PIN, COTTER
$8.54
You save $0.95
8
Yamaha Motors
. BOLT98011-08055
Required: 1
. BOLT
Price unavailable
-10%
9
Yamaha Motors
WASHER92907-08600-00
Required: 1
WASHER, PLATE
$2.93
You save $0.32
-10%
10
Yamaha Motors
Spring Washer92907-08100-00
Required: 1
WASHER, SPRING
$8.54
You save $0.95
11
Yamaha Motors
BOLT90109-086F2
Required: 1
BOLT
Price unavailable
12
Yamaha Motors
SUPT. BRKT. ASSY.4GG-25920-00
Required: 1
SUPT. BRKT. ASSY.
Price unavailable
-10%
13
Yamaha Motors
95604-06200-0095607-06200-00
Required: 1
NUT, SELF U-FLANGE
$12.14
You save $1.35
14
Yamaha Motors
COVER 14GG-25715-30
Required: 1
COVER 1
Price unavailable
-10%
15
Yamaha Motors
With Washer Bolt90119-06185-00
Required: 2
BOLT, WITH WASHER
$10.34
You save $1.15
16
Yamaha Motors
PROTECTOR, DISK BRAKE4GG-25717-00
Required: 1
PROTECTOR, DISK BRAKE
Price unavailable
-10%
17
Yamaha Motors
Countersunk Screw90151-06036-00
Required: 2
SCREW, COUNTERSUNK
$9.44
You save $1.05
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
