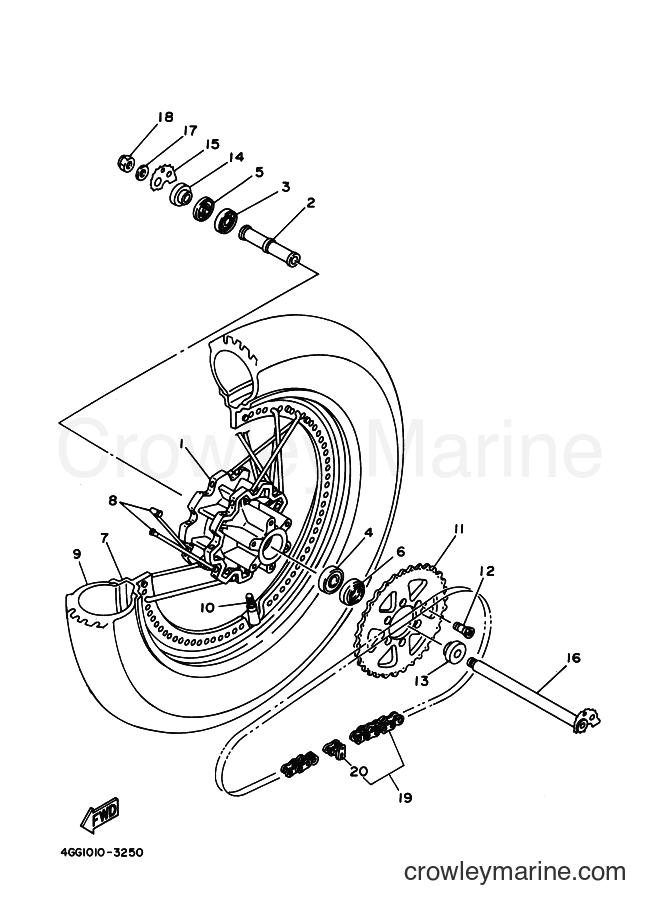

1996 Dirt Bike TY250Z - TY250Z (4GG8) [050] REAR WHEEL diagram
![Yamaha Motors TY250Z (4GG8) [050] - REAR WHEEL](https://cdn.crowleymarine.com/yamaha/3hNzPvrI.png)
1
Yamaha Motors
HUB, REAR4GG-25311-00-35
Required: 1
HUB, REAR
Price unavailable
2
Yamaha Motors
SPACER, BEARING4GG-25317-10
Required: 1
SPACER, BEARING
Price unavailable
-10%
$22.49
You save $2.50
-10%
No longer availableSearch Nationwide Inventory
$18.89
You save $2.10
-10%
$5.39
You save $0.60
-10%
$6.74
You save $0.75
7
Yamaha Motors
RIM94421-18500
Required: 1
RIM
Price unavailable
8
Yamaha Motors
SPOKE SET, REAR4GG-25304-00
Required: 1
SPOKE SET, REAR
Price unavailable
9
Yamaha Motors
TIRE(4.00-18TRIAL COMPE.)*
Required: 1
TIRE(4.00-18TRIAL COMPE.)
Price unavailable
-10%
$16.64
You save $1.85
11
Yamaha Motors
SPROCKET, DRIVEN4GG-25439-01
Required: 1
SPROCKET, DRIVEN
Price unavailable
11
Yamaha Motors
SPROCKET, DRIVEN4GG-25441-00
Required: 1
SPROCKET, DRIVEN
Price unavailable
11
Yamaha Motors
SPROCKET, DRIVEN4GG-25438-00
Required: 1
SPROCKET, DRIVEN
Price unavailable
12
Yamaha Motors
BOLT90109-086F2
Required: 6
BOLT
Price unavailable
13
Yamaha Motors
COLLAR90387-154Y7
Required: 1
COLLAR
Price unavailable
14
Yamaha Motors
COLLAR90387-154Y6
Required: 1
COLLAR
Price unavailable
15
Yamaha Motors
PULLER, CHAIN 14GG-25388-00
Required: 1
PULLER, CHAIN 1
Price unavailable
16
Yamaha Motors
AXLE, WHEEL4GG-25381-00
Required: 1
AXLE, WHEEL
Price unavailable
-10%
17
Yamaha Motors
Plate Washer90201-14740-00
Required: 1
WASHER, PLATE
$8.54
You save $0.95
-50%
18
Yamaha Motors
Self-Locking Nut90185-14070-00
Required: 1
NUT, SELF-LOCKING
In stock
Only 1 remaining
$7.24
You save $7.24
19
Yamaha Motors
CHAIN94561-49098
Required: 1
CHAIN
Price unavailable
20
Yamaha Motors
. JOINT, CHAIN94661-41001
Required: 1
. JOINT, CHAIN
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
