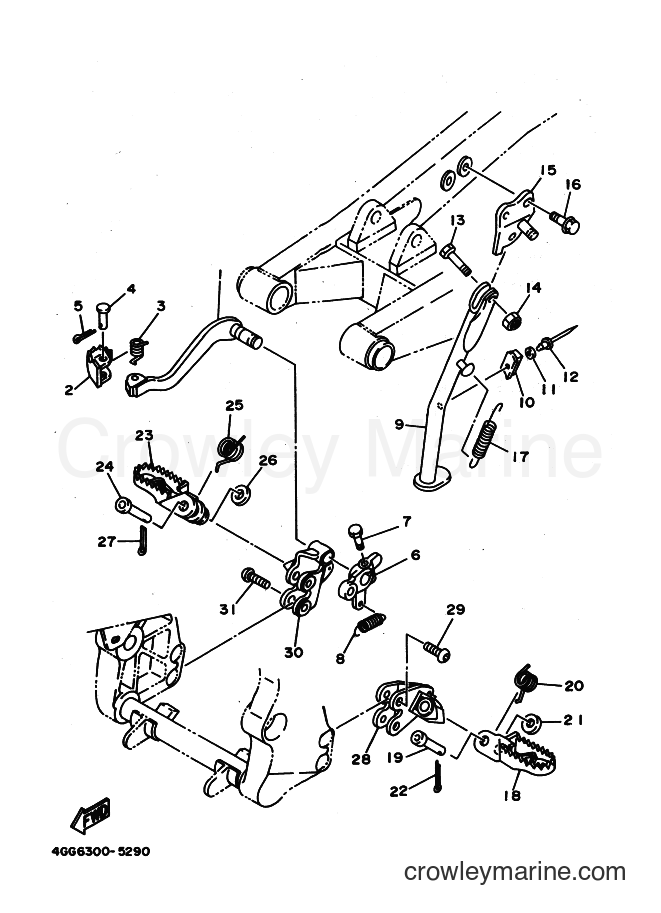

1996 Dirt Bike TY250Z - TY250Z (4GG8) [070] STAND & FOOTREST diagram
![Yamaha Motors TY250Z (4GG8) [070] - STAND & FOOTREST](https://cdn.crowleymarine.com/yamaha/T5lzElkh.png)
1
Yamaha Motors
PEDAL, BRAKE4GG-27211-00
Required: 1
PEDAL, BRAKE
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$13.04
You save $1.45
-10%
3
Yamaha Motors
Torsion Spring90508-14429-00
Required: 1
SPRING, TORSION
No longer availableSearch Nationwide Inventory
$4.05
You save $0.45
-10%
4
Yamaha Motors
CLEVIS PIN91702-06028-00
Required: 1
PIN, CLEVIS
Supersedes: 91701-06028-00
$7.64
You save $0.85
-10%
$1.79
You save $0.20
6
Yamaha Motors
LEVER, BRAKE PEDAL4GG-27252-00
Required: 1
LEVER, BRAKE PEDAL
Price unavailable
-10%
$8.54
You save $0.95
-10%
8
Yamaha Motors
TENSION SPRING90506-14453-00
Required: 1
SPRING, TENSION
No longer availableSearch Nationwide Inventory
$6.29
You save $0.70
-10%
No longer availableSearch Nationwide Inventory
$80.09
You save $8.90
-10%
10
Yamaha Motors
RUBBER DAMPER34K-21485-00-00
Required: 1
DAMPER, RUBBER 1
No longer availableSearch Nationwide Inventory
$27.89
You save $3.10
-10%
$1.62
You save $0.18
12
Yamaha Motors
90267-40080-0090267-40075-00
Required: 1
RIVET, BLIND
Supersedes: 90267-40080-00
$1.87
-10%
13
Yamaha Motors
BOLT90109-08063-00
Required: 1
BOLT
Supersedes: 90109-08666-00
$10.34
You save $1.15
-10%
14
Yamaha Motors
Self-Locking Nut90185-08055-00
Required: 1
NUT, SELF-LOCKING
$9.44
You save $1.05
-10%
15
Yamaha Motors
SIDE STAND BRACKET38V-27321-10-00
Required: 1
BRACKET, SIDE STAND
No longer availableSearch Nationwide Inventory
$21.59
You save $2.40
-10%
16
Yamaha Motors
Washer Based Bolt90105-08287-00
Required: 2
BOLT, WASHER BASED
No longer availableSearch Nationwide Inventory
$1.98
You save $0.22
-10%
17
Yamaha Motors
TENSION SPRING90506-25047-00
Required: 1
SPRING, TENSION
$9.44
You save $1.05
-10%
No longer availableSearch Nationwide Inventory
$46.79
You save $5.20
19
Yamaha Motors
PIN, CLEVIS91701-10042
Required: 1
PIN, CLEVIS
Price unavailable
-10%
20
Yamaha Motors
SPRING,TORSION 46Y90508-20634-00
Required: 1
SPRING, TORSION
No longer availableSearch Nationwide Inventory
$4.94
You save $0.55
-50%
21
Yamaha Motors
Plate Washer90201-10119-00
Required: 1
WASHER, PLATE
In stock
Only 2 remaining
$0.50
You save $0.50
-15%
22
Yamaha Motors
PIN. COTTER91490-30025-00
Required: 1
PIN, COTTER
Supersedes: 91401-30020-00
In stock
Only 1 remaining
$3.39
You save $0.60
-10%
No longer availableSearch Nationwide Inventory
$46.79
You save $5.20
24
Yamaha Motors
PIN, CLEVIS91701-10042
Required: 1
PIN, CLEVIS
Price unavailable
-10%
25
Yamaha Motors
SPRING,TORSION 46Y90508-20635-00
Required: 1
SPRING, TORSION
No longer availableSearch Nationwide Inventory
$4.94
You save $0.55
-50%
26
Yamaha Motors
Plate Washer90201-10119-00
Required: 1
WASHER, PLATE
In stock
Only 2 remaining
$0.50
You save $0.50
-15%
27
Yamaha Motors
PIN. COTTER91490-30025-00
Required: 1
PIN, COTTER
Supersedes: 91401-30020-00
In stock
Only 1 remaining
$3.39
You save $0.60
-10%
28
Yamaha Motors
BRACKET FOOTREST4GG-27412-01-00
Required: 1
BRACKET, FOOTREST 1
No longer availableSearch Nationwide Inventory
$262.79
You save $29.20
-10%
29
Yamaha Motors
Button Bolt92017-08025-00
Required: 2
BOLT, BUTTON HEAD
$8.54
You save $0.95
-10%
30
Yamaha Motors
BRACKET FOOTREST4GG-27422-01-00
Required: 1
BRACKET, FOOTREST 2
No longer availableSearch Nationwide Inventory
$260.99
You save $29.00
-10%
31
Yamaha Motors
Button Bolt92017-08025-00
Required: 2
BOLT, BUTTON HEAD
$8.54
You save $0.95
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
