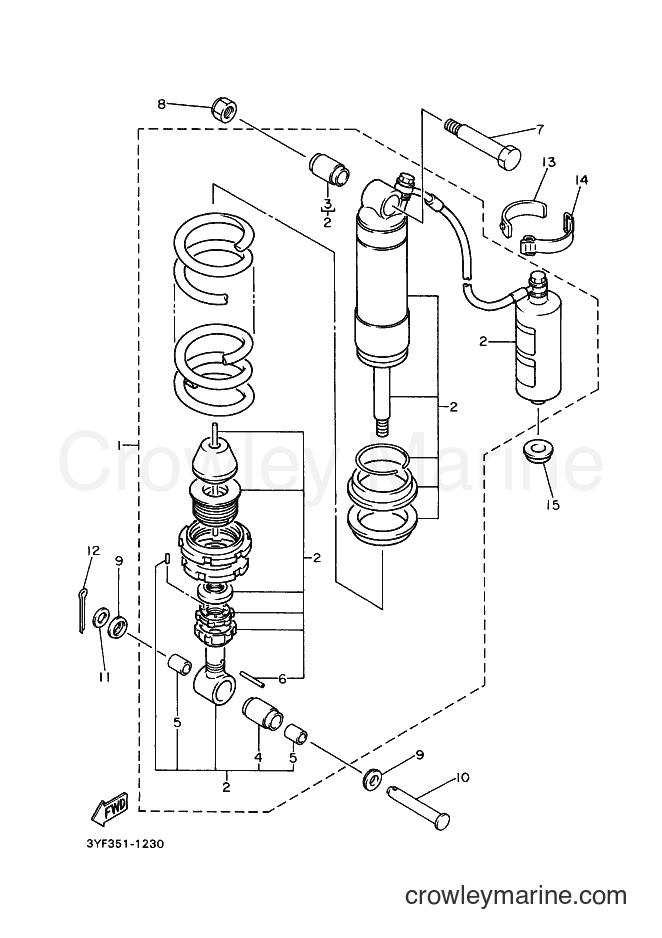

1996 Dirt Bike XTZ660 - XTZ660 (4MY3) [070] REAR SUSPENSION diagram
![Yamaha Motors XTZ660 (4MY3) [070] - REAR SUSPENSION](https://cdn.crowleymarine.com/yamaha/YUCEIhZ5.png)
1
Yamaha Motors
SHOCK ABSORBER ASSY, REAR3YF-22210-21-33
Required: 1
SHOCK ABSORBER ASSY, REAR
Price unavailable
2
Yamaha Motors
. DAMPER SUB ASSY3YF-22201-02
Required: 1
. DAMPER SUB ASSY
Price unavailable
3
Yamaha Motors
. . BUSH, REAR SHOCK ABSORBER3YF-22216-00
Required: 1
. . BUSH, REAR SHOCK ABSORBER
Price unavailable
-10%
4
Yamaha Motors
Shock Absorber Bushing - Lower34L-22226-01-00
Required: 1
. . BUSH, SHOCK ABSORBER LOWER
No longer availableSearch Nationwide Inventory
$19.79
You save $2.20
-10%
5
Yamaha Motors
SOLID BUSH90380-14130-00
Required: 2
. BUSH, SOLID
$5.84
You save $0.65
6
Yamaha Motors
. . PIN, DOWEL93604-16132
Required: 1
. . PIN, DOWEL
Price unavailable
7
Yamaha Motors
BOLT90101-12742
Required: 1
BOLT
Price unavailable
-10%
$3.74
You save $0.42
-10%
9
Yamaha Motors
THRUST COVER34L-22129-00-00
Required: 2
COVER, THRUST 2
No longer availableSearch Nationwide Inventory
$14.39
You save $1.60
-10%
No longer availableSearch Nationwide Inventory
$10.34
You save $1.15
-10%
$1.44
You save $0.16
-15%
12
Yamaha Motors
Cotter Pin91490-30030-00
Required: 1
PIN, COTTER
Supersedes: 91401-30030-00
In stock
5+ in stock
$7.22
You save $1.27
-10%
13
Yamaha Motors
Sub Tank Damper24X-22261-00-00
Required: 1
DAMPER, SUB TANK
$9.89
You save $1.10
-10%
14
Yamaha Motors
Sub Tank Holder24X-22262-00-00
Required: 1
HOLDER, SUB TANK
No longer availableSearch Nationwide Inventory
$17.54
You save $1.95
-10%
No longer availableSearch Nationwide Inventory
$6.74
You save $0.75
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
